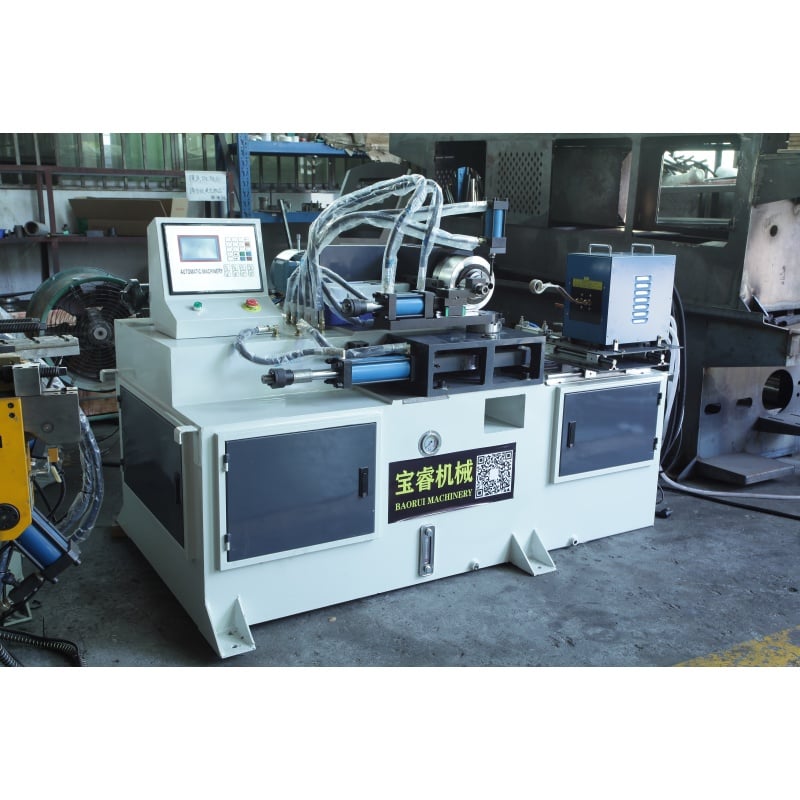

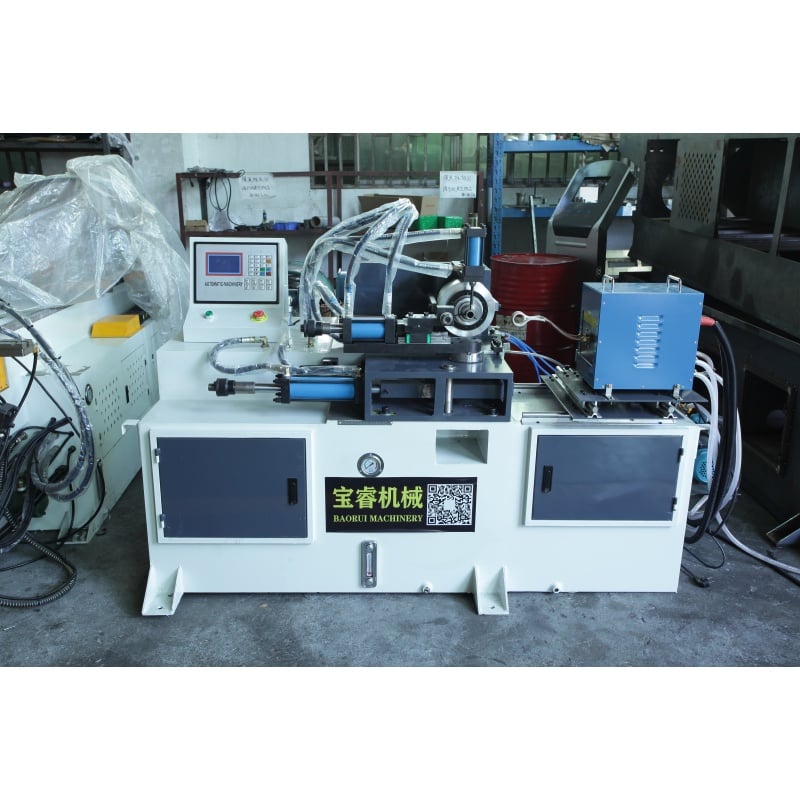

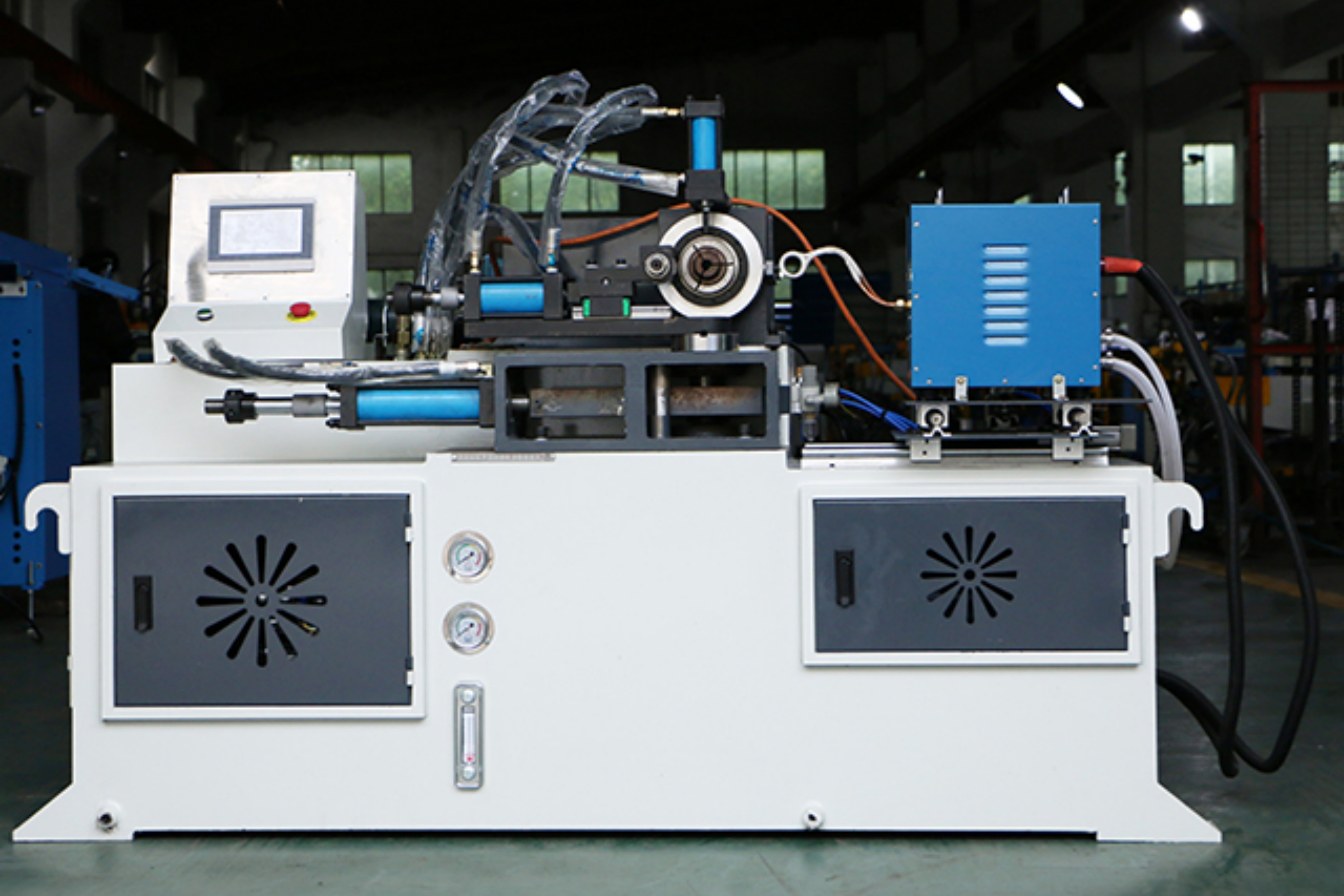

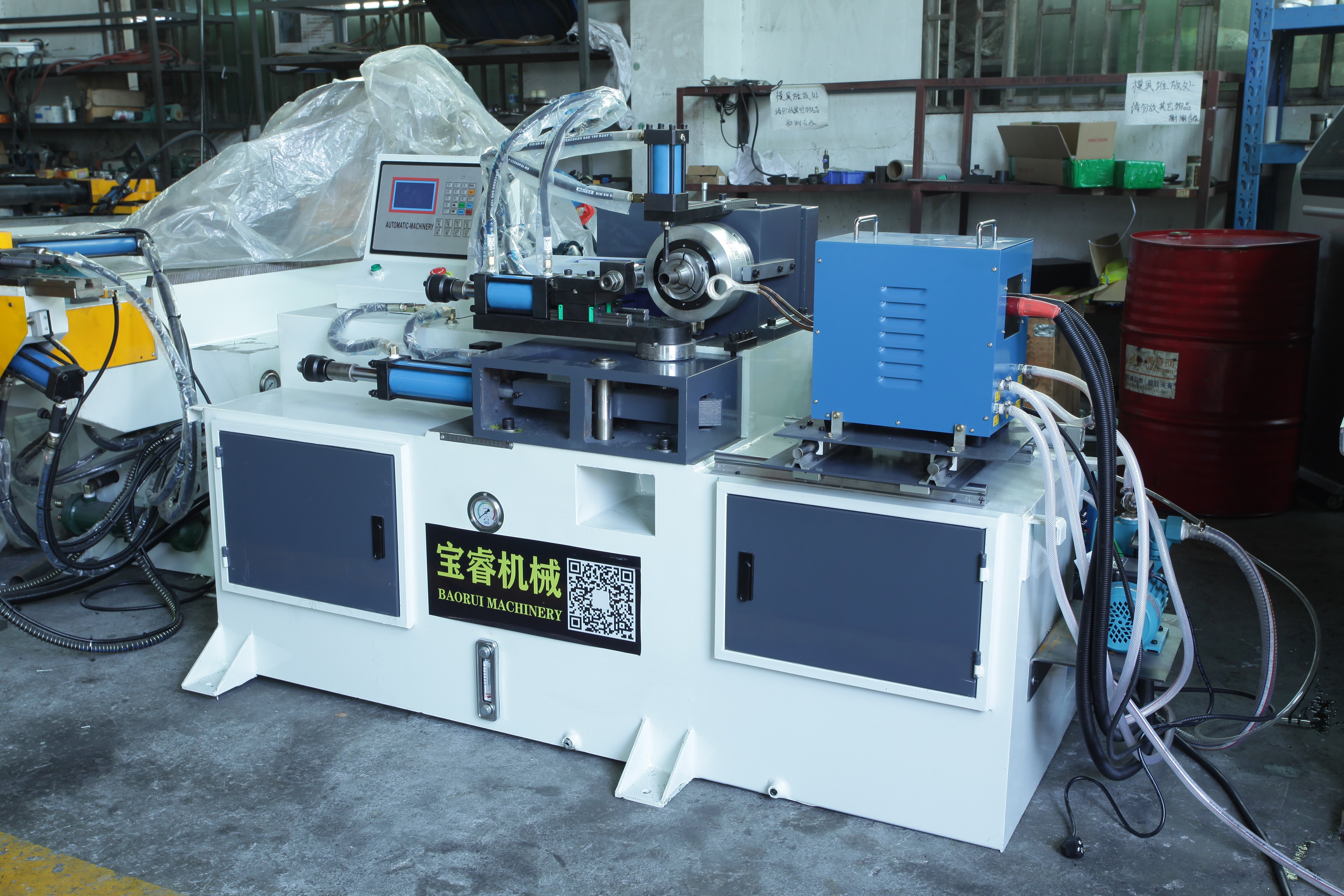

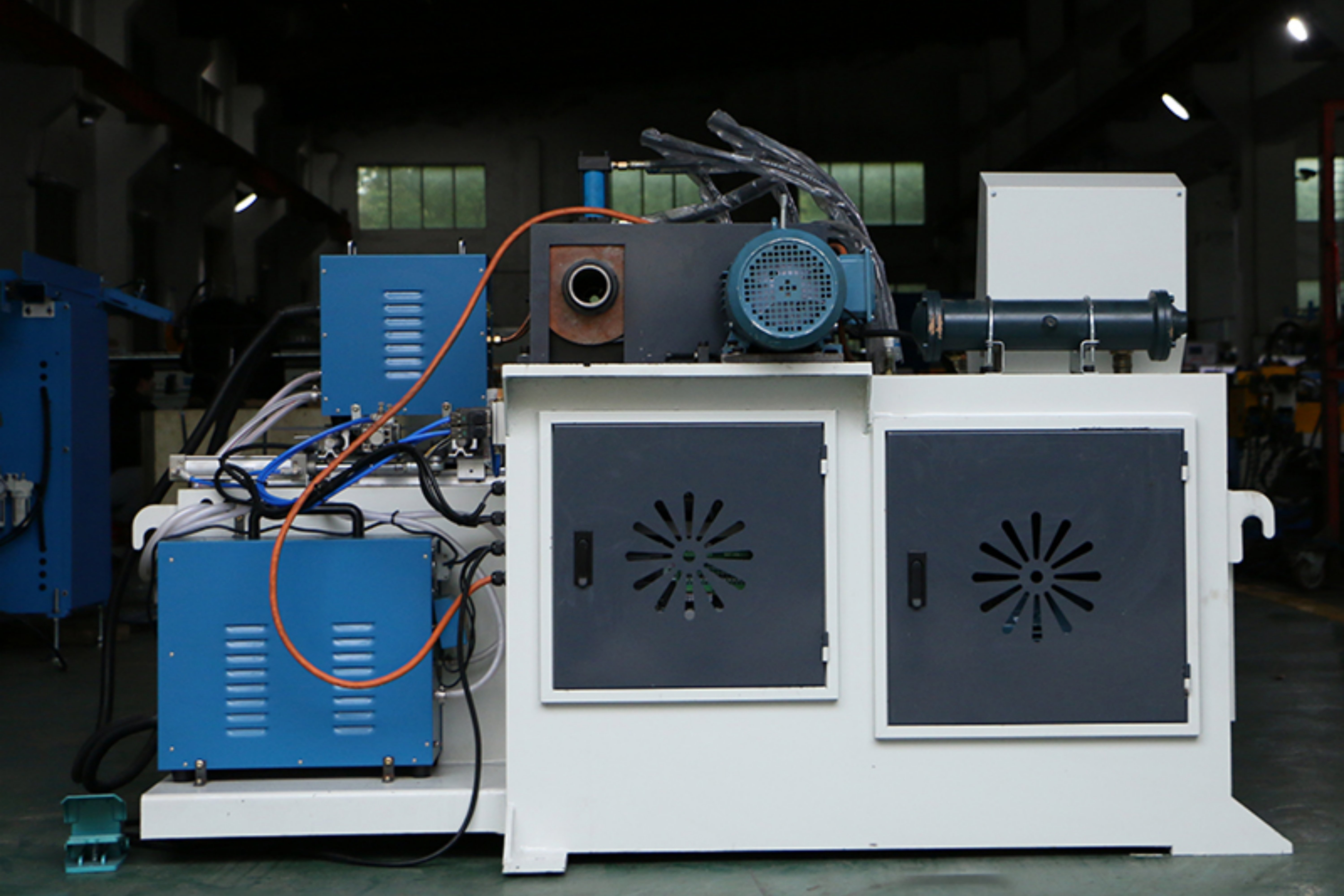

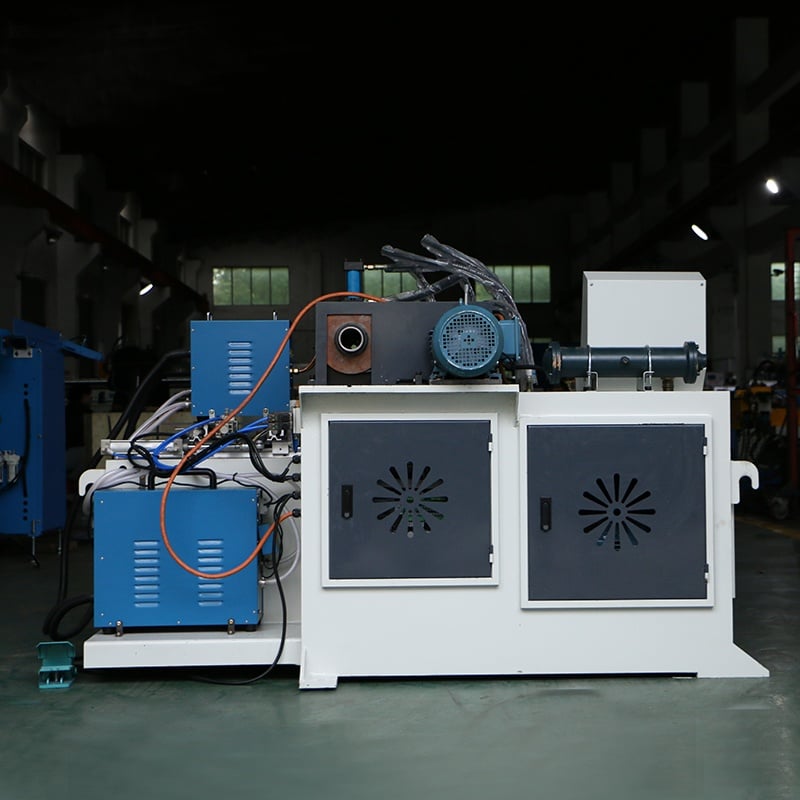

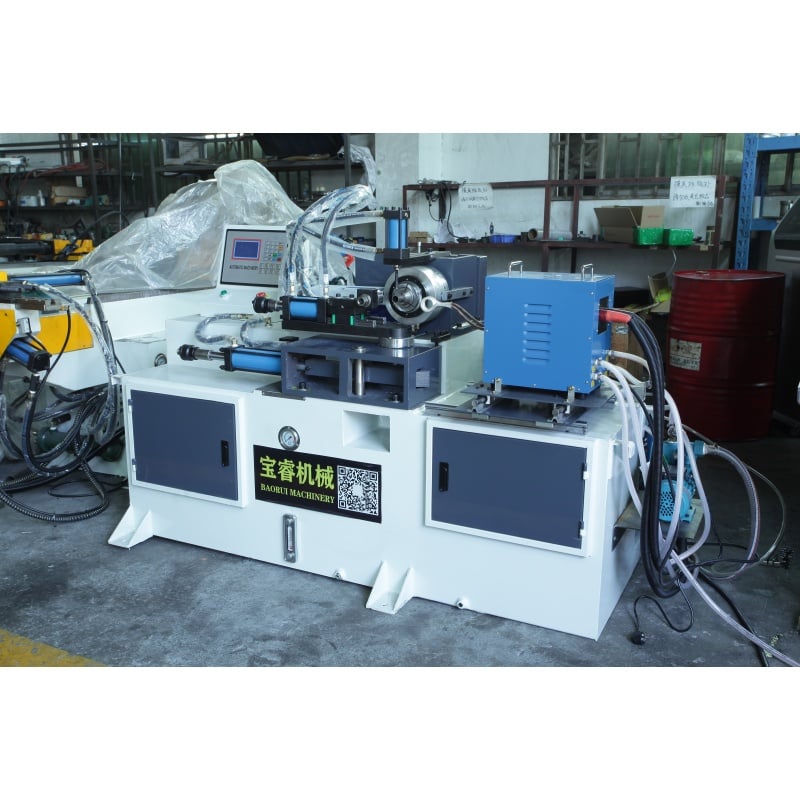

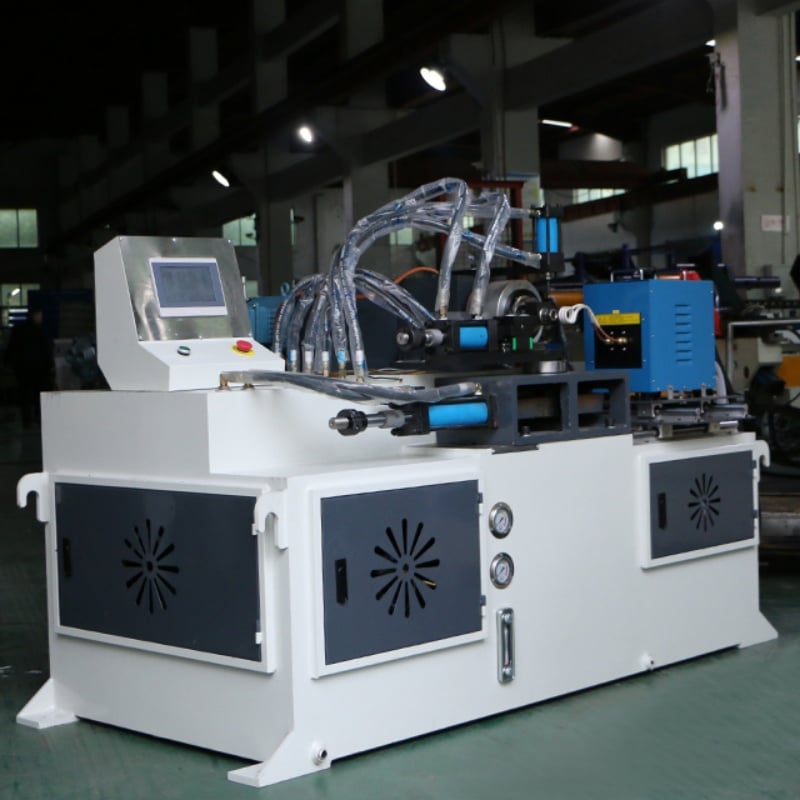

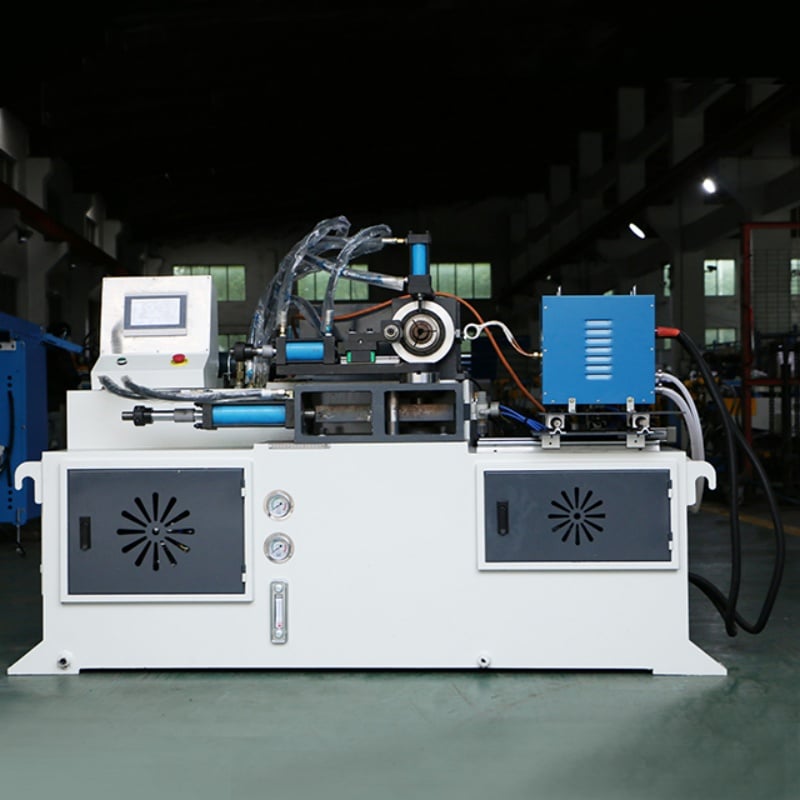

Pipe End Sealing Machine Türkiye

Product Description
NC Model Unit 40NC
Hydraulic motor power KW 3
Rotary motor power KW 3

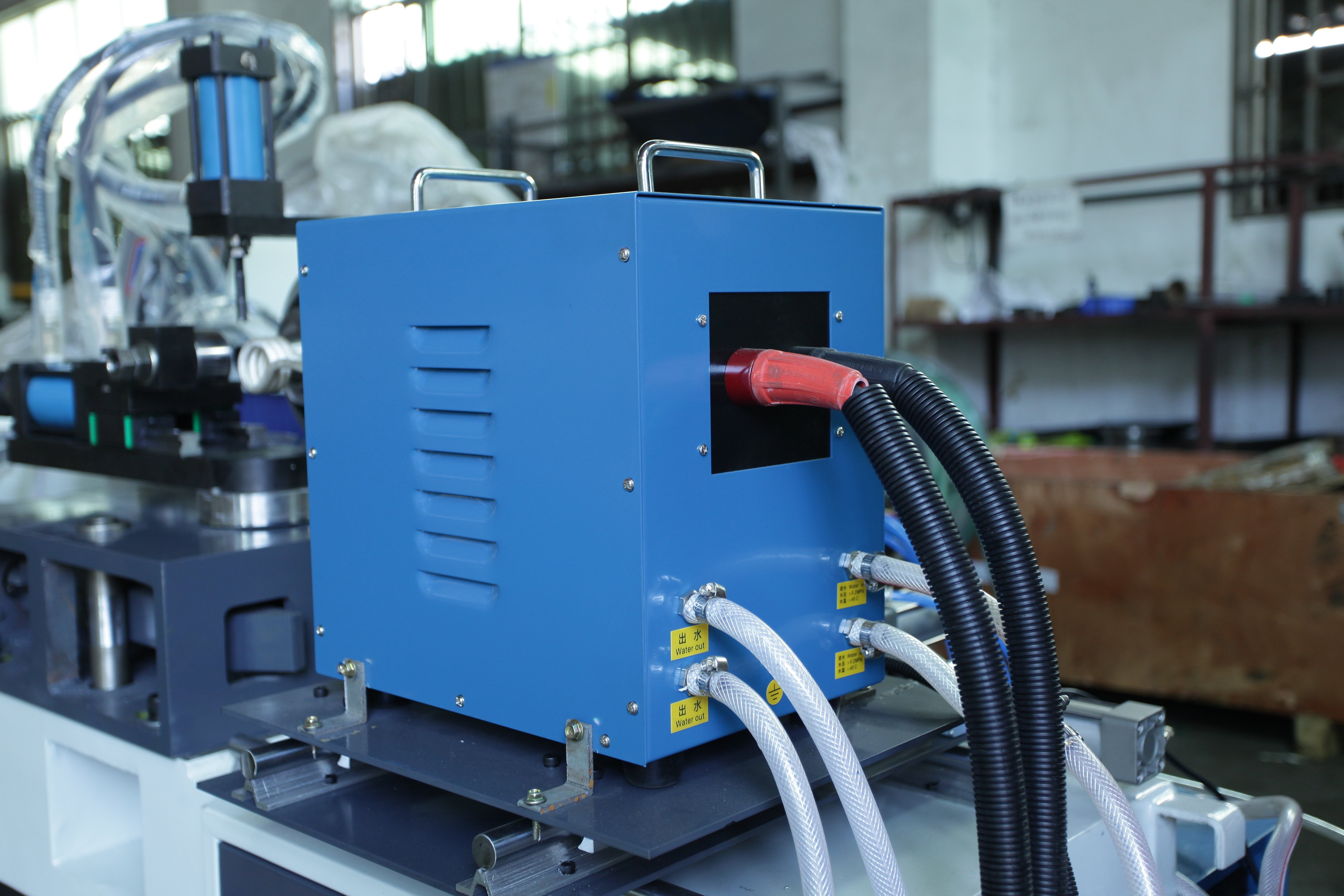

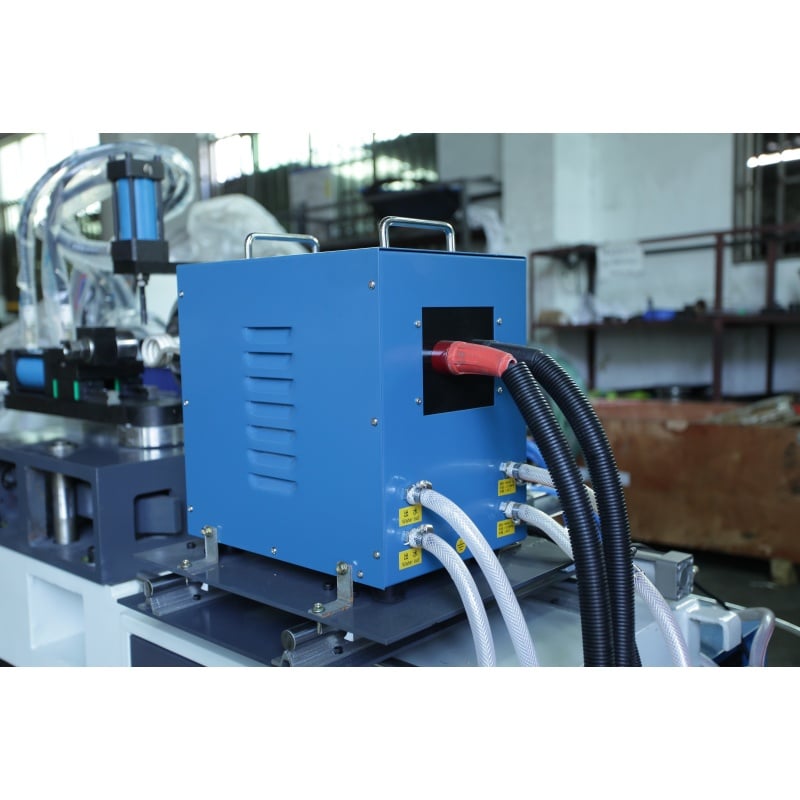

High frequency machine KW 15

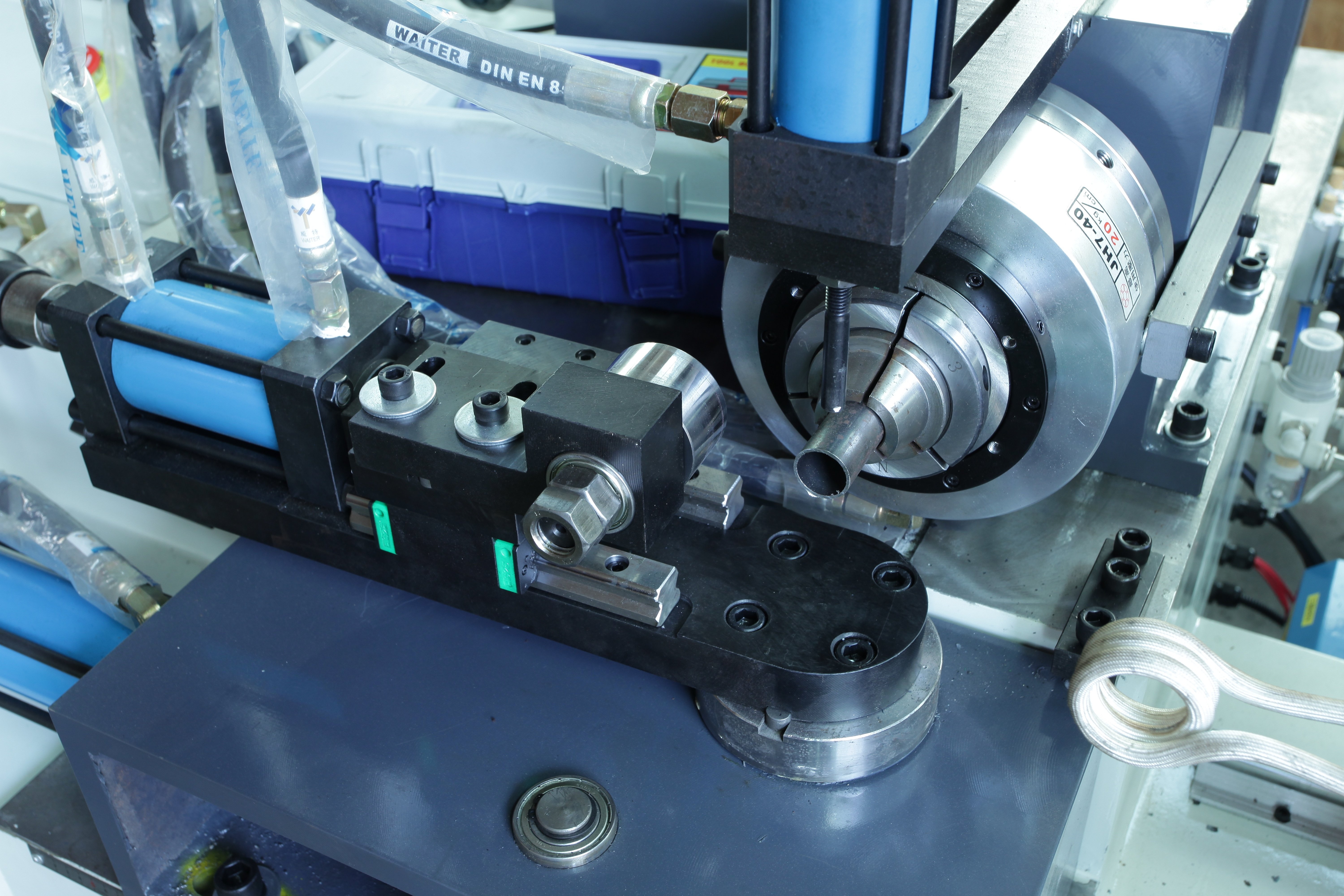

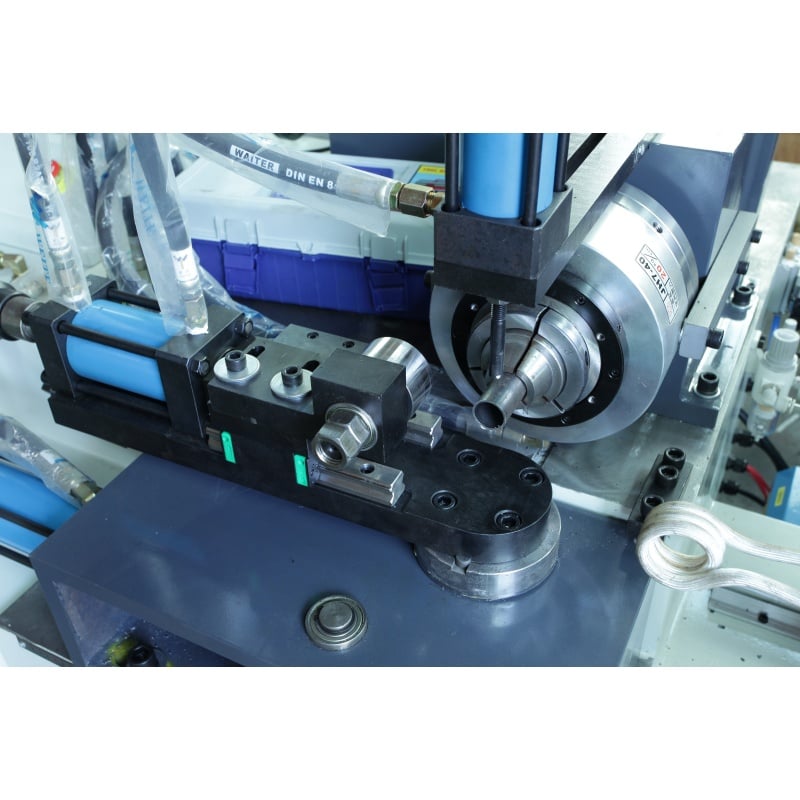

Hydraulic chuck 32
Maximum applicable pipe mm ¢32*2.0
Maximum hydraulic pressure MPa 12
Dimension mm 2000*820*900
Weight Kg 600

1, The use of hot spinning technology for iron, stainless steel, aluminium, copper and other tubular products such as the front end of the closing and rolling groove.
2, A good consistency of the effect of moulding, the size of the hole left after the closure of any adjustment.
It can also be processed with end face sealing, and can achieve the sealing requirement without welding.

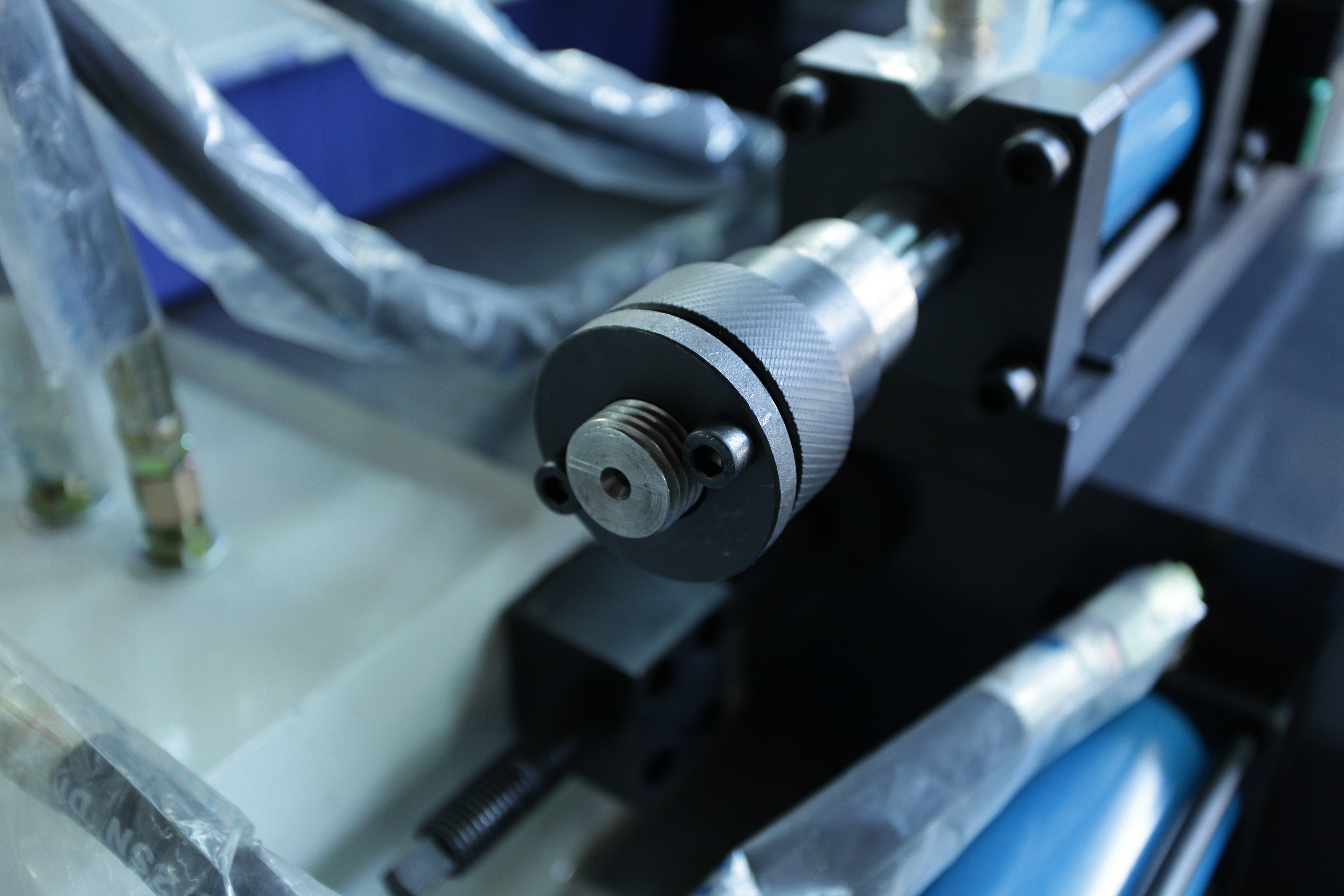

3、Replacement of corresponding moulds can make a variety of shape effects, easy to adjust.

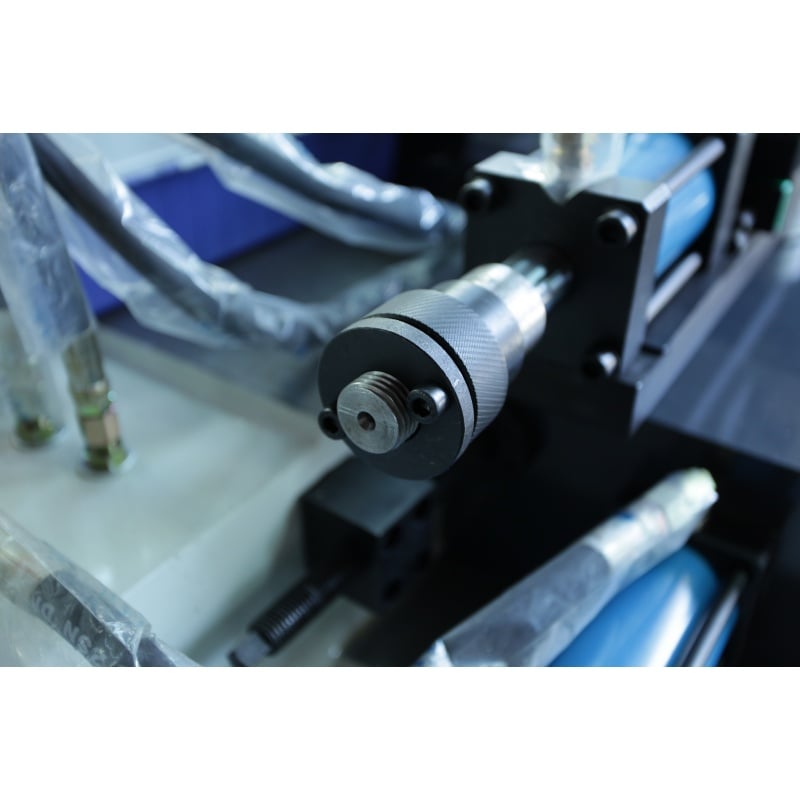

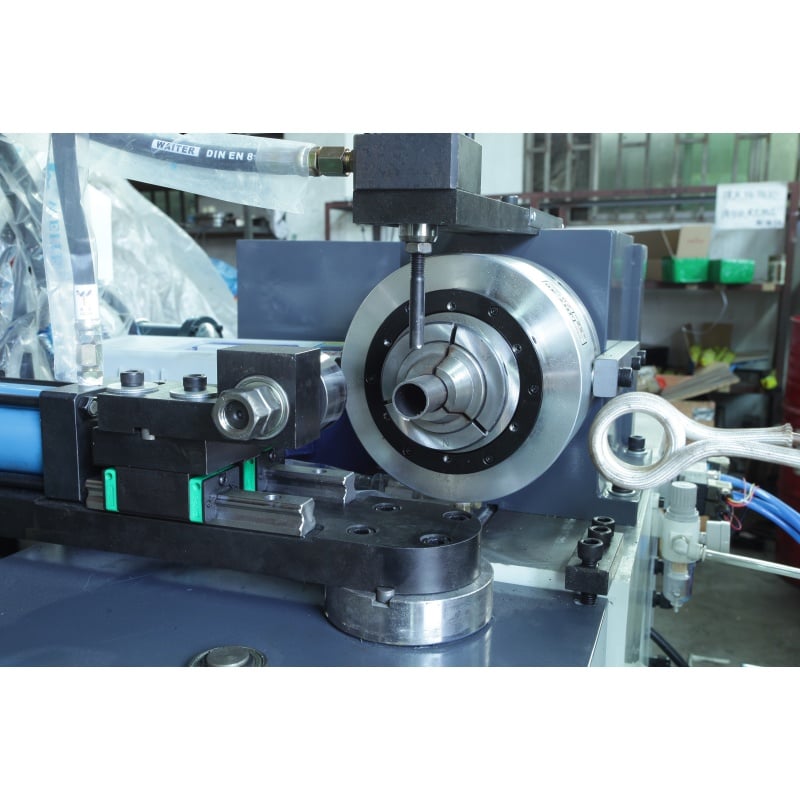

4、Imported hydraulic chuck automatic clamping, mould steel mould high temperature resistance and wear resistance.
5、Materials are generally positioned at the back end, the use of auxiliary tools to position the front end, so that the closure is more accurate not due to changes in the length of the cut pipe.
6、Regularly add lubricant to improve processing efficiency and extend the life of the mould.
7、Applicable products: rubbish mandrel moulding, gas spring, heat pipe, chemical pipe, small gas cylinder, furniture products.
8、Stable performance, no need of professional technology to operate;
9、Automatic operation, only need to manually pick up the material (automatic heating) other are automatically completed by the machine, a moulding.
