| Specification Name | Unit | TM-40 |
| Maximum applicable fittings | mm | Φ40×2.0mm |
| Maximum working stroke | mm | 100 |
| Hydraulic force | Mpa | 4.5 |
| Working speed | 100mm in 3-4sec | |
| Machine weight | kg | 1100 |
| Machine size | mm | 2000x550x1300 |

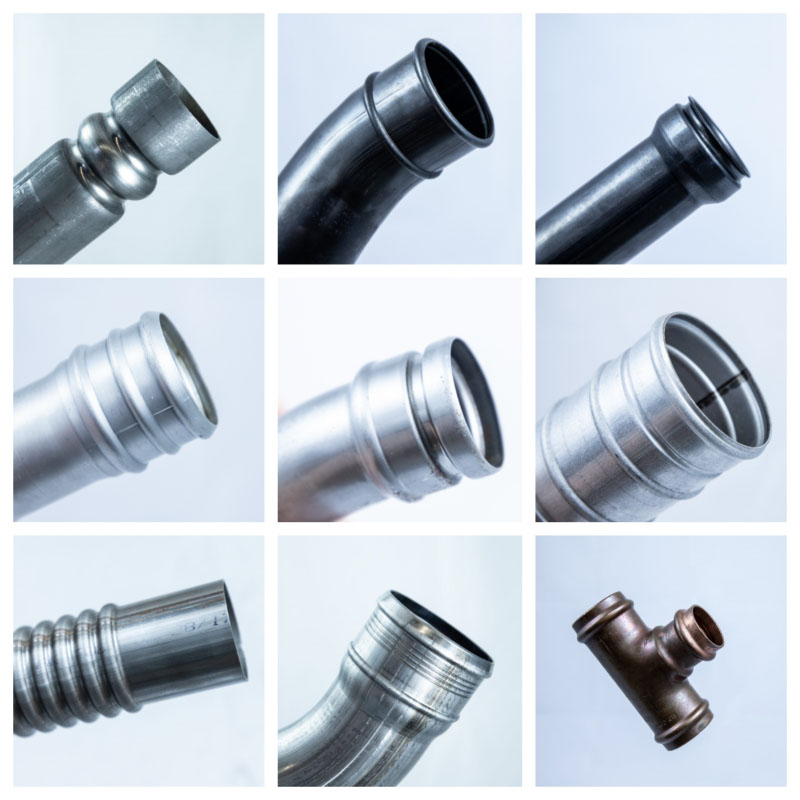

The machine supports tube shrinking, tube expanding and pipe end forming. Different tube-end shapes can be produced by changing the corresponding tooling.

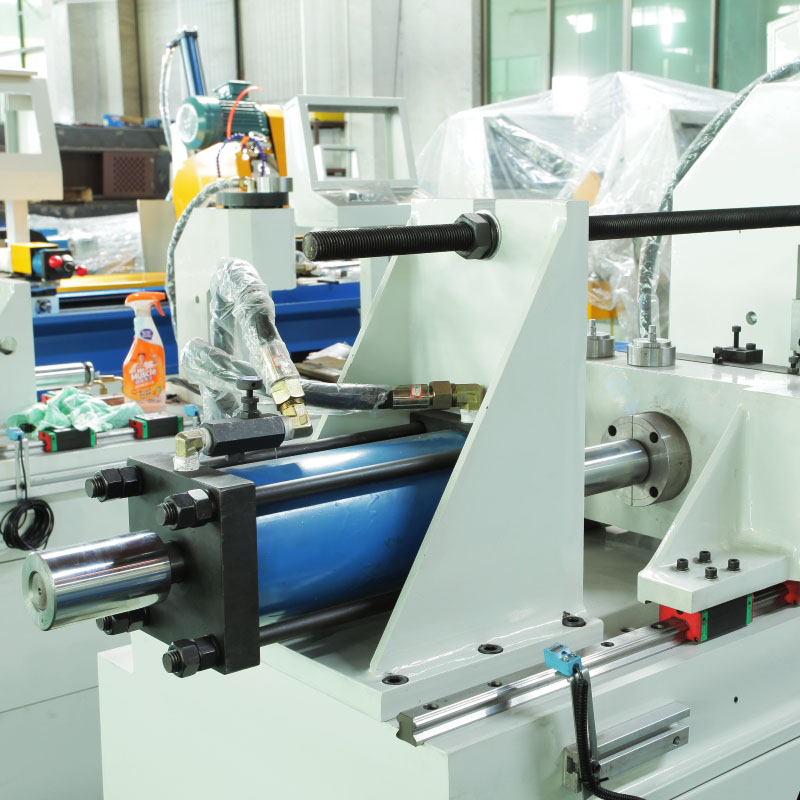

The hydraulic system provides forming power and maintains stable processing pressure for continuous metal tube forming.

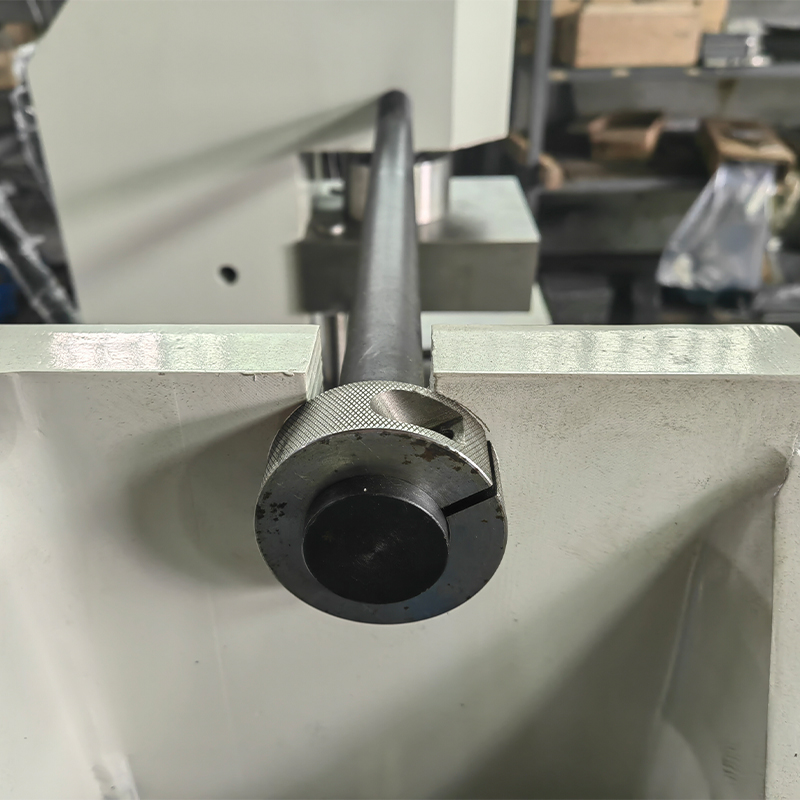

The hydraulic clamping mechanism securely holds the tube, reducing slipping and positional movement during forming and improving consistency.
The machine uses a microcomputer control system with Chinese-English display and human-machine interaction, making process setup and operation more convenient.
The corresponding tooling can be changed according to different product requirements, allowing flexible adjustment of tube-end forming results and expanding the machine’s application range.
To address the challenges of inconsistent forming precision and the difficulty of maintaining ±0.1mm repeatability in high-volume aluminum tube processing for a leading automotive HVAC supplier in Southeast Asia, Baorui Machinery deployed the TM-40 automated solution driven by precision linear guides; featuring advanced hydraulic control, the system enables high-efficiency forming for fittings up to Φ40mm in seconds. This solution ensures mirror-like precision for end sealing surfaces without ovality—perfectly meeting the automotive industry's strict leak-proof standards—while significantly boosting line efficiency and helping the client secure its position as a core regional supplier for automotive thermal management systems.
