CNC pipe bending machine

Video Feedback
Product Feature

Baorui tube bending machines are designed not only to bend tubes, but also to help manufacturers build a stable, accurate and repeatable forming process. Whether you need standard tube components, complex 3D parts or an integrated production line, we can recommend a suitable machine and tooling solution based on your drawings and production requirements.

1.Versatile Compatibility with Different Tubes and Complex Parts

Baorui tube bending machines can be configured according to tube material, diameter, wall thickness, bending angle, centerline radius and product drawings. They are suitable for round, square and rectangular tubes in a wide range of applications.

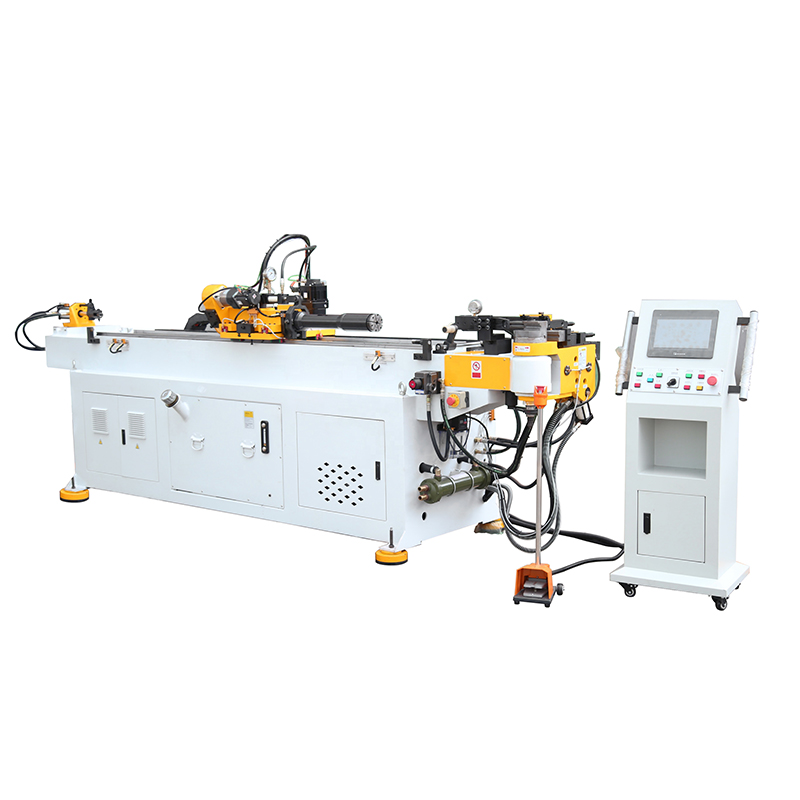

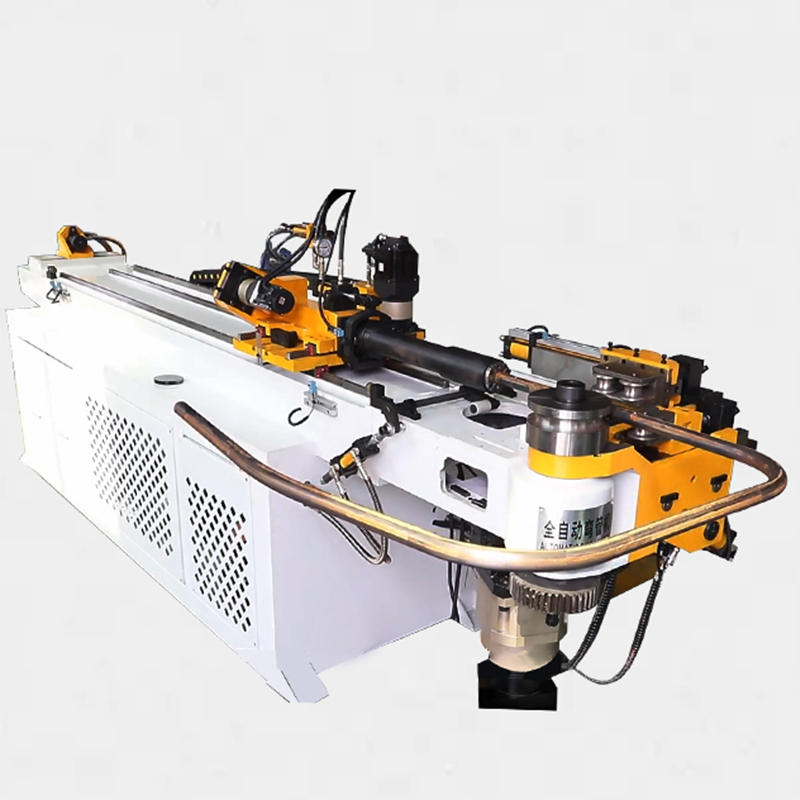

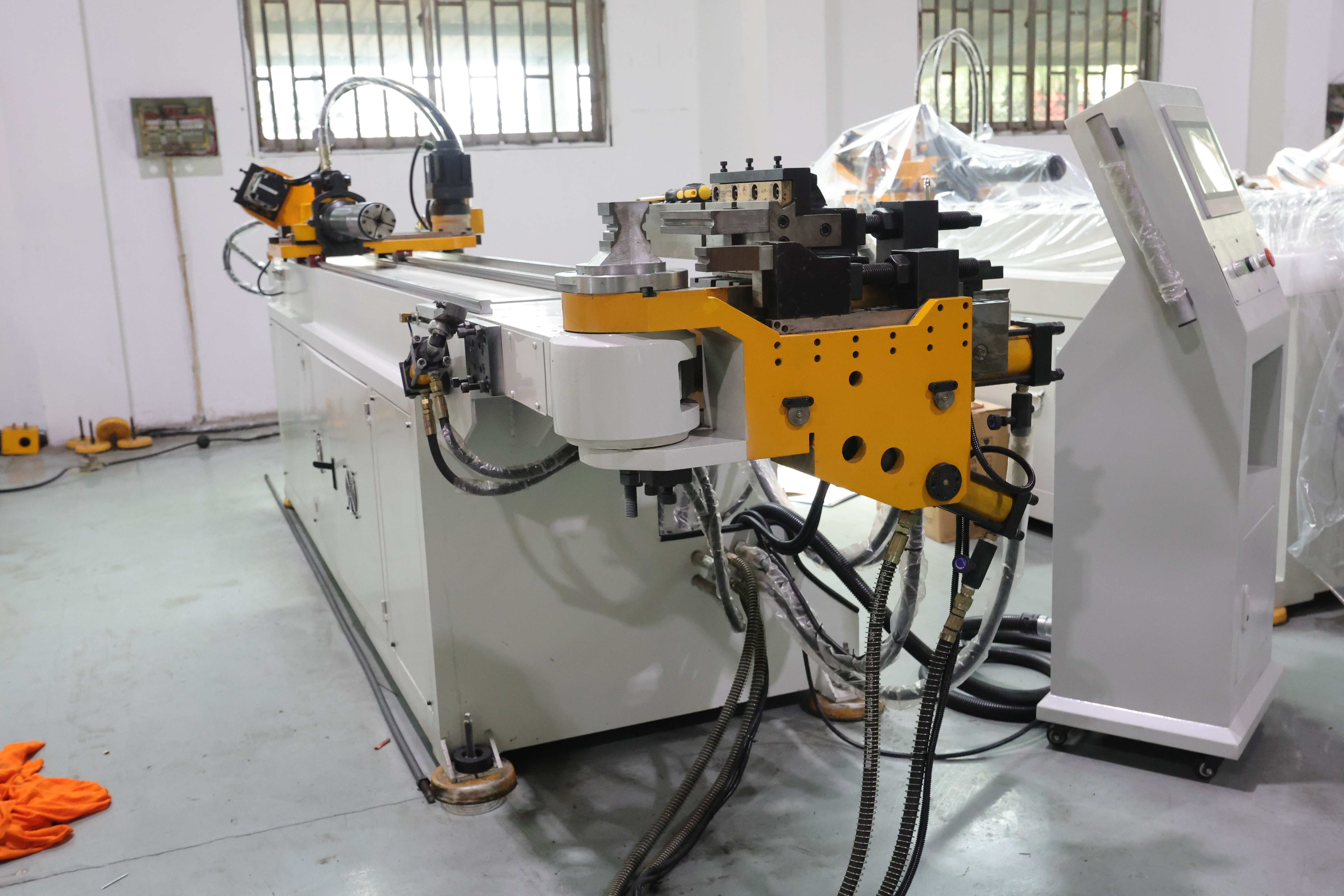

4(3c72eacdbc).jpg 75NC Semi-Automatic Pipe Bending Machine5.jpg

2.Consistent Results for Batch Production

Bending programs and process parameters can be saved, recalled and backed up, helping maintain consistent dimensions and bending angles across different production batches.


4.Application-Matched Tooling and Mandrel Configuration

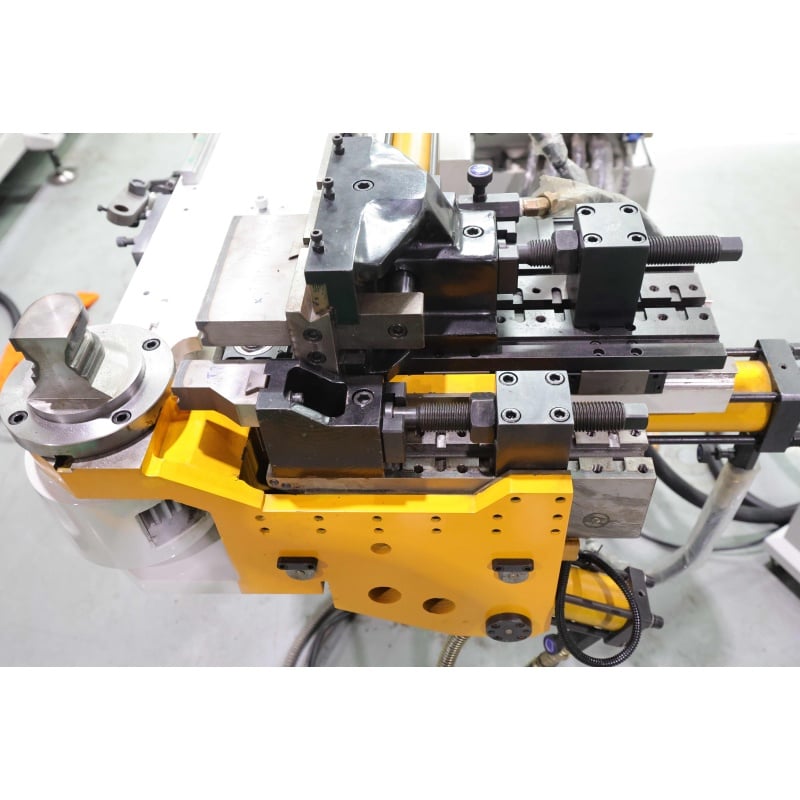

Bending dies, clamping dies, pressure dies, guide dies, mandrels and wiper dies can be configured according to tube wall thickness, material and bending radius to improve forming quality, especially for thin-wall and tight-radius bending.


5.Auxiliary Push Bending and Slow Mandrel Retraction

Selected models can be equipped with auxiliary push bending, powerful boosting and slow mandrel retraction functions to reduce wrinkles, deformation and surface defects during the bending process.

Baorui tube bending machines are designed not only to bend tubes, but also to help manufacturers build a stable, accurate and repeatable forming process. Whether you need standard tube components, complex 3D parts or an integrated production line, we can recommend a suitable machine and tooling solution based on your drawings and production requirements.

6.Efficient Tooling Setup and Fault Diagnosis

Single-step debugging, springback compensation, program simulation and fault messages help operators identify forming problems, optimize process parameters and reduce setup time for new tube parts.

Baorui tube bending machines are designed not only to bend tubes, but also to help manufacturers build a stable, accurate and repeatable forming process. Whether you need standard tube components, complex 3D parts or an integrated production line, we can recommend a suitable machine and tooling solution based on your drawings and production requirements.

7.Multi-Axis Capability and Automation Line Integration

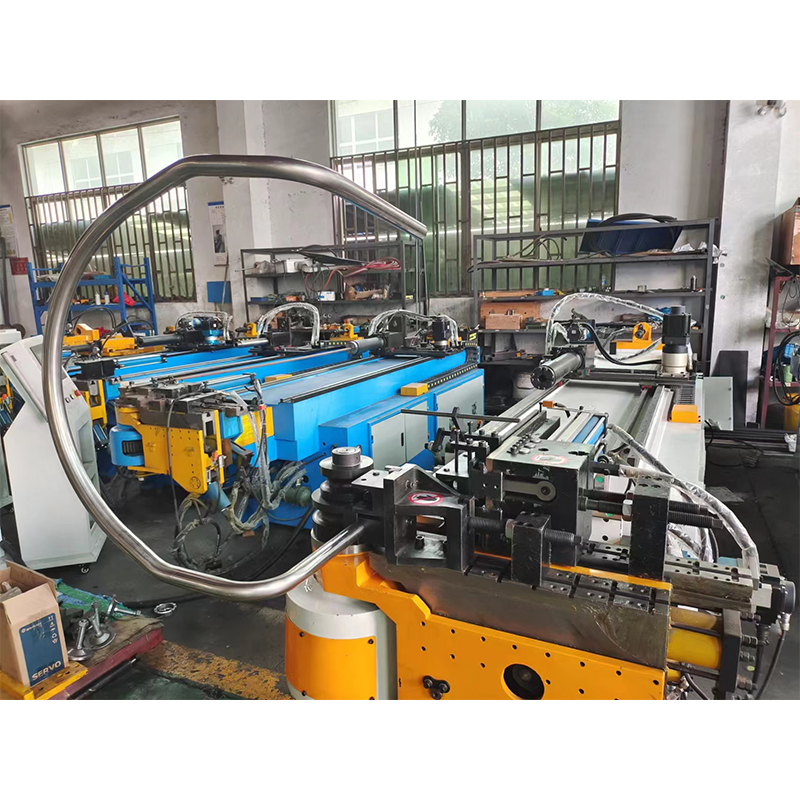

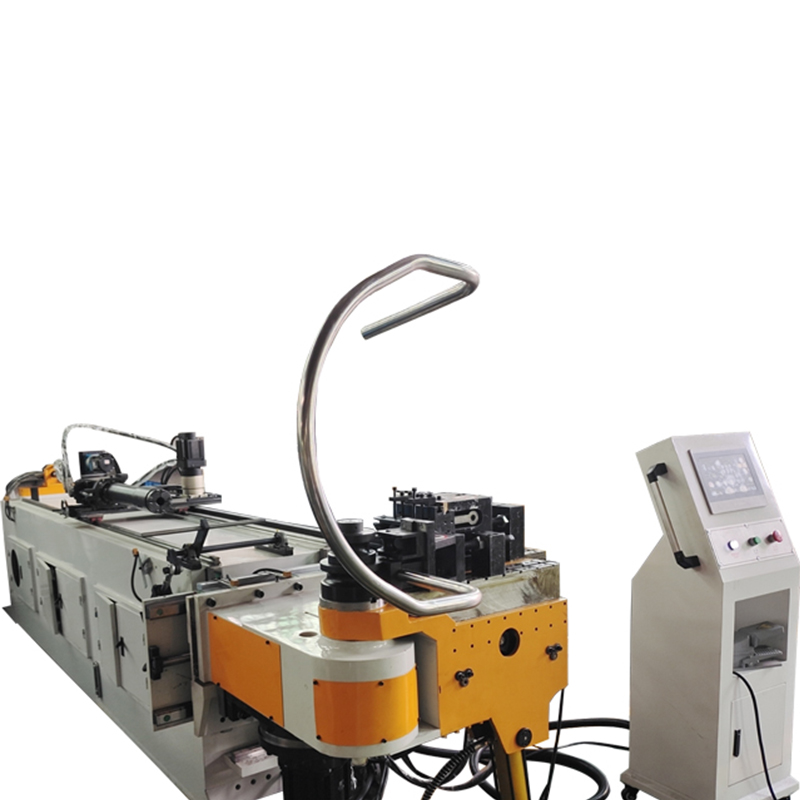

In addition to standard NC and CNC tube benders, Baorui provides multi-axis, multi-stack, push-bending, rolling, left-and-right bending and robotic production line solutions for automotive components, seat structures, cooling pipes and other complex tube parts.


pipe bending 1.png pipe bening3.png pipe bending 2.png

8.Complete Technical Support and After-Sales Service

From drawing review, machine selection and tooling design to trial bending, commissioning, operator training and remote technical support, Baorui provides complete tube bending solutions throughout the project.

customer (4).png

Customer Reviews

Our fully automatic pipe bending series showcases its core manufacturing capabilities across diverse sectors through exceptional flexible processing and precise 3D forming technology: in the Indian shipbuilding industry, it resolved the challenge of rapid prefabrication for complex piping in confined spaces, significantly boosting installation efficiency, while in Thailand's precision component sector, its ultra-precision servo system enabled damage-free processing of thin-walled tubes with superior repeatability. Now widely implemented in automotive, aerospace, medical, and chemical industries, this solution continues to deliver industrial-grade, high-efficiency tube processing power to global clients.

  • Customer Reviews(10db1c578c).png
  • Customer Reviews2 (1).jpg
Parameter
Item     Name Unit Data Remark
1 Max bending capacity mm Φ50×3t
2 Max bending radius mm 250 Can according to customer’s requirement
3 Min bending radius mm Depend on diameter
4 Max feeding length mm 3000 Can according to customer’s requirement
5 Max bending degree Degree 190
6 Control Panel

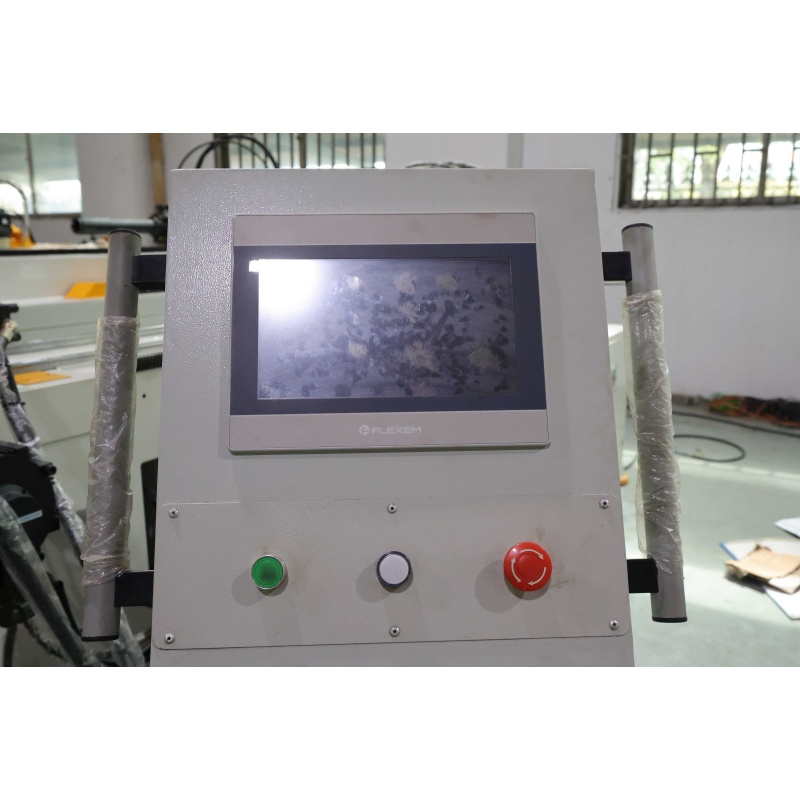

PLC+touch screen
7 Bending unit  piece 16
8 Working speed bending speed Deg/sec 85
Rotary speed Deg/sec 200
Feeding speed mm/sec 1000
9 Accuracy feeding mm ±0.1
rotary Degree ±0.1
bending Degree ±0.1
10 Rotary servo motor power W 750 Japan Mitsubishi
11 Feeding servo motor power Kw 1 Japan Mitsubishi
13 The accuracy of roller mm Max 70 Can according to customer’s requirement
14 Oil motor power Kw 5.5
15 Max storage units group 1000 Can enlarge according to requirement
16 Max pressure MPa 12 Adjustable

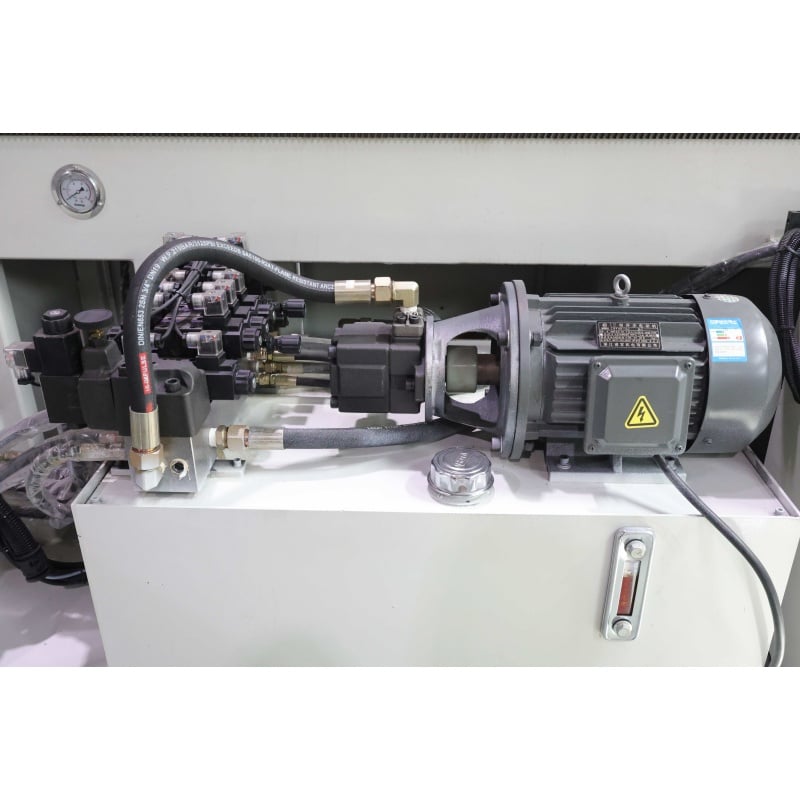

17 Hydraulic control system
Magnetic exchange valve Japan Yuken
18 Oil tank L 190


Bao Rui CNC pipe bending machine: Transforming Automated Tube Forming and Smart Fabrication Trends

Bao Rui presents a CNC pipe bending machine engineered to lead automated tube forming across diverse industries. The Bao Rui CNC pipe bending machine integrates precision controls, robust mechanics, and intelligent software to redefine automated tube forming on production floors adopting smart fabrication trends. The CNC pipe bending machine from Bao Rui addresses demanding applications where accuracy, repeatability, and throughput determine competitiveness, and it advances industrial automation news with tangible performance gains.



Product features and technical design

The Bao Rui CNC pipe bending machine offers a rigid frame and high-torque servo drive system designed to compensate for springback and material variation inherent in tube processing. The CNC pipe bending machine employs multi-axis synchronization and closed-loop feedback to ensure accurate bend angles, consistent radii, and minimized scrap in automated tube forming. An intuitive human-machine interface and offline programming modules shorten setup time while facilitating complex part programs that reflect smart fabrication trends. The machine features quick-change tooling, modular mandrels, and integrated clamp-and-hold systems to adapt rapidly to different diameters and wall thicknesses for automated tube forming.



Core technological innovations

At the heart of the Bao Rui CNC pipe bending machine is advanced motion control firmware linked with a 3D simulation system. The firmware performs real-time compensation, collision detection, and path optimization to avoid common pitfalls in tube bending. The 3D simulation verifies the bend sequence, tooling clearances, and secondary operations before any physical trial, which is essential for efficient automated tube forming workflows and establishing new benchmarks in smart fabrication trends. The CNC pipe bending machine’s servo-driven mandrel feed and synchronized rotary axis reduce cycle time and extend tooling life, delivering measurable improvements featured in industrial automation news.



Application versatility and industry fit

The Bao Rui CNC pipe bending machine serves multiple sectors including automotive, furniture, HVAC, shipbuilding, rail, and architectural metalwork. For automotive chassis and exhaust systems, the CNC pipe bending machine delivers the repeatability and accuracy required for high-volume automated tube forming. In furniture and architectural applications, the machine supports complex geometries and aesthetic bends that reflect smart fabrication trends



Automation and integration advantages

Integration into production lines is straightforward with the Bao Rui CNC pipe bending machine due to standardized communication protocols, IO expansion, and robotic pick-and-place compatibility to enable fully automated tube forming cells. Remote diagnostics, predictive maintenance algorithms, and data logging align the CNC pipe bending machine with smart fabrication trends and Industry 4.0 initiatives widely discussed in industrial automation news. The machine’s flexible configuration supports single-piece flow as well as batch production and allows customers to scale their automated tube forming capabilities as demand evolves.



Precision, quality control, and material handling

Material handling features on the Bao Rui CNC pipe bending machine, including automatic feeding, length detection, and anti-vibration fixtures, reduce human error and enhance throughput for automated tube forming. Inline measurement systems, vision checks, and statistical process control modules enable consistent inspection, ensuring the CNC pipe bending machine meets tight tolerances and regulatory requirements. These capabilities position Bao Rui at the forefront of smart fabrication trends where traceability and quality assurance are essential.



Customization and turnkey solutions

Zhangjiagang Baorui Machinery Co., Ltd. provides a turnkey approach that pairs the Bao Rui CNC pipe bending machine with customized tooling, end-of-line jigging, and process optimization services to streamline automated tube forming adoption. The company’s design team leverages a 3D software simulation system to prototype bending sequences and tooling arrangements for each customer application



Operational efficiency and cost benefits

By reducing setup times, minimizing trial-and-error, and achieving high first-pass yield, the Bao Rui CNC pipe bending machine lowers per-part production costs in automated tube forming operations. Energy-efficient drives, predictive maintenance, and extended tooling life further reduce total cost of ownership. Many customers report significant reductions in labor and rework while accelerating throughput—outcomes that underscore the role of the CNC pipe bending machine in advancing smart fabrication trends and frequently appear in industrial automation news case studies.



Safety and operator ergonomics

The Bao Rui CNC pipe bending machine complies with international safety standards and integrates safeguarding, light curtains, and emergency-stop logic to protect operators in automated tube forming environments. Ergonomic loading systems and remote HMI operation reduce operator fatigue and exposure to repetitive tasks, reinforcing the CNC pipe bending machine’s contribution to safe, sustainable manufacturing consistent with smart fabrication trends.



Deployment, support, and training

Zhangjiagang Baorui offers on-site installation, training, and after-sales service to ensure customers achieve maximum uptime with the Bao Rui CNC pipe bending machine. The company’s support network helps manufacturers transition to automated tube forming processes and adopt smart fabrication trends through hands-on training, preventive maintenance programs, and software updates that keep the CNC pipe bending machine aligned with evolving industry standards commonly reported in industrial automation news.
