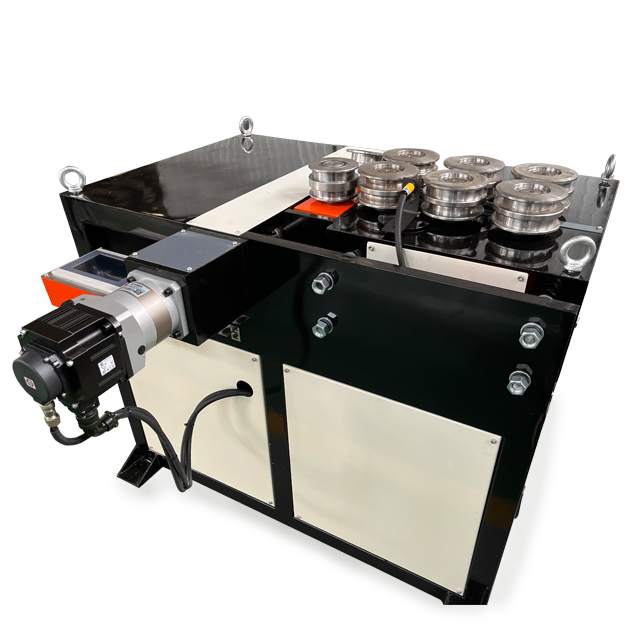

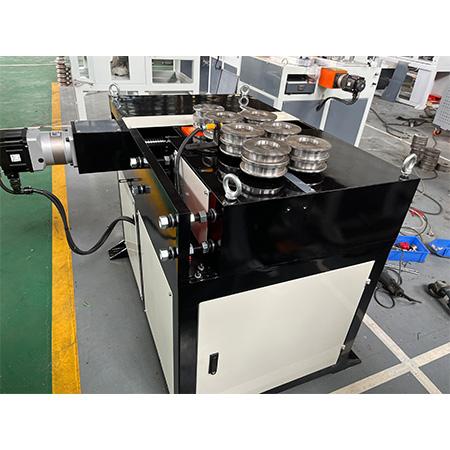

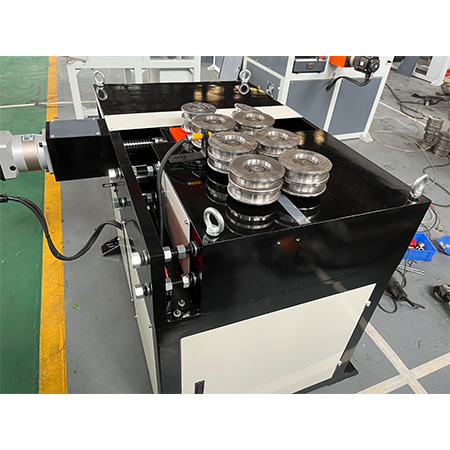

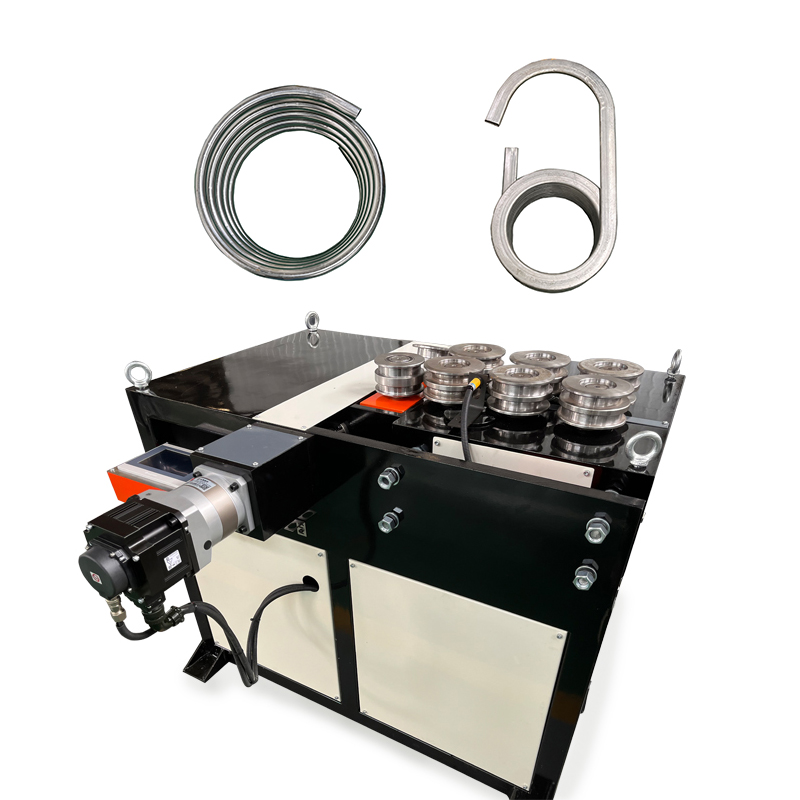

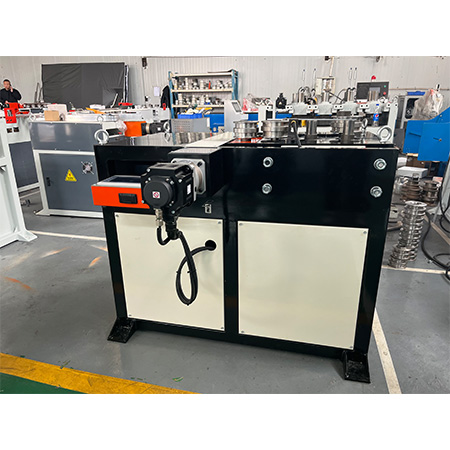

Rolling bending machine

Product Description

Item	Name	Unit	GY-40CNC	GY-60CNC	GY-80NC	GY-100NC
1	Max bending capability	mm	Ø40x2.5	Ø60x3.5	Ø80*5	Ø100*6.5
2	Rounded diameter	mm	≥10D	≥10D	≥10D	≥10D
3	Rounding speed	mm/s	0-180	0-150	0-100	0-80
4	Die diameter	mm	Ø100-150	Ø150-200	Ø180-240	Ø280-400
5	Hydraulic motor	kw	4	5.5	7.5	11
6	oil pump capacity	L	17	19	23	31
7	System pressure	mpa	12	12	14	14

Product Feature

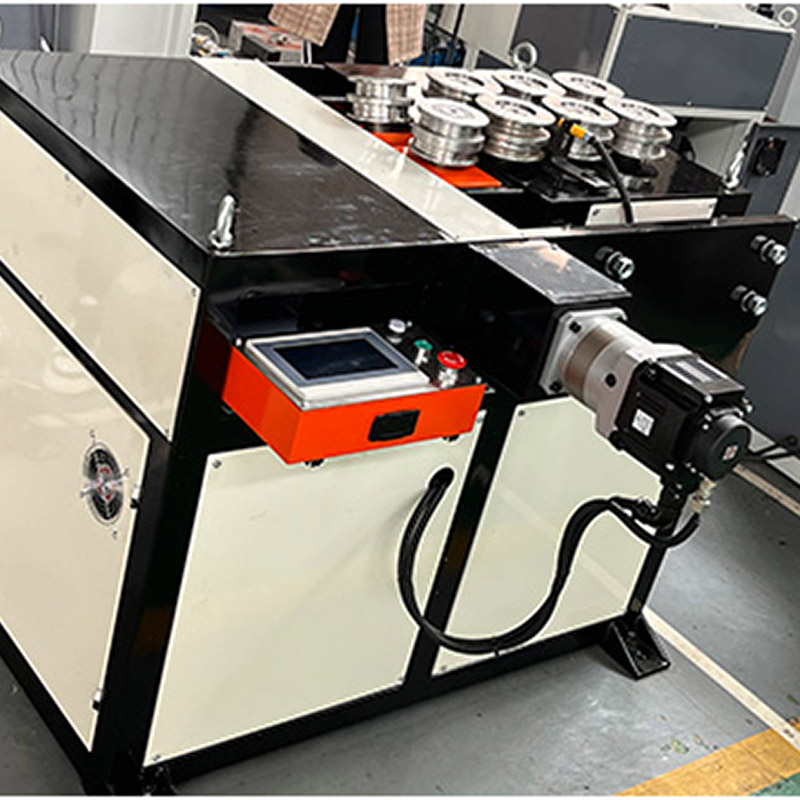

The GY Series Tube Rolling Machine is designed for forming round tubes and other curved tube components, especially for applications requiring large bending radii. The series covers multiple tube diameter and wall thickness ranges, while servo feeding or hydraulic feeding can be selected according to the customer’s requirements for accuracy, automation and budget. Customized tooling is available for different materials and product designs, including stainless steel, aluminum alloy and copper tubes. The simple operating interface and multi-language display also help operators learn and use the machine more easily.

1.Multiple Tube Sizes for Different Applications

The GY series covers a wide range of tube sizes, including GY-40CNC, GY-60CNC, GY-80CNC and GY-100CNC models, meeting different tube diameter and wall thickness requirements.

2.Designed for Large-Radius Tube Bending

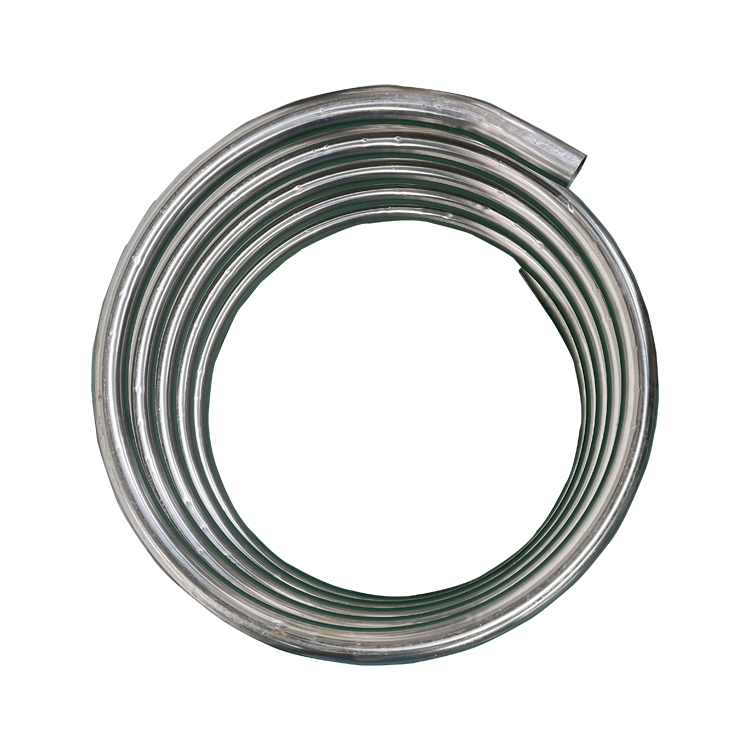

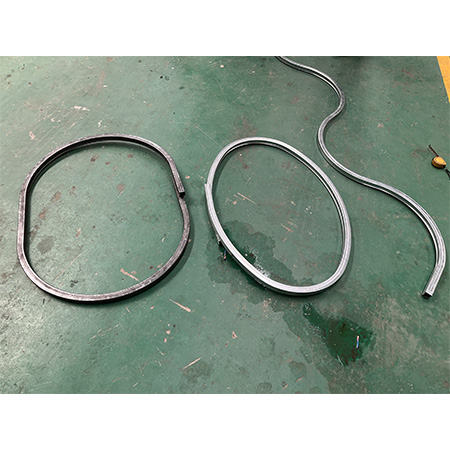

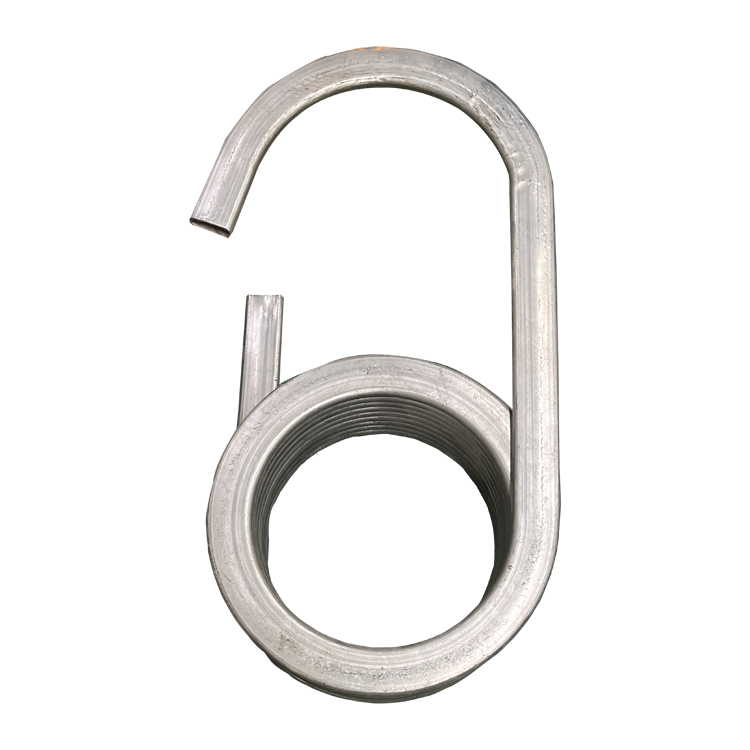

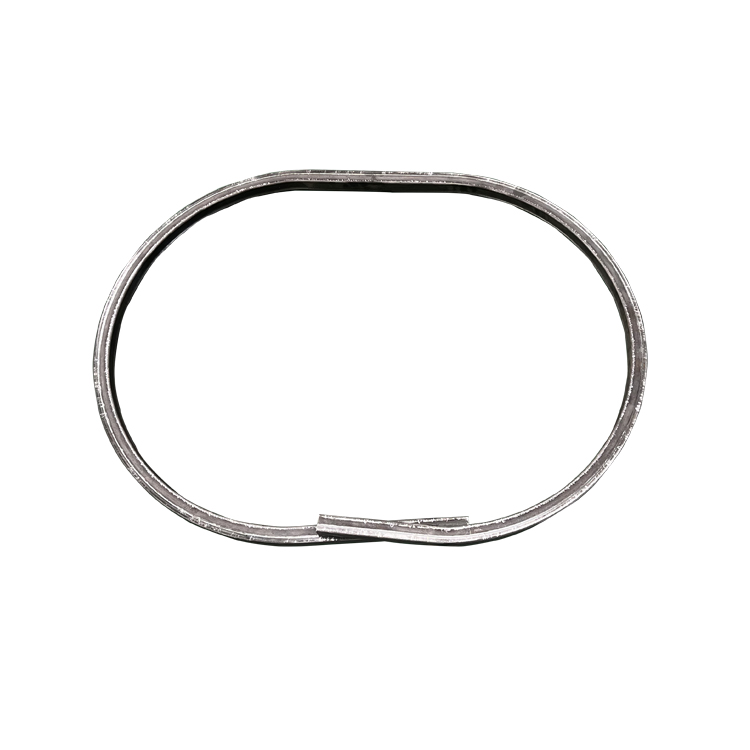

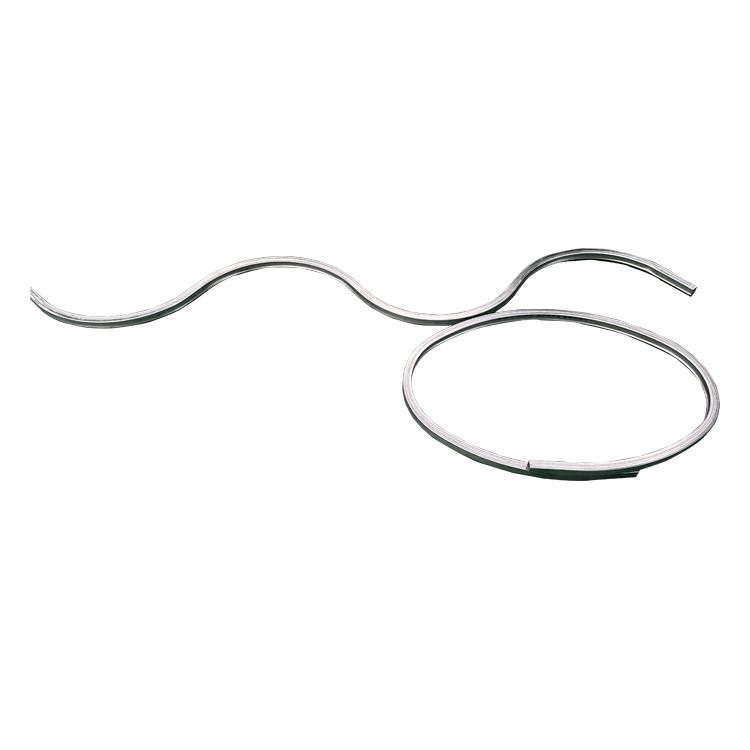

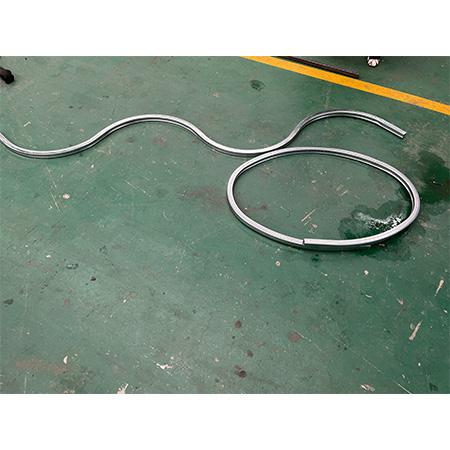

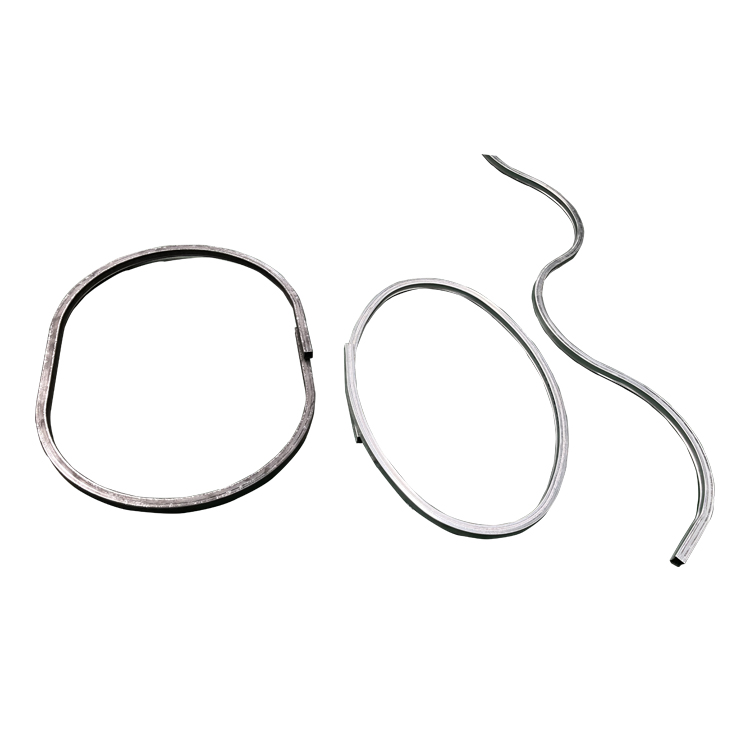

The machine is designed for round tubes and other curved tube components, making it suitable for structural parts and tubing products requiring large bending radii.

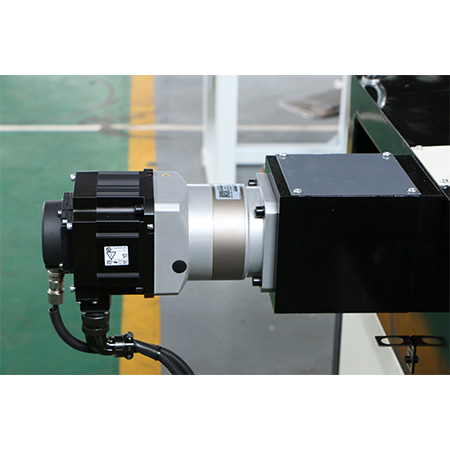

3.Flexible Feeding Options

Servo feeding or hydraulic feeding can be selected according to the customer’s requirements for processing accuracy, automation level and budget.

4.Custom Tooling for Different Tube Materials

Customized tooling is available for different tube materials and product designs, including stainless steel tubes, aluminum alloy tubes and copper tubes.

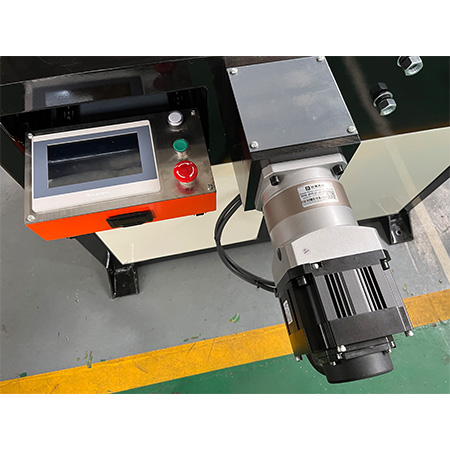

5.Simple Operation with Multi-Language Display

The machine features a simple operating interface with multi-language display, making it easier for operators in different countries and regions to use.

Customer Reviews

To address the challenges of extremely low efficiency and inconsistent large-radius curves in manual bending for modern high-end table and sofa frames, a leading furniture manufacturer deployed Baorui Machinery's customized automatic CNC rolling bending solution; by leveraging high-precision rollers and 3D compensation technology, we achieved "zero-error" curve forming for stainless steel and aluminum profiles. This solution boosted single-piece processing efficiency by over 300% and ensured that every frame possesses a seamless, handcrafted arc with 100% specification uniformity, helping the client successfully penetrate the international luxury hotel furniture market.

Customer Reviews.png

FAQ

1. Are you a manufacturer or a trading company?

We are a manufacturer with more than ten years of experience.

3. How long can you provide the warranty?

Our machine has a one-year warranty, and we use all stable components with a long service life.

5. Do you guarantee the safe and reliable delivery of the product?

Yes, we always use high-quality standard export packaging.

7.Do your machines meet international standards (e.g., CE, ISO)? Can you provide relevant certificates?

All products are certified with CE and ISO 9001:2015. We can provide test reports, quality certificates, and compliance documents for customs clearance in your country.

2. Do you provide any training to ensure that our users can operate the machine well?

We will provide detailed video and instructions for the machine. We can also send our workers to your company for a free training. The customer needs to take in charge the hotel, the flight and the food during the training.

4. Where is your factory? How do i get there?

Our factory is located in Zhangjiagang City, Suzhou (next to Shanghai). You can fly directly to Shanghai Hongqiao or Pudong Airport.

6. How about the shipping cost?

The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method.

8.Do you handle export customs clearance? What documents are needed for import?

We can assist with export procedures and provide commercial invoices, packing lists, bills of lading, and certificates of origin. For import customs clearance, we'll advise on specific documents required by your country (e.g., product safety certificates).
