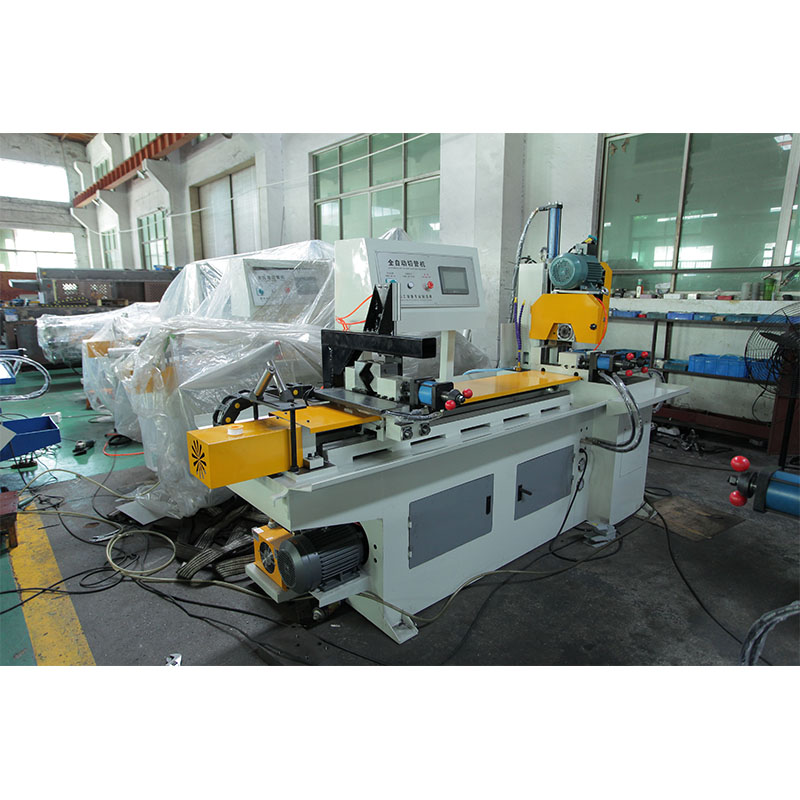

| Machine model | MC-425CNC | Note | |
| Maximum cutting capacity | ◎ | Φ120mm | |
| □ | 110 mm×110mm | ||
| ● | 55mm | ||
| ■ | 50×50mm | ||

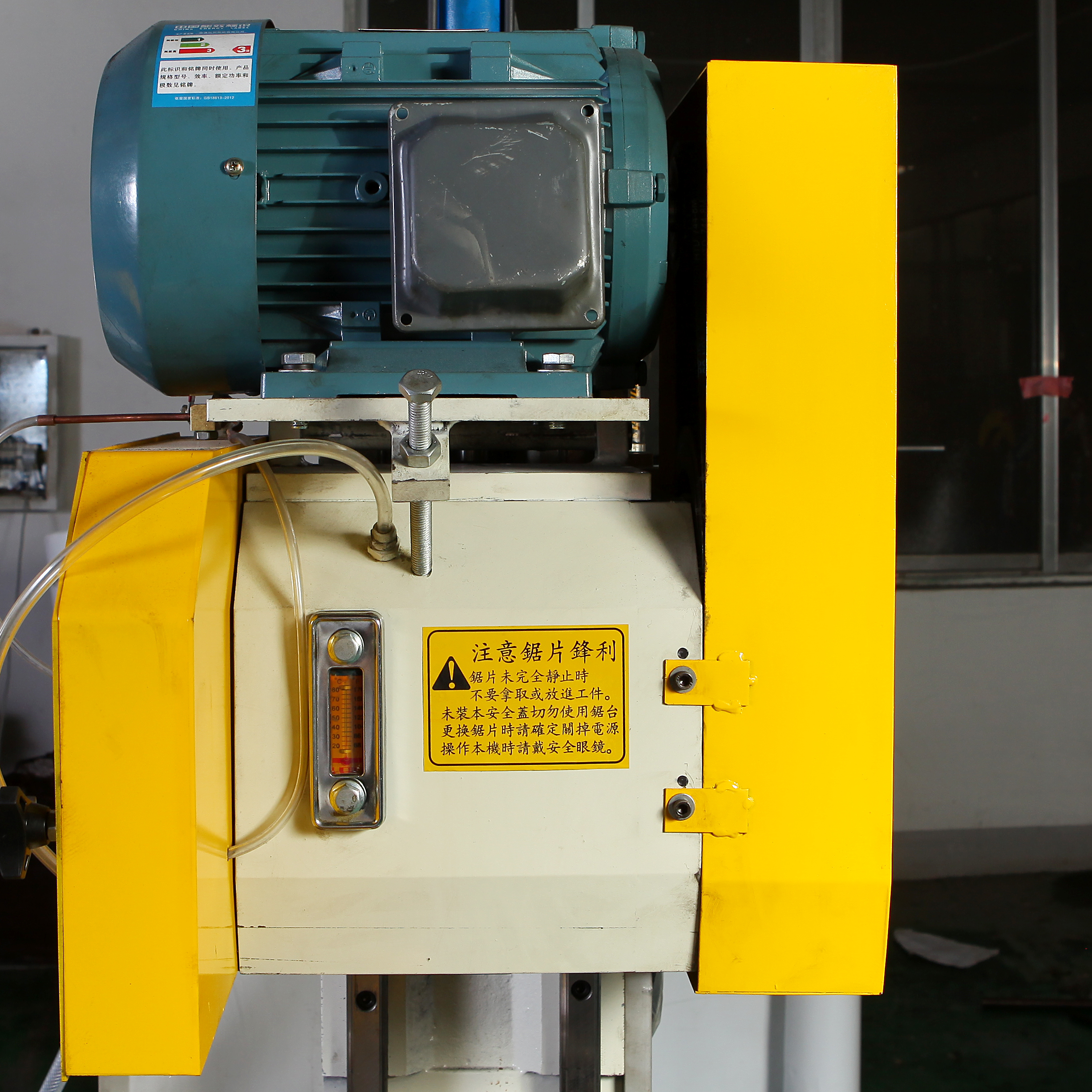

| Main motor power | 3.3/4Kw | ||
| Oil pump motor power | 2.2 Kw | ||
| Servo motor power | 1 Kw | ||
| Spindle speed | 60-120 | ||
| Applicable saw blades | external diameter | Φ250-450mm | |
| centre hole | Φ32mm | ||
| pinhole | 2XΦ11X65mmPCD | ||
| Oil pump system | 4-stage motor, duplex pump, working pressure 25-50kg/cm². | ||
| Feed stroke | 1500mm×several times | Customised | |
| Feeding accuracy | ±0.15 | ||
| Cutting precision | ±0.15 | ||
| Drawing accuracy | ±0.15 | ||
| cooling system | 90W motor，Automatic Cooling Circulation | ||
| Machine weight | 1500kg | ||

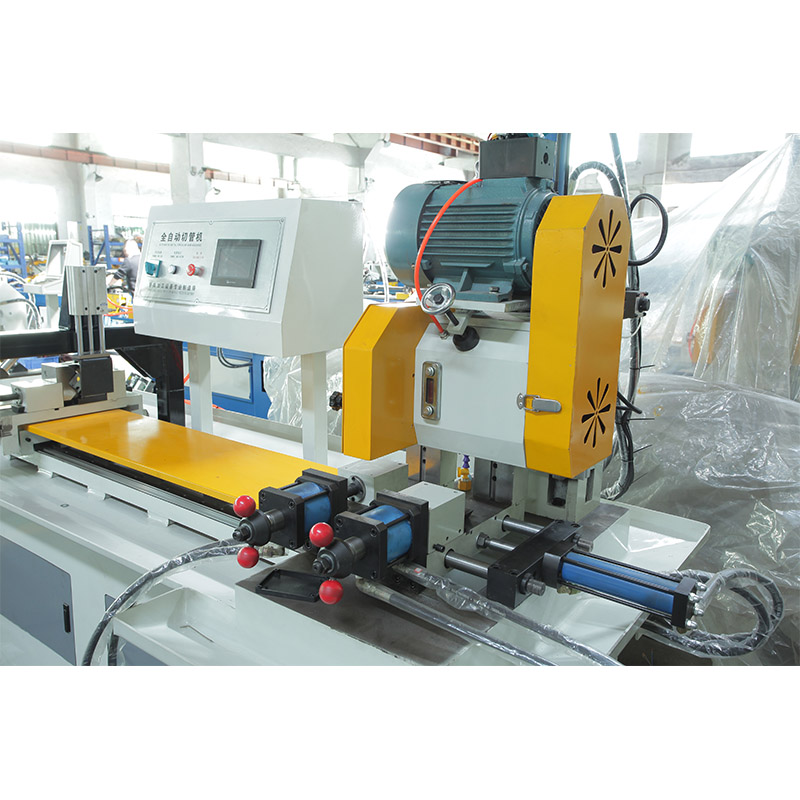

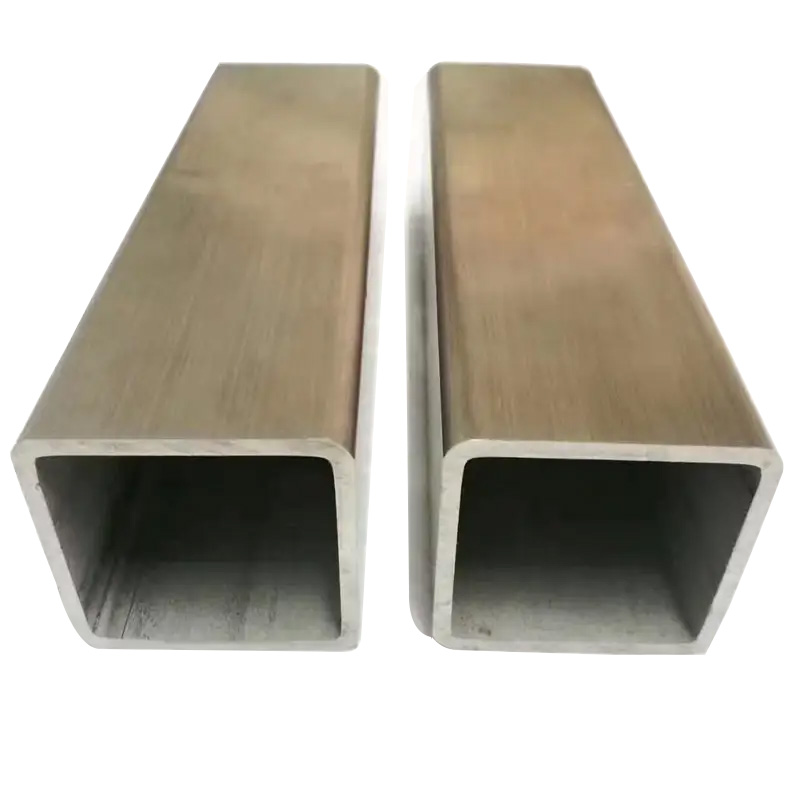

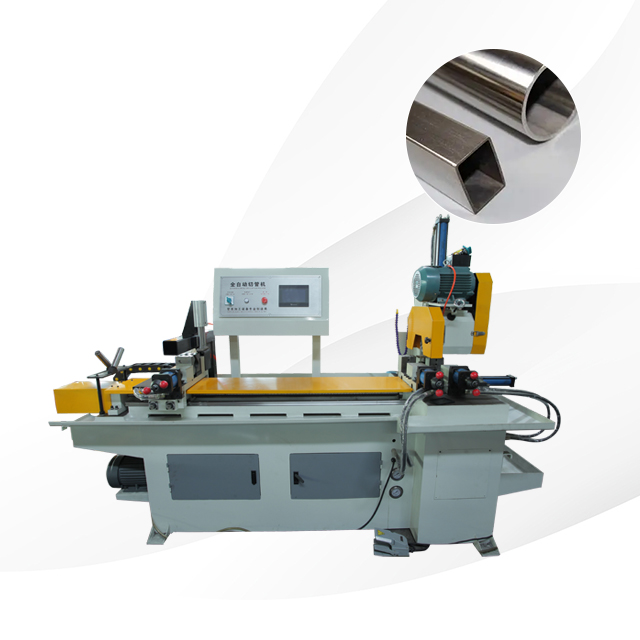

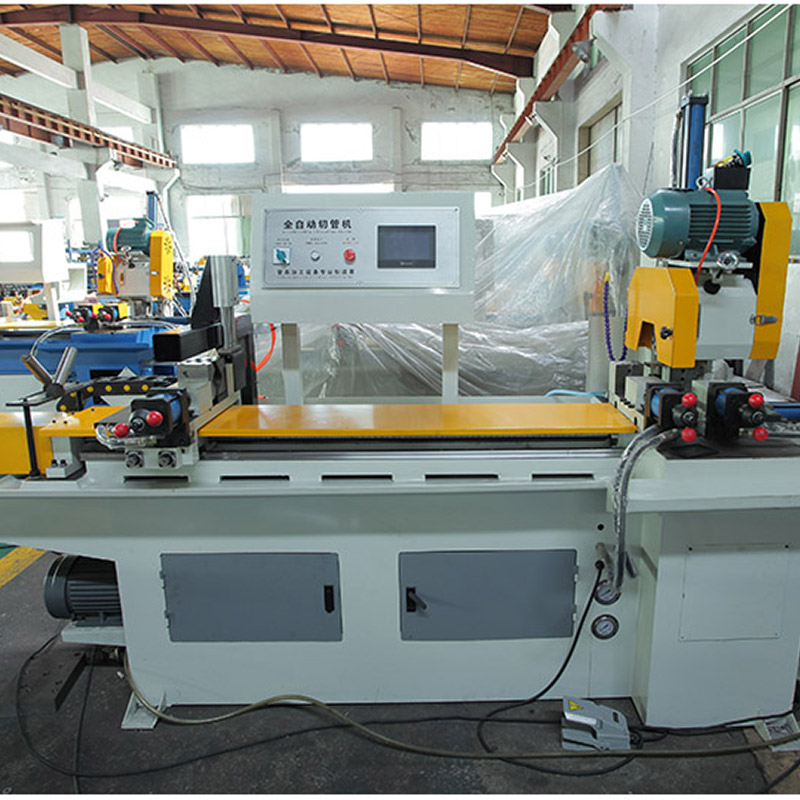

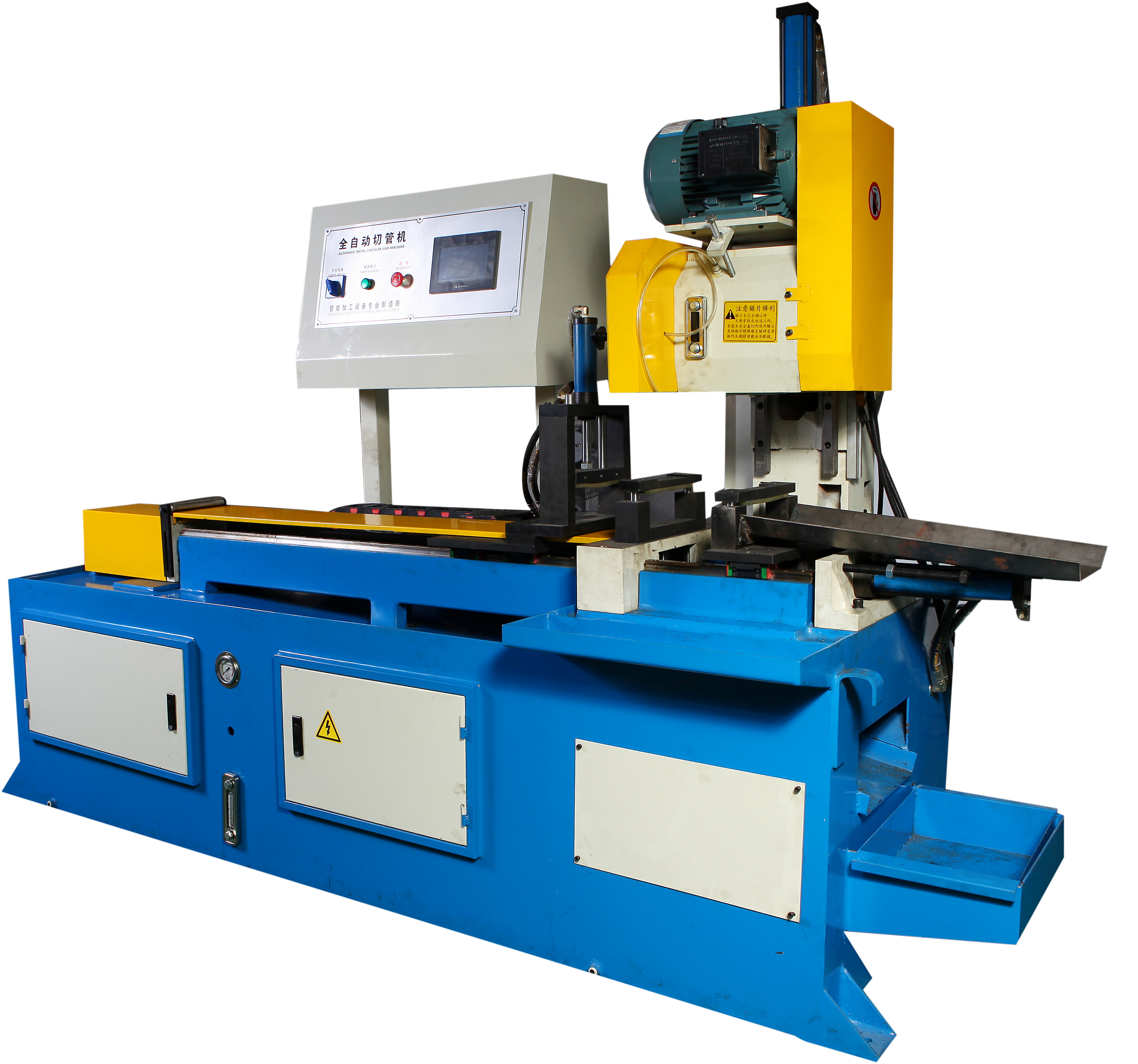

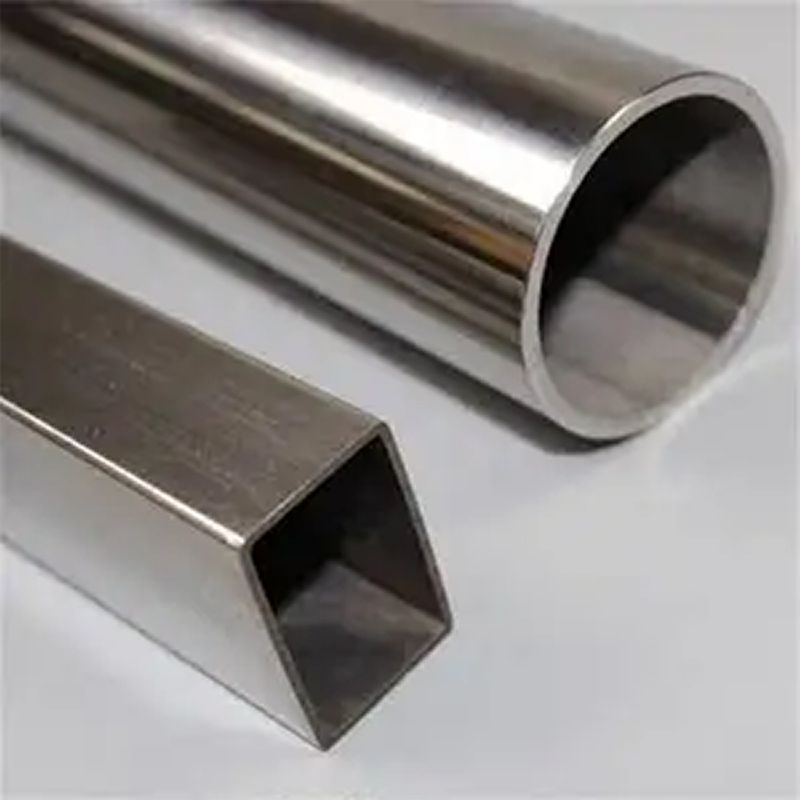

The machine is suitable for large-diameter tubes and solid bars, supporting the cutting of round, square and rectangular tubes as well as solid round and square bars.
The servo-driven feeding system provides stable control of material length, reducing dimensional variation caused by manual feeding and improving consistency in batch production.

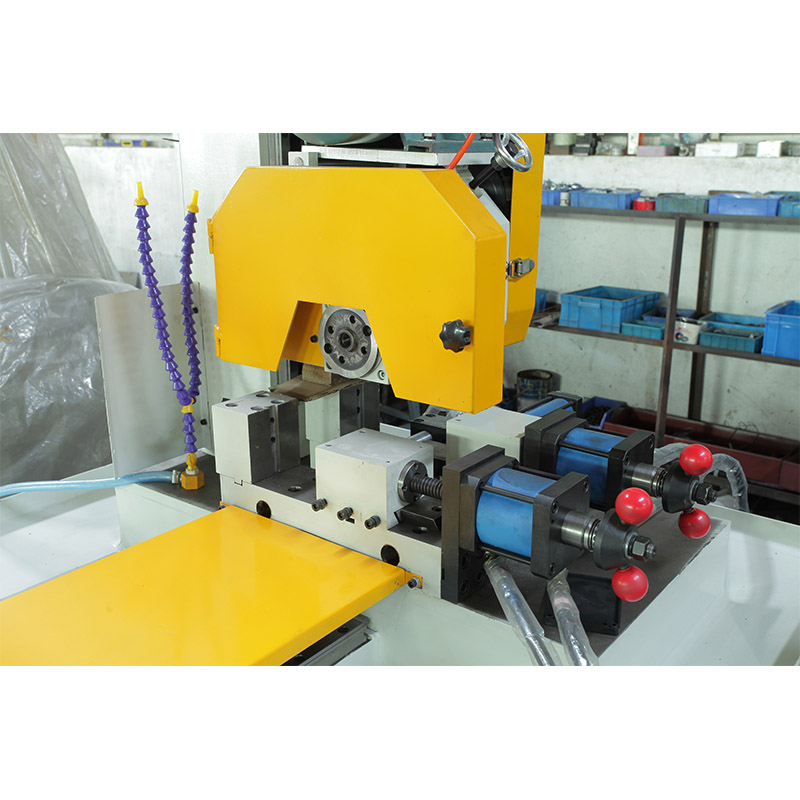

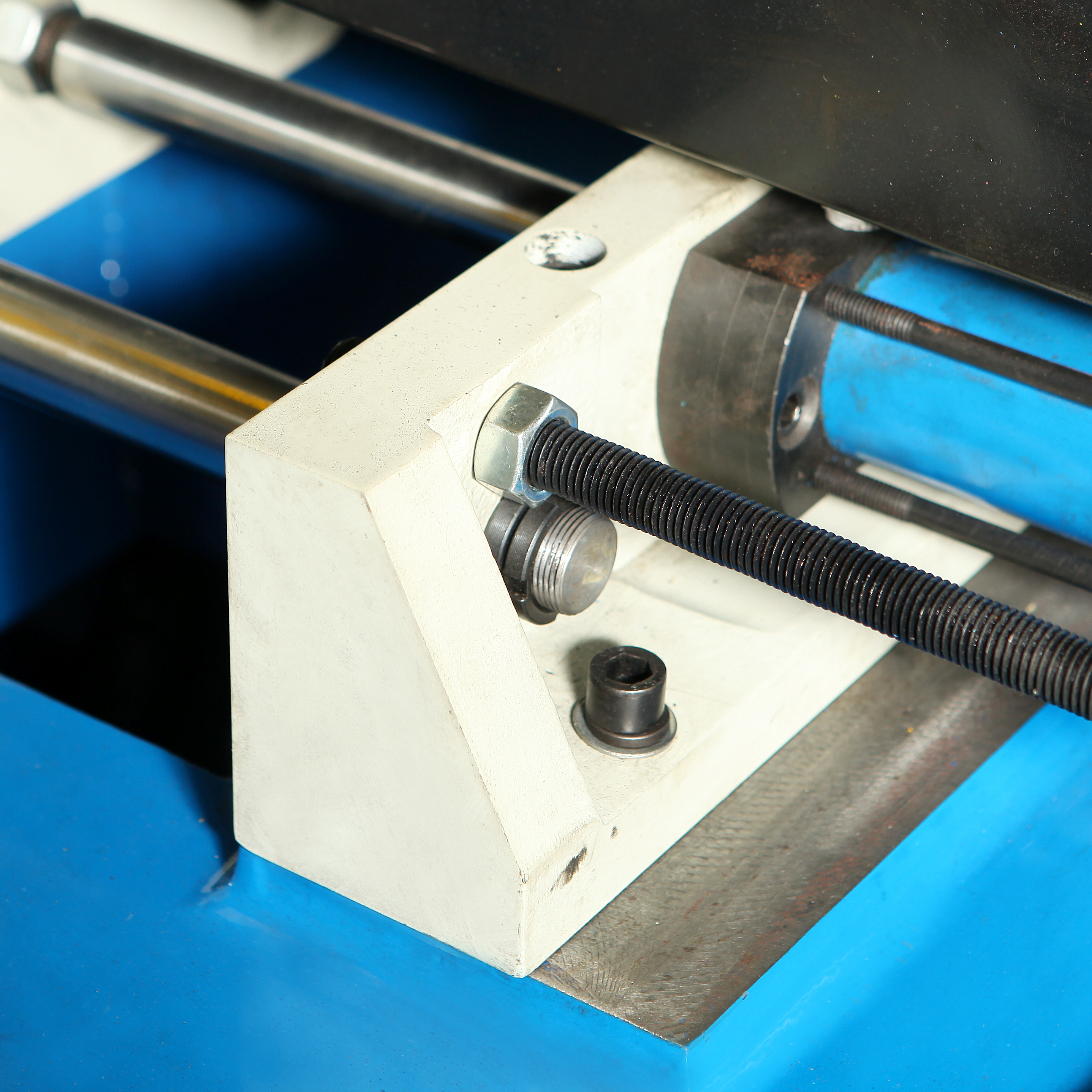

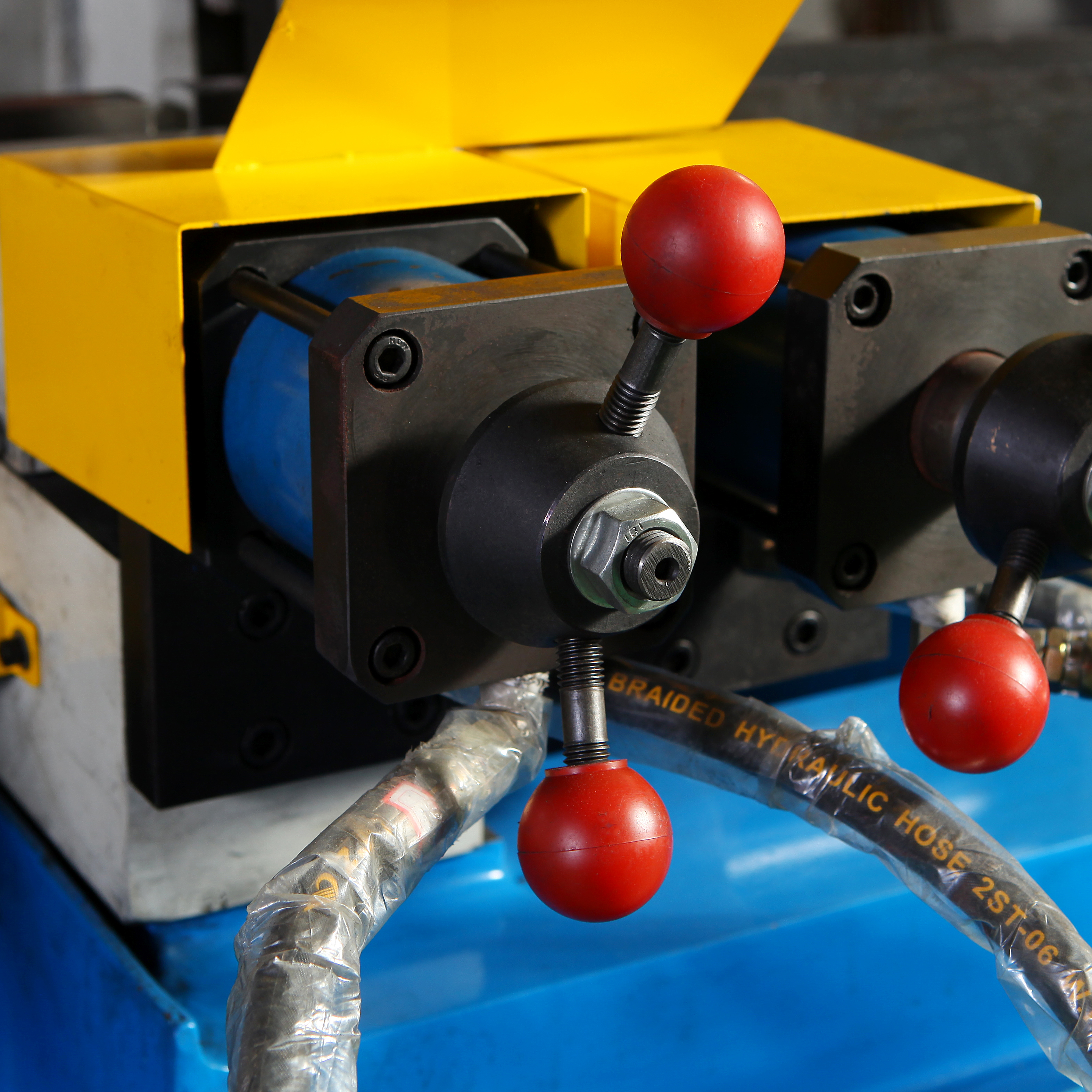

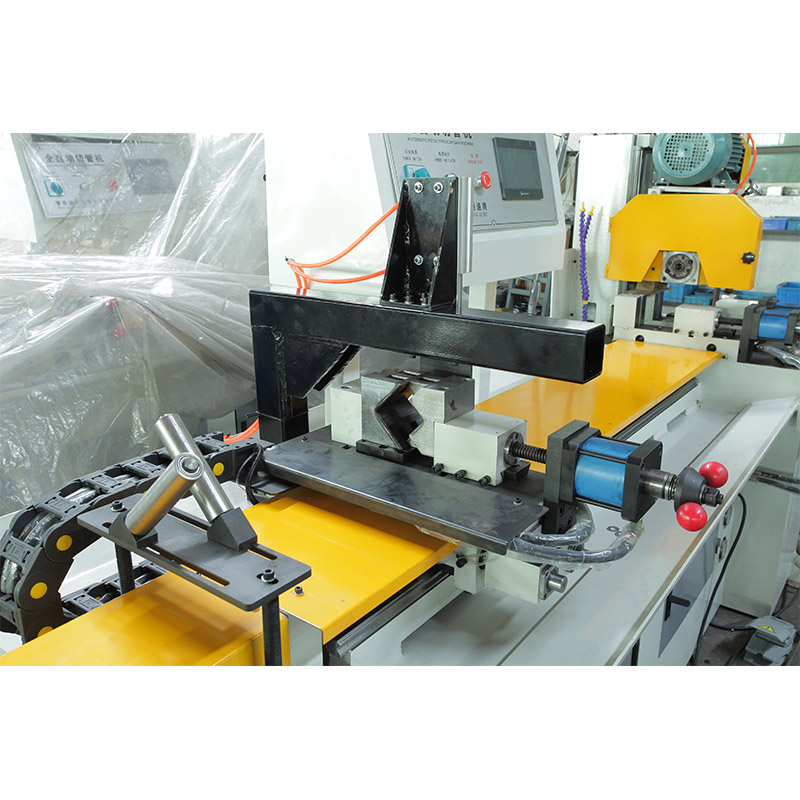

The machine is equipped with three clamping devices whose pressure can be adjusted according to the material size. This helps reduce insufficient clamping and material deformation during cutting.

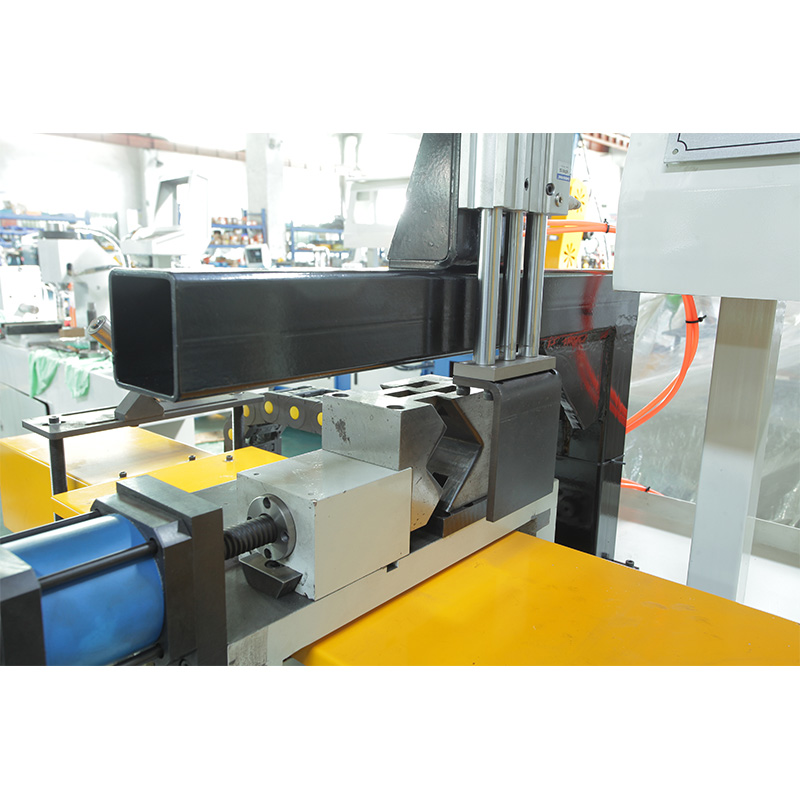

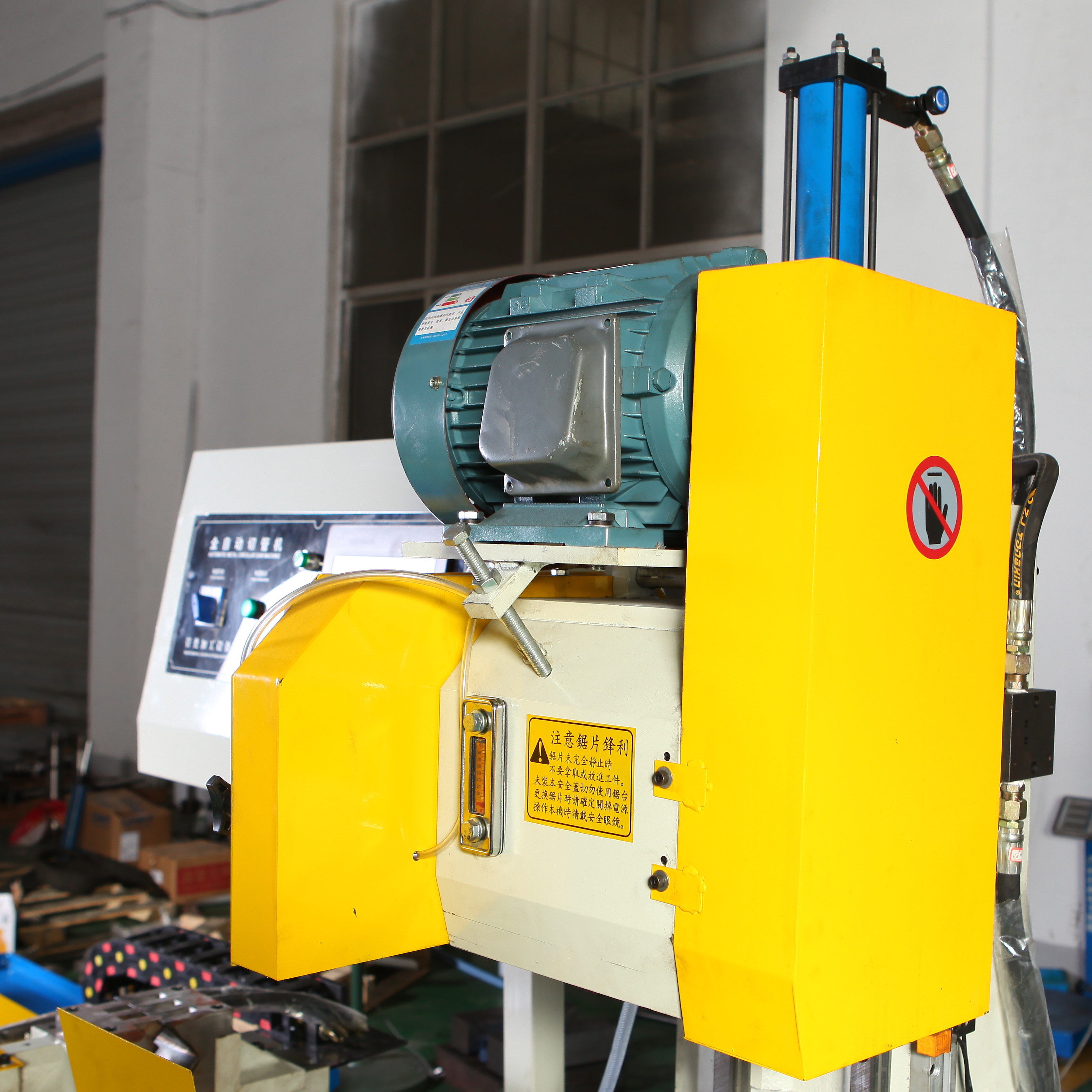

The vertical slide feeding structure provides a rigid and stable support during sawing and helps concentrate the chips generated during the cutting process.
The machine features automatic lubrication and blade cooling systems, helping reduce friction and heat during cutting, maintain stable blade performance and simplify daily maintenance.
Processing data can be entered through the touch screen, while the PLC system executes the cutting programs. This allows operators to set and manage production parameters more conveniently.
he system includes no-material shutdown, fault detection and fault display functions. These features help operators identify machine conditions promptly and simplify maintenance and production management.
To address the challenges of high-frequency cutting for large-diameter (up to Φ120mm) round and square tubes for a leading logistics equipment manufacturer in Vietnam—where manual feeding posed safety risks and struggled to maintain ±0.15mm precision during 24-hour continuous operations—Baorui Machinery deployed the MC-425CNC automatic pipe cutting solution; featuring a vertical slide feeding structure and three sets of adjustable precision clamping devices, the system enables stable cutting for various complex profiles. This solution not only reduced unit labor costs by 60% through fully automated, lights-out operation but also ensured high-quality welding fitment with superior cut surface flatness, helping the client significantly scale up delivery volumes and enhance their quality reputation in Vietnam's infrastructure and logistics boom.
