Left and right pipe bending machine

Product Description

Item	Name		Unit	Data	Remark
1	Max bending capacity		mm	Φ18
2	Max bending radius		mm	80	Can according to customer’s requirement
3	Min bending radius		mm	Depend on the pipe diameter
4	Max feeding length		mm	2200	Can according to customer’s requirement
5	Max bending degree		Degree	190
6	Control Panel			PLC + touch screen
7	Bending unit		piece	16
8	Working speed	bending speed	Deg/sec	200
8	Working speed	Feeding speed	mm/sec	1000
9	Accuracy	feeding	mm	±0.1
		rotary	Degree	±0.1
		bending	Degree	±0.1
10	Feeding servo motor power		W	750	Japan Mitsubishi
11	Bending servo motor power		kw	1
12	Oil motor power		Kw	3
13	Max storage units		group	1000	Can enlarge according to requirement
14	Max pressure		MPa	10	Adjustable
15	Hydraulic control system			Magnetic exchange valve	Japan Yuken
16	Oil tank		L	250
17	Oil cooler		L/Min	100
18	Machine weight		Kg	2000
19	Machine size		mm	2760×1200×1500	Dimensions are for reference only
19	Machine size		mm	2760×1200×1500	Dimensions are for reference only
20	Warranty time		month	12

Product Feature

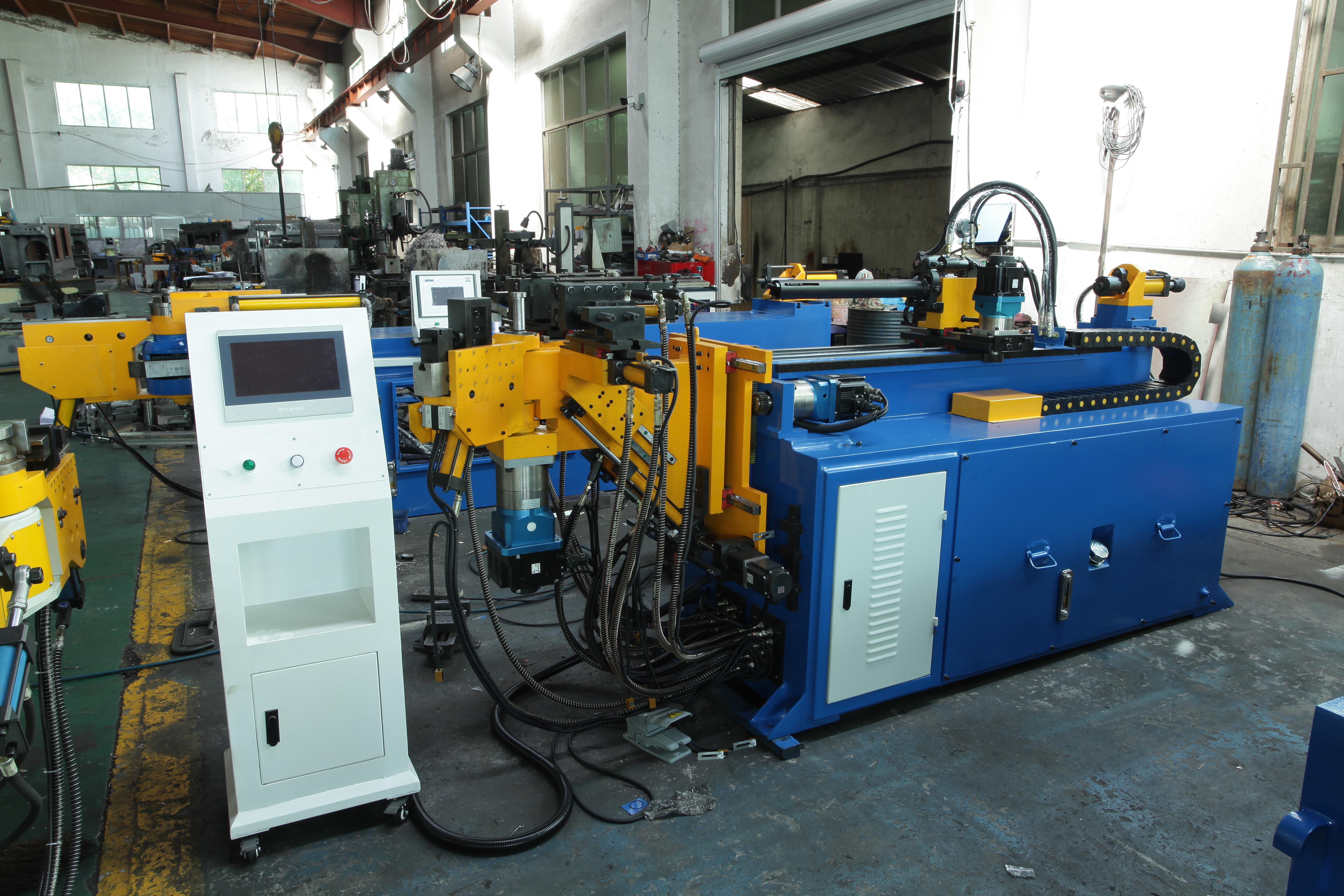

This fully automatic left and right CNC pipe bending machine is designed for forming automotive oil pipes and other complex tube components. Equipped with PLC and touch-screen control, it supports manual, semi-automatic and fully automatic operation, integrating feeding, rotation and left-and-right bending. With multi-axis control and 3D simulation, it reduces manual adjustment, improves productivity and maintains consistent dimensions and bending angles in batch production.

1.Left and Right Bending for Complex Oil Pipe Geometries

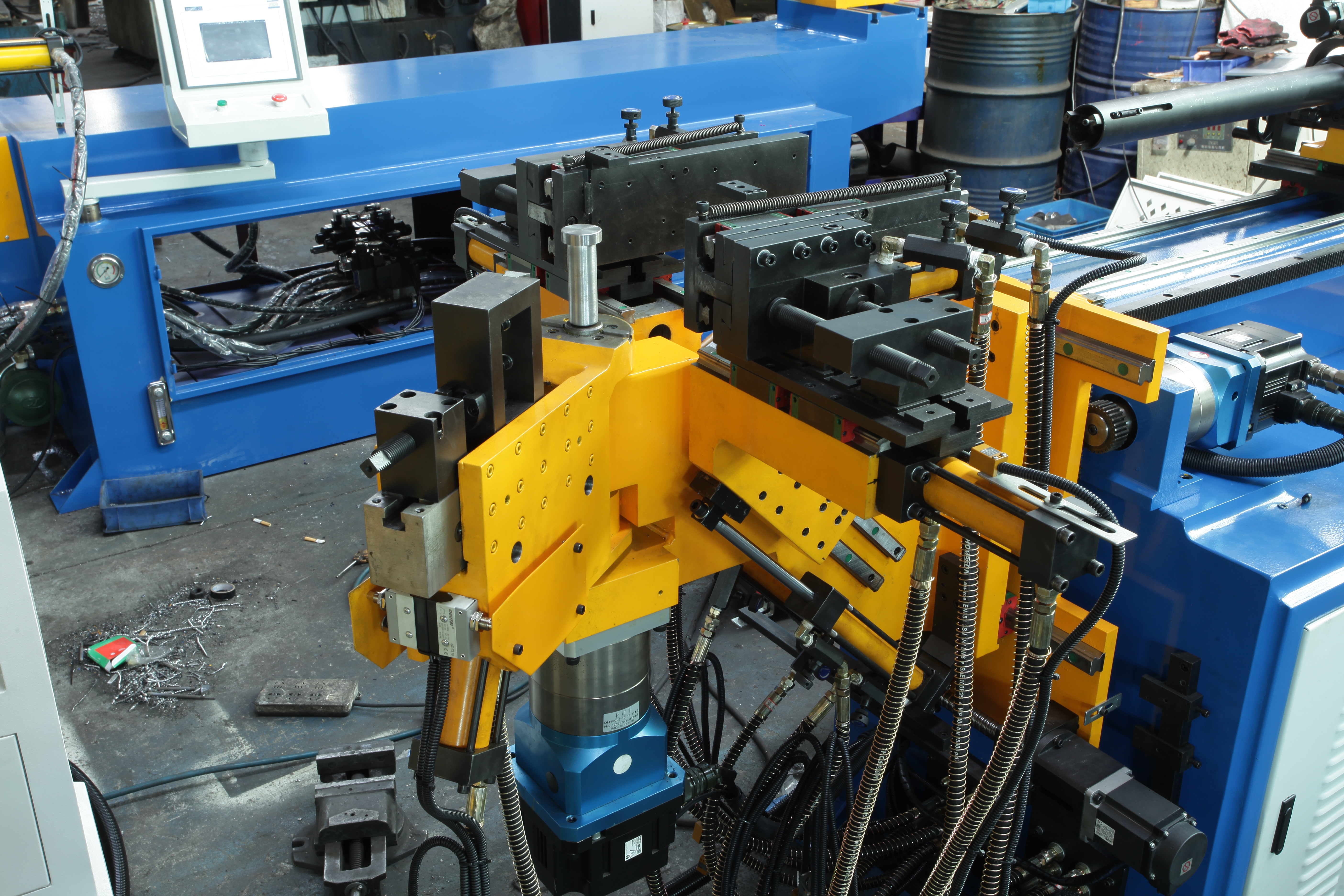

The machine supports both left and right bending and can adjust the bending direction according to the oil pipe design. It is suitable for multi-angle and 3D tube forming while reducing repeated adjustment and repositioning.

2.Multi-Axis Coordinated Control for Stable Forming

Feeding, rotation and bending work together to form complex tube paths continuously, helping reduce process variation and maintain consistent dimensions and angles.

1.Left and Right Bending for Complex Oil Pipe Geometries

3.3D Simulation for Easier Programming

The machine supports 3D simulation and allows 3D design drawings to be imported, making it easier to preview bending paths and complete program adjustments before production.

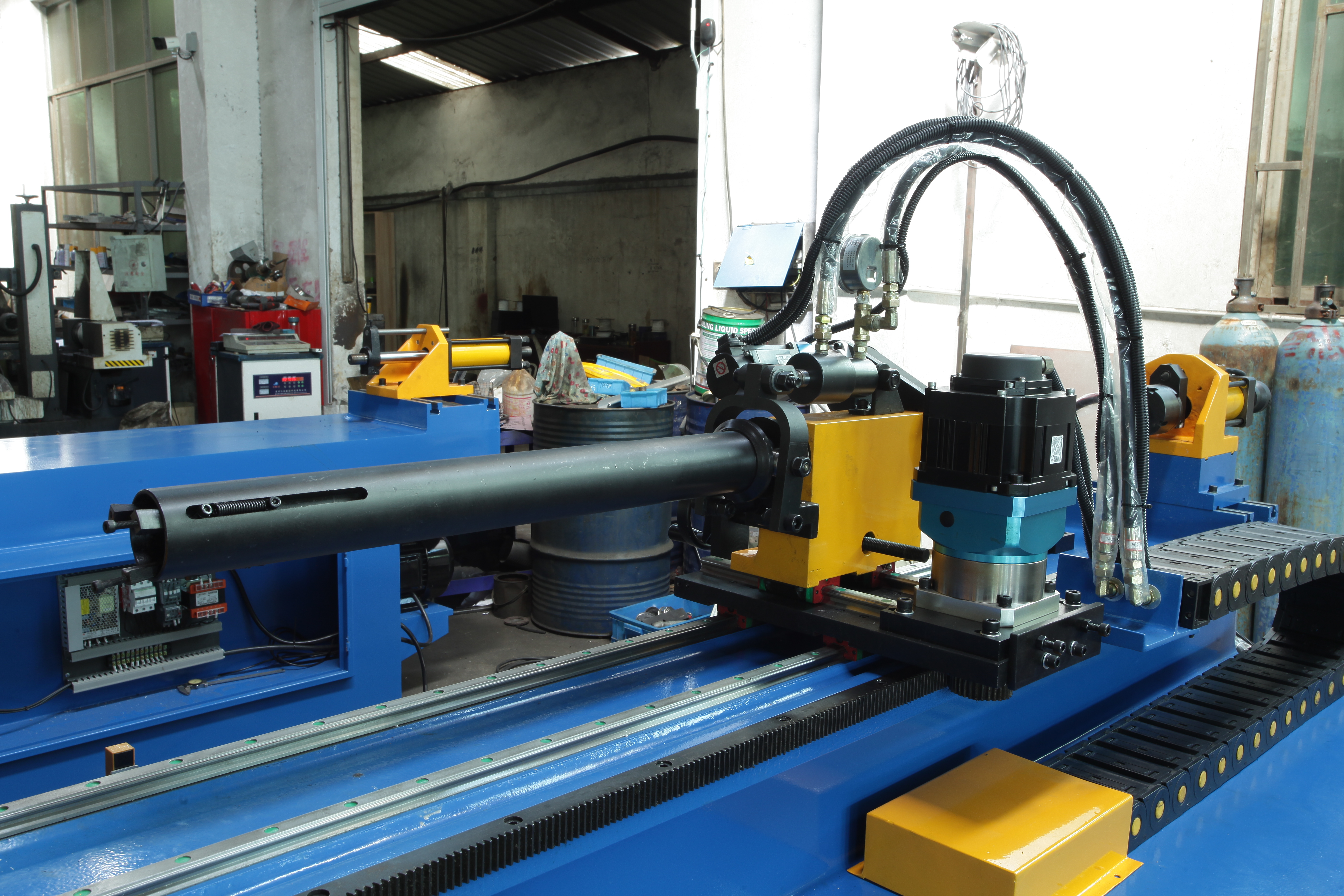

5.Servo Feeding and High-Speed Bending

The machine uses servo feeding and CNC bending control. The page lists a maximum feeding speed of 1000 mm/s and bending speed of 200°/s, helping shorten the processing cycle for batch production.

pipe bending 1.png

6.High-Precision Control for Batch Consistency

The page specifications indicate a feeding accuracy of ±0.1 mm, with rotary and bending accuracy of ±0.1°, helping reduce dimensional and angular variation during batch production.

pipe bening3.png

FAQ

1. Are you a manufacturer or a trading company?

We are a manufacturer with more than ten years of experience.

3. How long can you provide the warranty?

Our machine has a one-year warranty, and we use all stable components with a long service life.

5. Do you guarantee the safe and reliable delivery of the product?

Yes, we always use high-quality standard export packaging.

7.Do your machines meet international standards (e.g., CE, ISO)? Can you provide relevant certificates?

All products are certified with CE and ISO 9001:2015. We can provide test reports, quality certificates, and compliance documents for customs clearance in your country.

2. Do you provide any training to ensure that our users can operate the machine well?

We will provide detailed video and instructions for the machine. We can also send our workers to your company for a free training. The customer needs to take in charge the hotel, the flight and the food during the training.

4. Where is your factory? How do i get there?

Our factory is located in Zhangjiagang City, Suzhou (next to Shanghai). You can fly directly to Shanghai Hongqiao or Pudong Airport.

6. How about the shipping cost?

The cost of shipping depends on the method you choose to obtain the goods. Express delivery is usually the fastest method, but it is also the most expensive method. Shipping is the best solution for large quantities. For the exact shipping cost, we can only provide you with detailed information after knowing the quantity, weight and method.

8.Do you handle export customs clearance? What documents are needed for import?

We can assist with export procedures and provide commercial invoices, packing lists, bills of lading, and certificates of origin. For import customs clearance, we'll advise on specific documents required by your country (e.g., product safety certificates).
