| NC Model | Unit | 40NC |
| Hydraulic motor power | KW | 3 |
| Rotary motor power | KW | 3 |

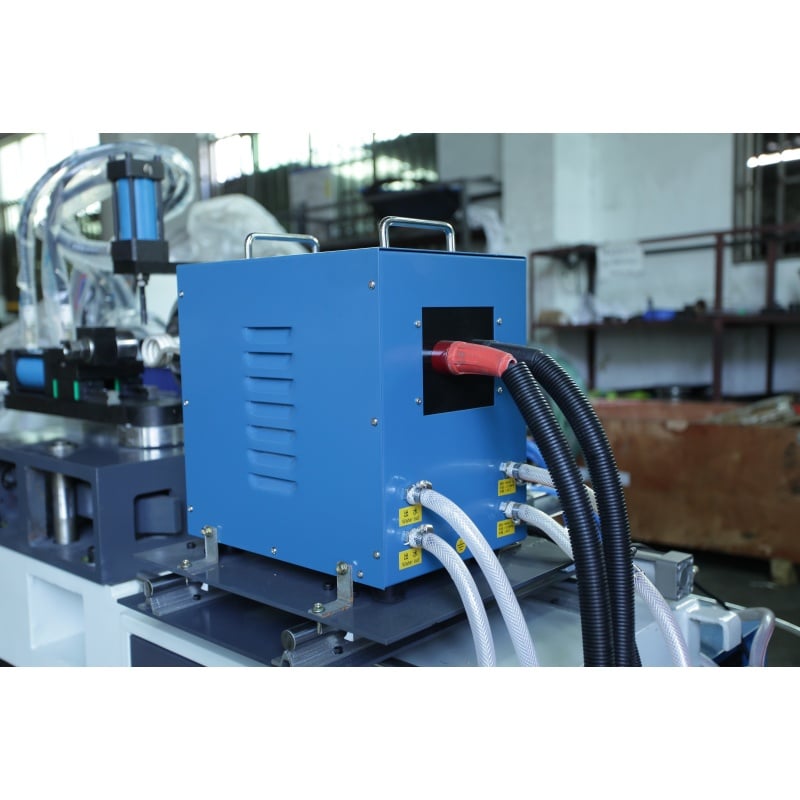

| High frequency machine | KW | 15 |
| Hydraulic chuck | 32 | |
| Maximum applicable pipe | mm | ￠32*2.0 |
| Maximum hydraulic pressure | MPa | 12 |
| Dimension | mm | 2000*820*900 |
| Weight | Kg | 600 |

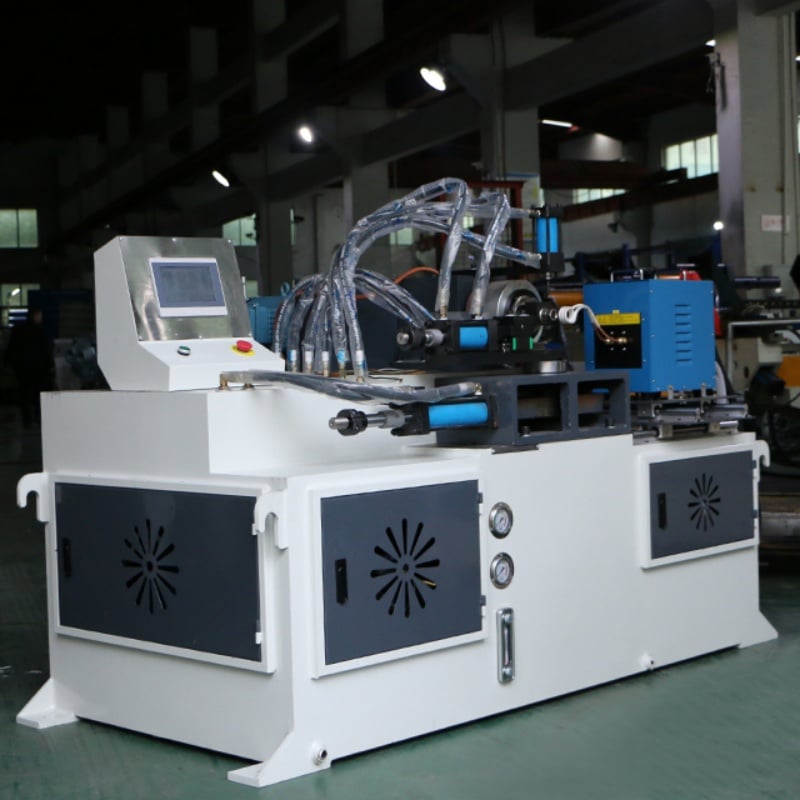

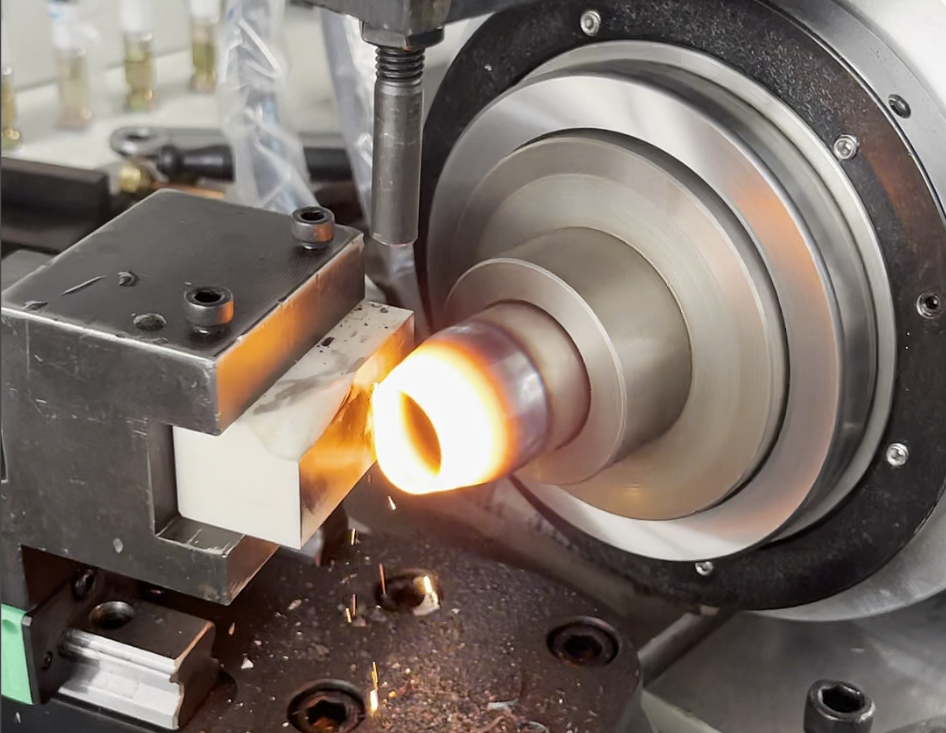

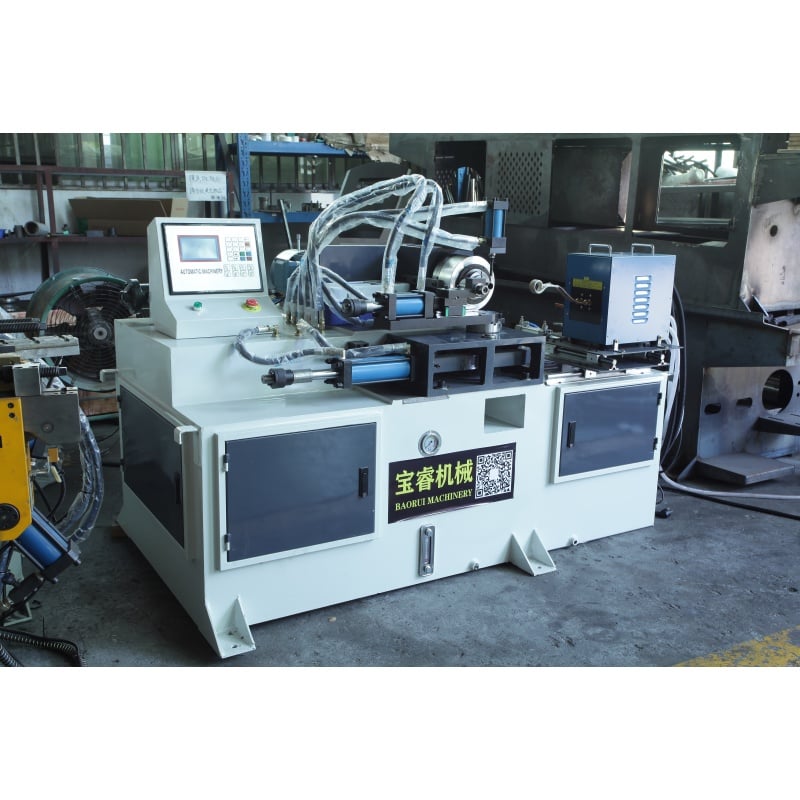

The machine uses high-frequency heating and spinning forming to process metal tube ends continuously, helping achieve stable sealing results while reducing traditional welding procedures.

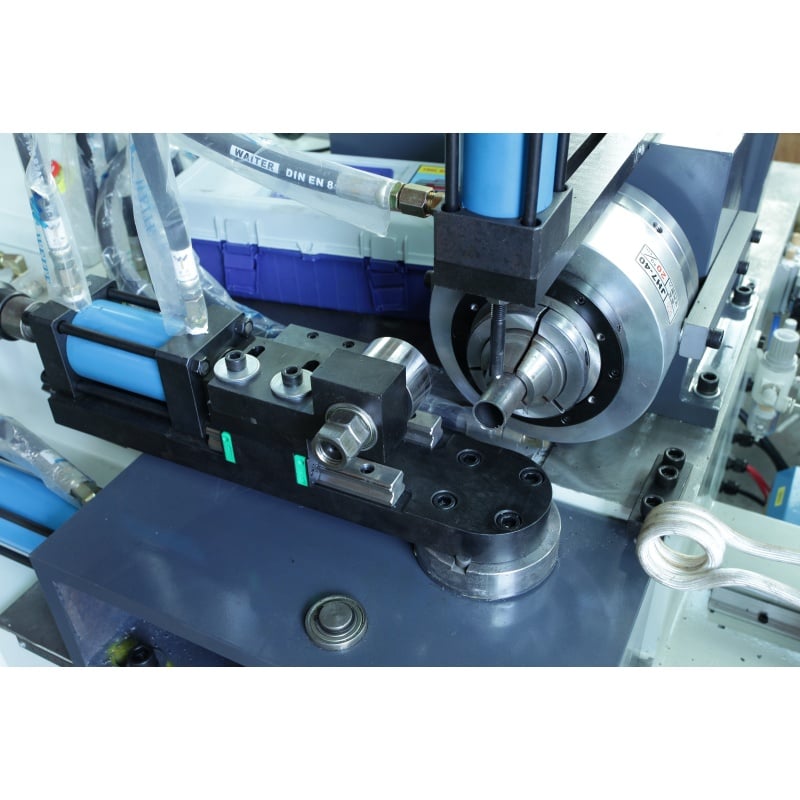

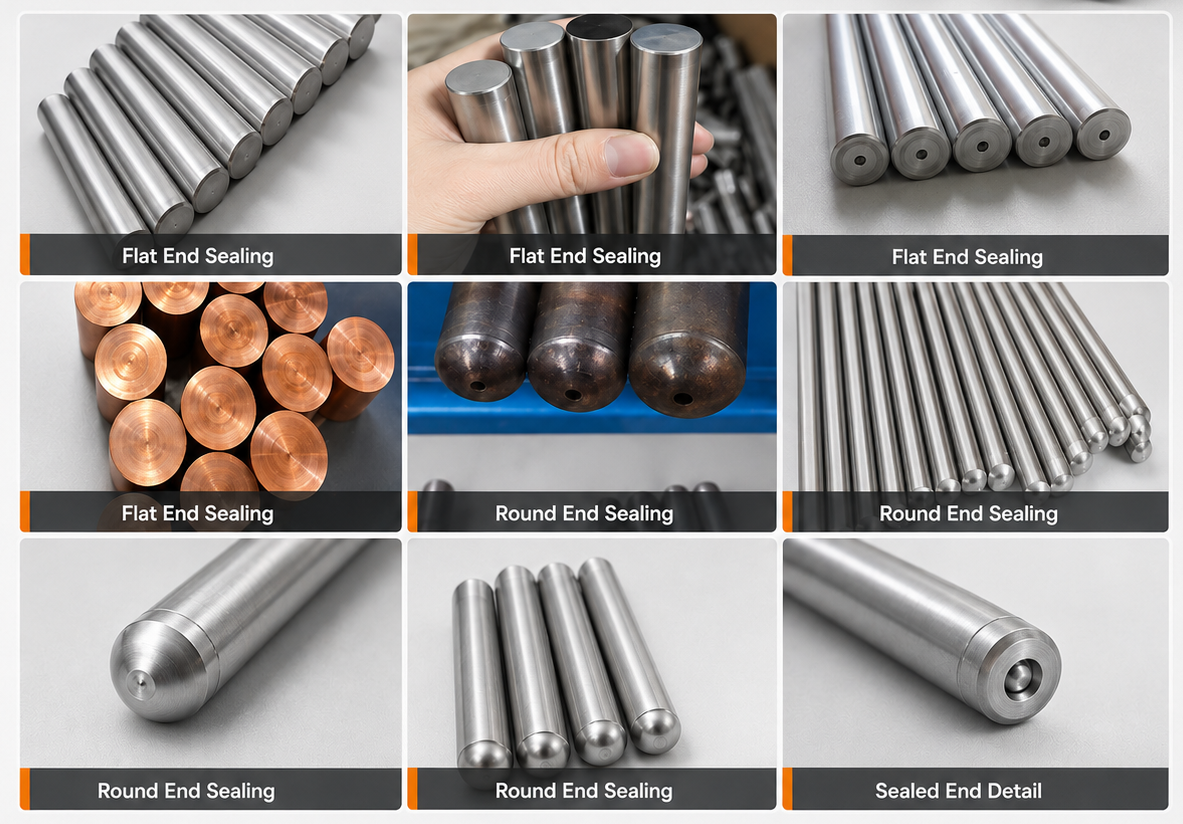

Customized molds can be designed according to tube size, sealing shape and processing requirements, helping address tube deformation, wrinkling and springback.

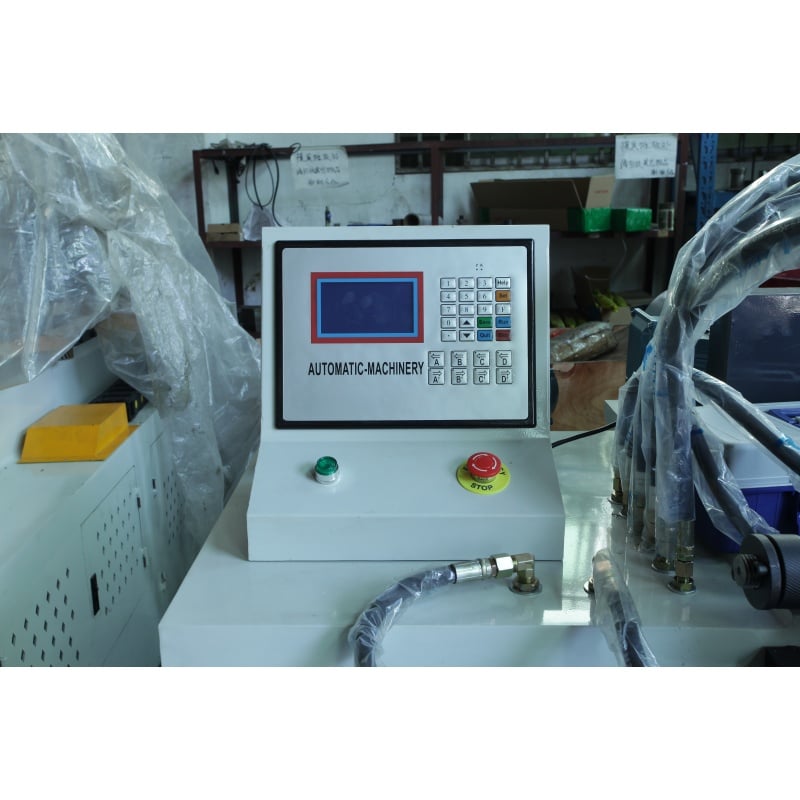

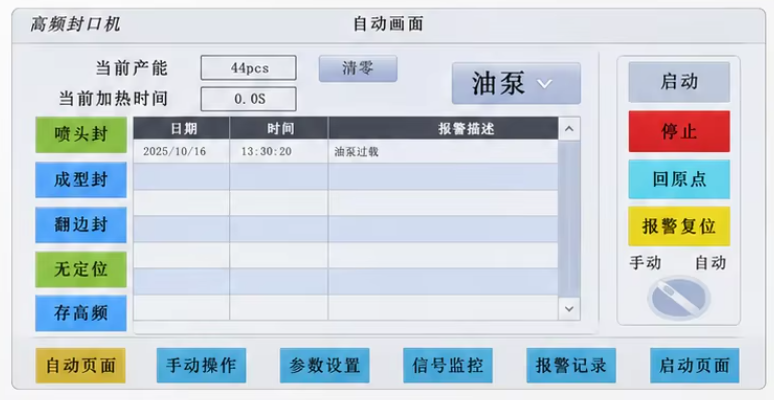

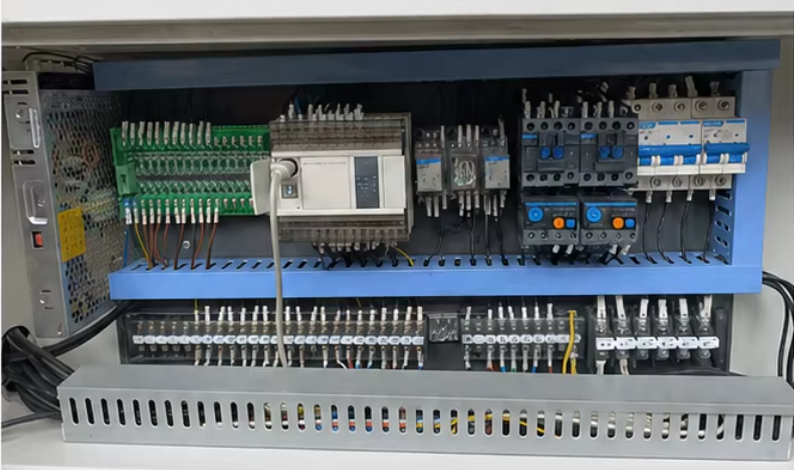

The touch screen allows operators to select processing functions and set sealing dimensions, process parameters and operating modes. The PLC system coordinates machine movements for convenient operation.

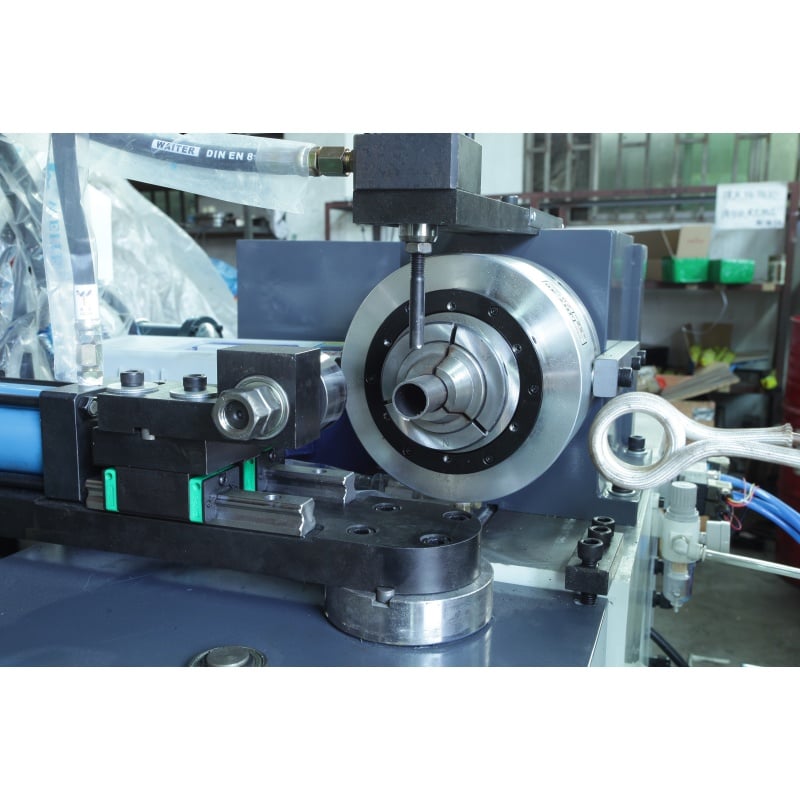

The machine is equipped with a pure copper rotary motor to provide stable power for spinning operations. The image specifies a power of 2.2 kW, supporting stable continuous processing.

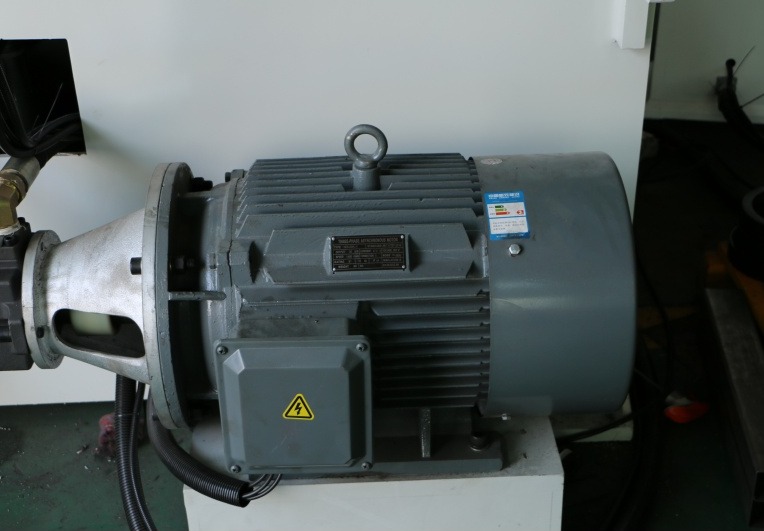

The machine is equipped with a pure copper oil pump motor. The image specifies a power of 3 kW. Its high-flow hydraulic system provides stable power for clamping and forming, helping improve processing efficiency.
The machine is equipped with pressure gauges for independent monitoring and adjustment of clamping and system pressure. This makes it easier to set parameters for different tubes and products.
To overcome the challenges of complex procedures and high leak risks in traditional welded sealing for precision aluminum tubes—where maintaining 100% airtightness is critical—a leading automotive HVAC and heat pump supplier in Southeast Asia deployed Baorui Machinery's automated pipe end sealing solution using hot spinning technology; featuring high-frequency induction heating and CNC spinning, the system achieves seamless, integrated sealing for tubes up to Φ32mm. This solution ensures exceptional structural strength and consistency while doubling processing efficiency and eliminating the heavy costs of leak detection, helping the client successfully secure core supply contracts for air conditioning lines from multiple premium passenger vehicle giants in the region.
