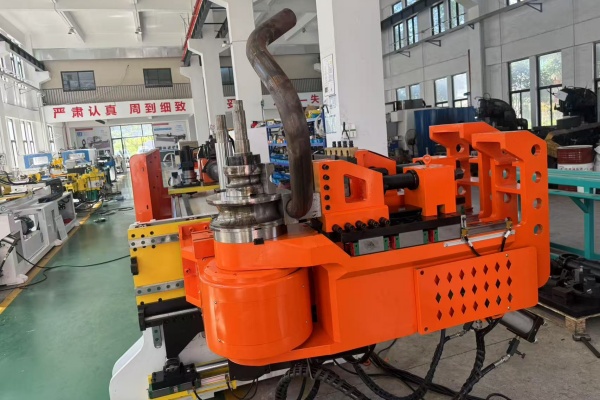

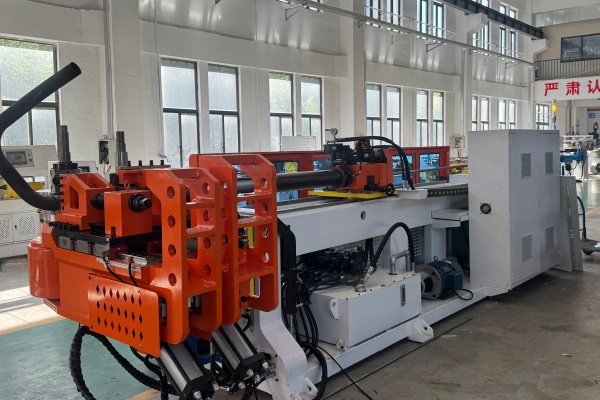

Suitable for multi-angle and high-precision bending of heavy truck exhaust pipes, muffler connection tubes and chassis pipelines.

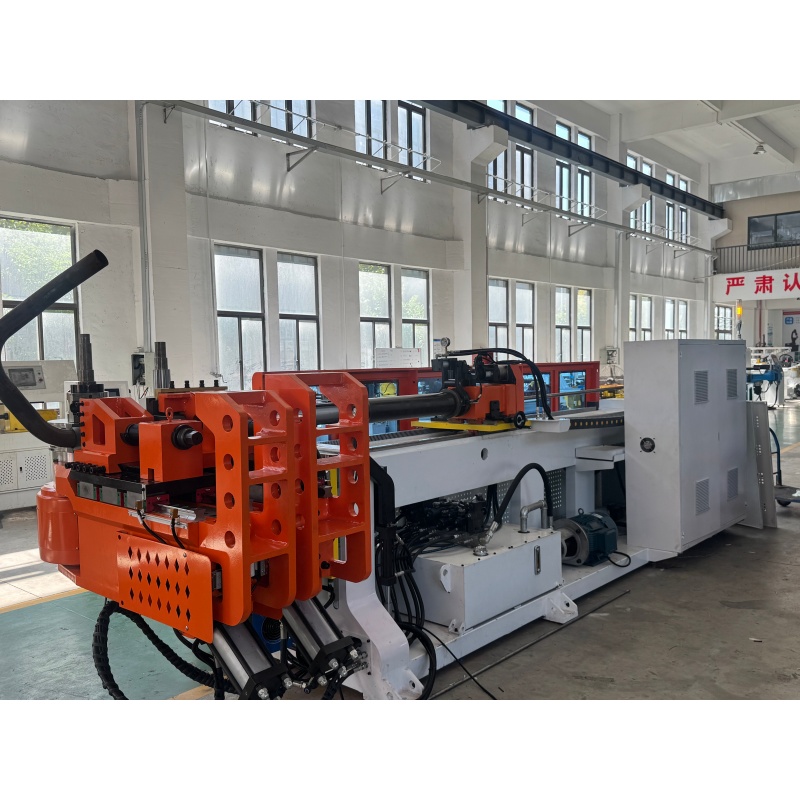

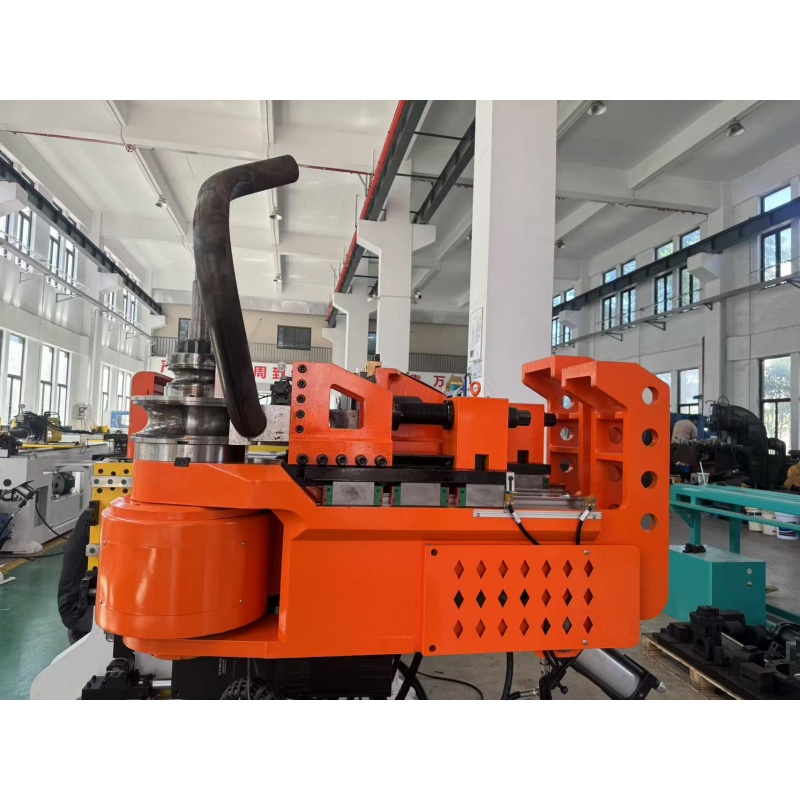

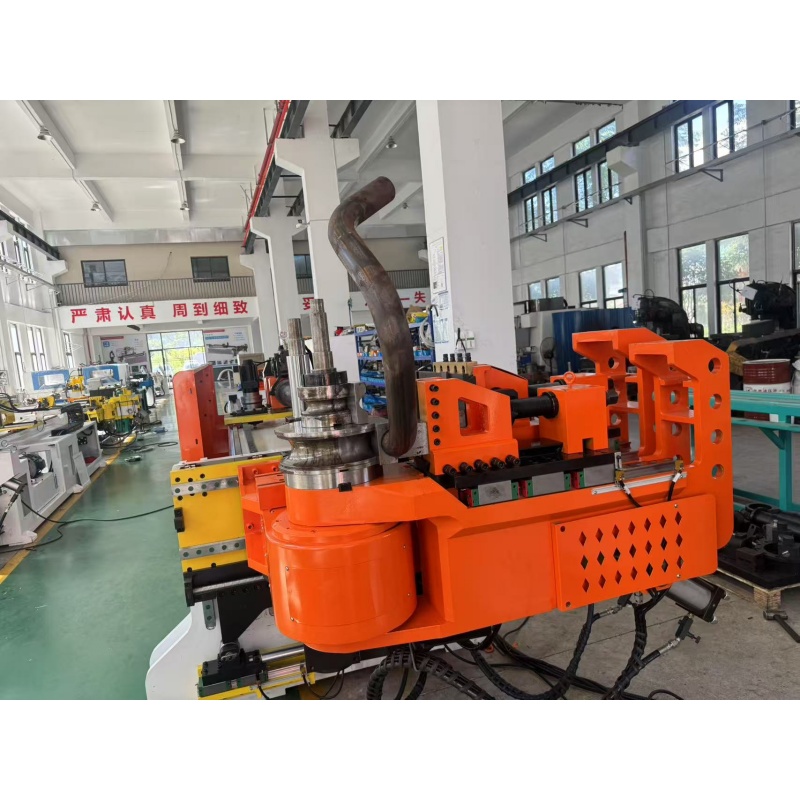

Designed for large-diameter tube processing, the 130CNC is suitable for forming heavy truck exhaust pipes and muffler connection tubes.
Servo control of feeding, rotation and bending improves batch-to-batch consistency while reducing rework and material waste.
Multi-angle continuous bending supports complex exhaust-pipe layouts, improving assembly fit and production flexibility for heavy trucks.
No |
Item | Value |
| 1 | Max. bending capacity | Φ130 × 8t steel pipe |
| 2 | Max. draw bending radius | Round tube: 1.5 OD–4 OD Rectangular tube: 2.5 OD–4 OD |
| 3 | Max. roll bending radius | Round tube: 8 OD–∞ Rectangular tube: 8 OD–∞ |
| 4 | Max. bending radius | 650 mm |
| 5 | Max. feeding length | 5000 mm; customizable |
| 6 | Max. bending angle | 190° |
| 7 | Rotary speed | 100 deg/sec |
| 8 | Feeding speed | 600 mm/sec |
| 9 | Feeding accuracy | ±0.1 mm |
| 10 | Rotary accuracy | ±0.1° |
| 11 | Bending accuracy | ±0.1° |
| 12 | Rotary servo motor | 2000 W |
| 13 | Feeding servo motor | 15 kW |
| 14 | Rolling servo motor | 15 kW |
Zhangjiagang Baorui Machinery Co., Ltd. presents the 130CNC Pipe Bending Machine, a high-performance solution engineered for demanding industrial applications that require CNC pipe bender automation and intelligent tube forming. The 130CNC Pipe Bending Machine from Bao Rui combines precision tube bending 130CNC capabilities with advanced CNC pipe bender automation to deliver consistent, repeatable results across a wide variety of materials and geometries. This description outlines the machine's features, applications, innovations, and technical advantages, with emphasis on how robotic pipe bending solutions and intelligent tube forming technologies optimize productivity and quality.
Overview and Key Features
The 130CNC Pipe Bending Machine is built around a robust frame and high-rigidity structure designed to minimize deflection and maintain alignment during heavy-duty operation. The machine integrates precision tube bending 130CNC control systems with CNC pipe bender automation modules to support complex bending sequences, multi-axis coordination, and high-speed production cycles. The 130CNC Pipe Bending Machine incorporates intelligent tube forming sensors and feedback loops to achieve unprecedented accuracy in every bend.
- Precision Control: The core of the 130CNC Pipe Bending Machine is a state-of-the-art CNC controller tailored for precision tube bending 130CNC tasks. The controller synchronizes CNC pipe bender automation processes and robotic pipe bending solutions to execute complex bending profiles with repeatability and minimal setup time.
- Robust Mechanical Design: The mechanical components of the 130CNC Pipe Bending Machine are engineered to support heavy loads and aggressive forming operations. This robust design enhances the life span of the system and ensures continuous operation in automated lines that rely on CNC pipe bender automation.
- Intelligent Tube Forming: Integrated intelligent tube forming algorithms adapt to variations in material properties and dimensional tolerances. These intelligent tube forming capabilities support real-time corrections and reduce scrap, improving overall yield for shops that demand strict precision tube bending 130CNC standards.
- Automation and Integration: The 130CNC Pipe Bending Machine is ready for full production line integration, supporting robotic pipe bending solutions and CNC pipe bender automation interfaces. The machine can be paired with feeding systems, end-of-line handling, and inspection stations to create a seamless intelligent tube forming workflow.
- Material and Size Flexibility: Designed to handle a broad spectrum of tube materials and sizes, the 130CNC Pipe Bending Machine supports stainless steel, aluminum, copper, and carbon steel tubing. Its versatile tooling accommodates a range of diameters and wall thicknesses while maintaining precision tube bending 130CNC performance.
- User-friendly Software: Bao Rui provides an intuitive programming environment for the 130CNC Pipe Bending Machine that simplifies complex setups associated with robotic pipe bending solutions. The software supports simulation, offline programming, and CNC pipe bender automation recipe management for repeatable intelligent tube forming operations.
- Safety and Maintenance: Safety interlocks, protective guarding, and modular design make the 130CNC Pipe Bending Machine suitable for automated cells with robotic pipe bending solutions. Maintenance-friendly access points and predictive diagnostics reduce downtime for manufacturers relying on CNC pipe bender automation.
Applications
The 130CNC Pipe Bending Machine is ideal for industries where precision, throughput, and repeatability are critical. Applications include automotive tubular components, HVAC ductwork and tubing, furniture frames, hydraulic and pneumatic assemblies, medical device tubing, and general fabrication requiring precision tube bending 130CNC performance. In assembly lines that employ robotic pipe bending solutions, the 130CNC Pipe Bending Machine provides consistent input to downstream processes, enabling intelligent tube forming across complex production sequences.
- Automotive: The 130CNC Pipe Bending Machine supports high-volume production of brake lines, fuel lines, exhaust components, and structural tubing. Its CNC pipe bender automation features reduce cycle time and ensure consistent dimensional control for precision tube bending 130CNC output.
- HVAC and Plumbing: For HVAC, refrigeration, and plumbing systems, the 130CNC Pipe Bending Machine enables accurate bending of tubing with minimal deformation, supporting intelligent tube forming to maintain flow characteristics and fitment.
- Furniture and Architecture: Decorative and structural tubing for furniture and architectural installations benefit from the 130CNC Pipe Bending Machine's ability to produce complex bends and consistent radii, integrating seamlessly with robotic pipe bending solutions for automated production runs.
- Industrial Equipment: Hydraulic manifolds, instrumentation tubing, and industrial frames require reliable precision tube bending 130CNC capability. The 130CNC Pipe Bending Machine meets these demands with CNC pipe bender automation and intelligent tube forming accuracy.
Innovations and Technical Advantages
Bao Rui’s 130CNC Pipe Bending Machine brings several innovations that position it above conventional bending equipment. These innovations underline its suitability for modern manufacturing environments that demand robotic pipe bending solutions and extensive CNC pipe bender automation.
- Adaptive Bending Compensation: Utilizing intelligent tube forming technology, the 130CNC Pipe Bending Machine applies adaptive compensation for springback and material variability. This adaptive approach reduces manual trial-and-error and accelerates setup, ensuring precision tube bending 130CNC tolerances are met on the first part.
- Multi-axis Synchronization: The machine’s synchronized multi-axis control enables complex spatial bends and compound geometries often required in advanced assemblies. Coupled with CNC pipe bender automation, multi-axis synchronization improves throughput and increases the range of producible geometries for robotic pipe bending solutions.
- Integrated Simulation and Offline Programming: Bao Rui’s 3D software simulation system allows users to validate bending programs before loading onto the 130CNC Pipe Bending Machine. Offline programming tools ensure programming time does not occupy machine runtime, enabling continuous CNC pipe bender automation and intelligent tube forming operations.
- High-precision Tooling and Fixturing: Precision tooling minimizes surface marks and Ovalization during forming. Paired with intelligent tube forming sensors, the tooling maintains concentricity and dimensional fidelity required for precision tube bending 130CNC applications.
- Modular Automation Interfaces: The 130CNC Pipe Bending Machine is built to integrate with external systems such as robotic loaders, part feeders, and inspection stations. These modular automation interfaces extend the reach of robotic pipe bending solutions and CNC pipe bender automation across factory lines.
Technical Specifications
The 130CNC Pipe Bending Machine is configurable to meet specific production requirements. Typical specifications include high-torque servo drives for bending axis control, precision gearboxes, automated clamp and mandrel feeding, and support for a wide range of diameters and wall thicknesses. The machine supports advanced CNC pipe bender automation protocols for integration with factory networks and robotic pipe bending solutions.
Why Choose Bao Rui’s 130CNC Pipe Bending Machine
Choosing Bao Rui’s 130CNC Pipe Bending Machine means selecting a partner with deep expertise in tube processing equipment. Zhangjiagang Baorui Machinery Co., Ltd. provides end-to-end solutions from concept to commissioning, using 3D simulation and a seasoned design team to ensure machines operate flawlessly in automated environments. The 130CNC Pipe Bending Machine emphasizes precision tube bending 130CNC performance, CNC pipe bender automation compatibility, and intelligent tube forming innovations to meet modern manufacturing demands.
The 130CNC Pipe Bending Machine by Bao Rui is an advanced solution for manufacturers seeking precision, reliability, and integration-ready capabilities. With a focus on robotic pipe bending solutions, CNC pipe bender automation, and intelligent tube forming, the 130CNC delivers consistent precision tube bending 130CNC results across a wide range of applications. Bao Rui’s expertise in tailored tube processing systems ensures the 130CNC Pipe Bending Machine can be configured to meet specific production goals while maximizing uptime and minimizing waste.
