العناصر | الاسم | وحدة | GY-40CNC | GY-60CNC | GY-80NC | GY-100NC |
1 | أقصى قدرة الانحناء | mm | قطر 40 × 2.5 | قطر 60 × 3.5 | Ø80 * 5 | Ø100 * 6.5 |
2 | Rounded diameter | mm | D10 د | D10 د | D10 د | D10 د |
3 | Rounding speed | مم / ثانية | 0-180 | 0-150 | 0-100 | 0-80 |
4 | قطر يموت | mm | قطر 100-150 | قطر 150-200 | قطر 180-240 | قطر 280-400 |
5 | المحرك الهيدروليكي | kw | 4 | 5.5 | 7.5 | 11 |
6 | oil pump capacity | L | 17 | 19 | 23 | 31 |
7 | ضغط النظام | الآلام والكروب الذهنية | 12 | 12 | 14 | 14 |

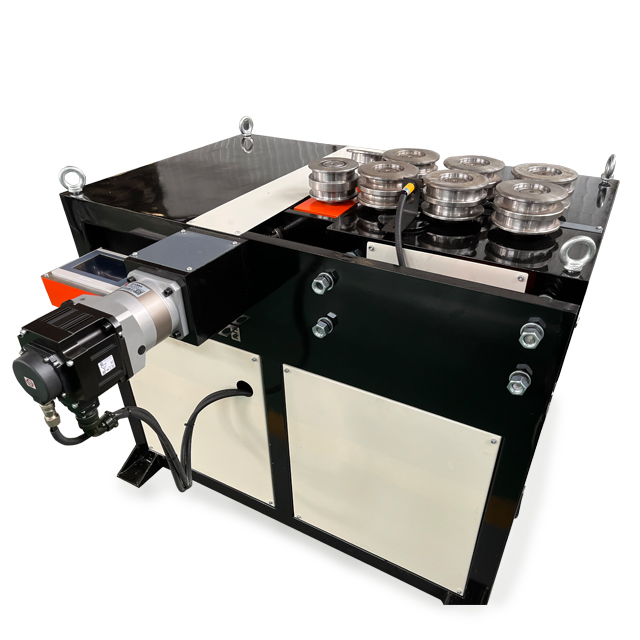

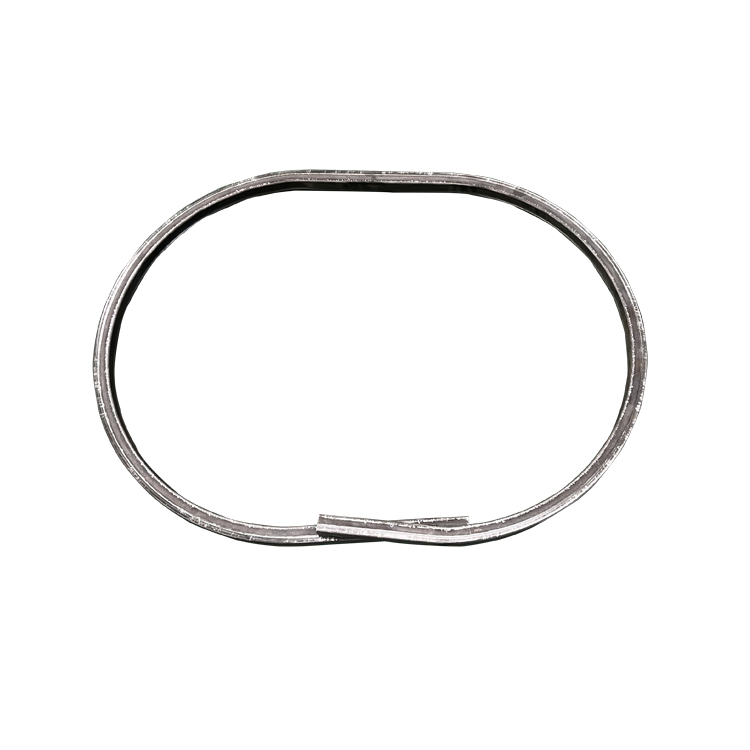

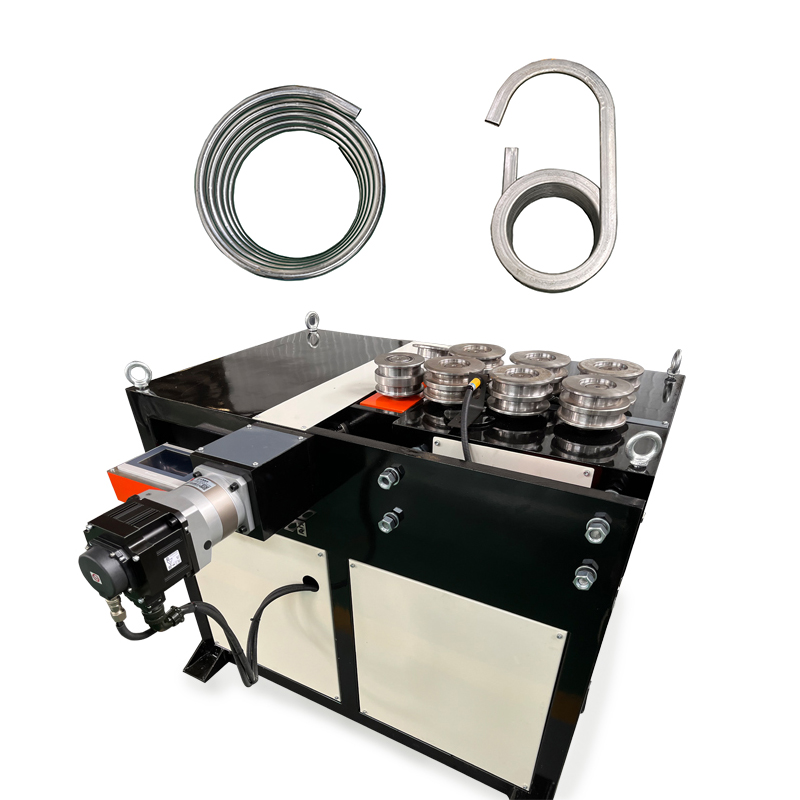

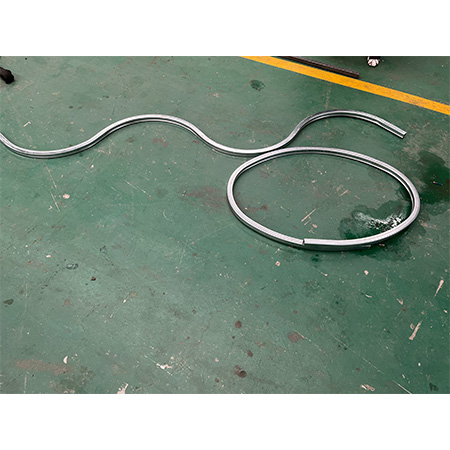

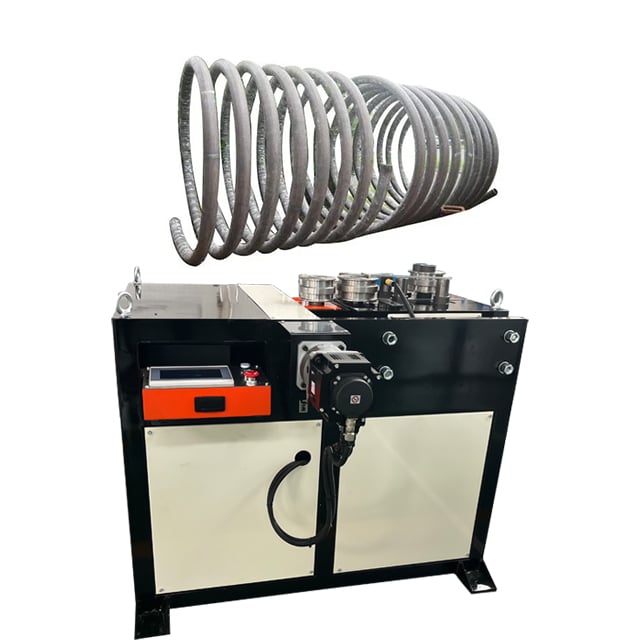

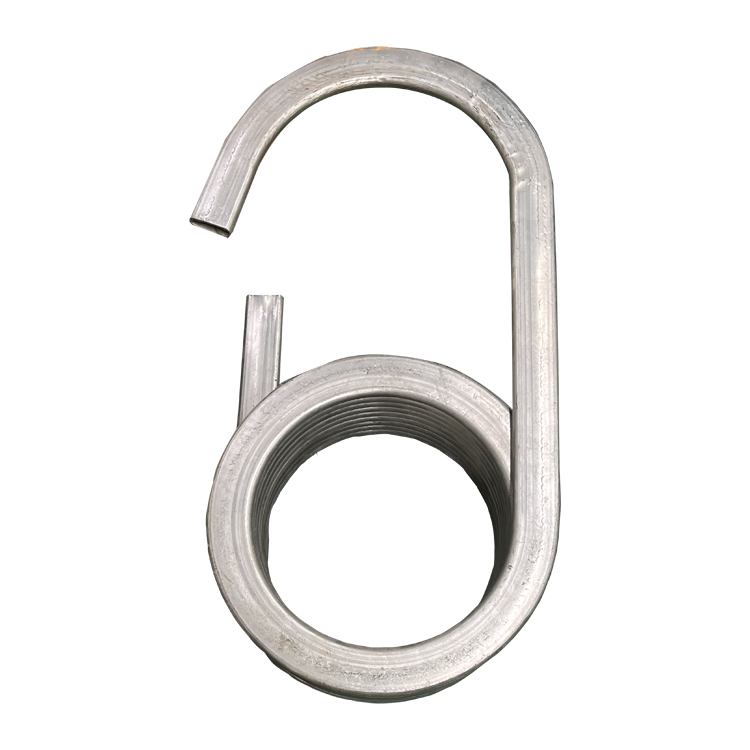

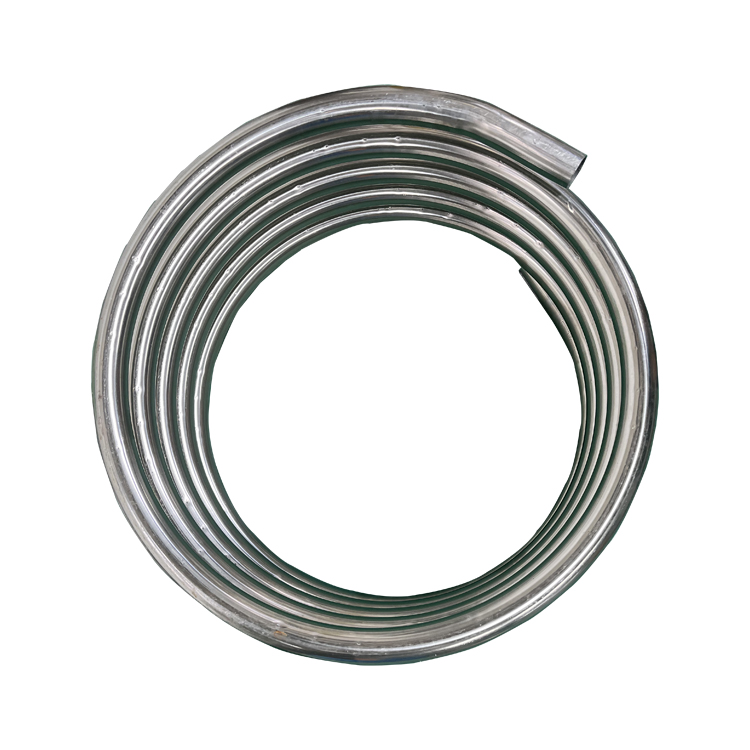

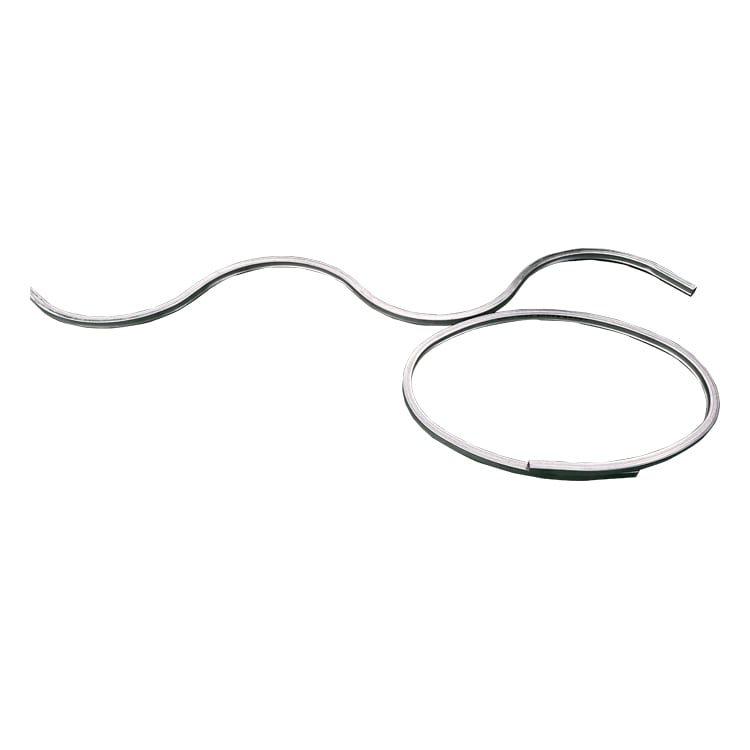

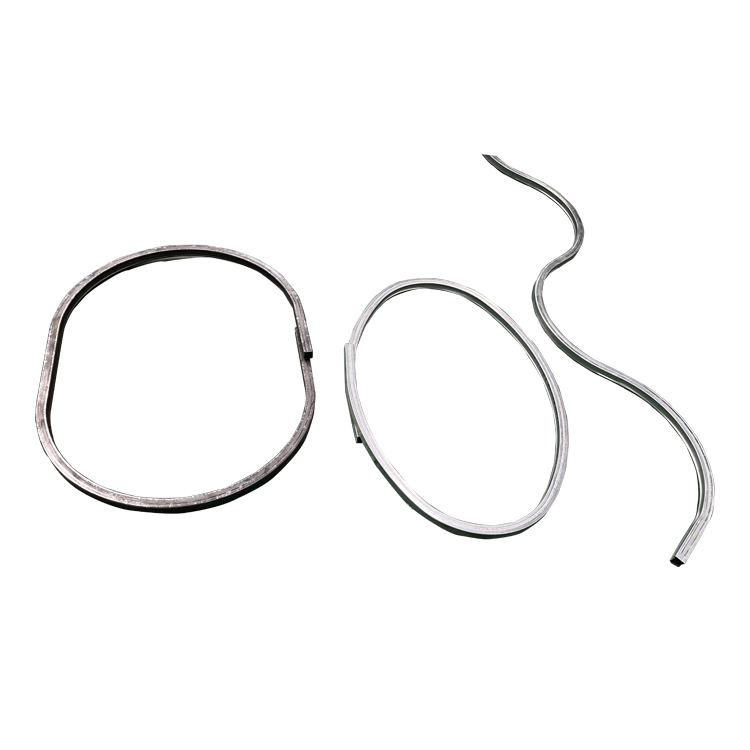

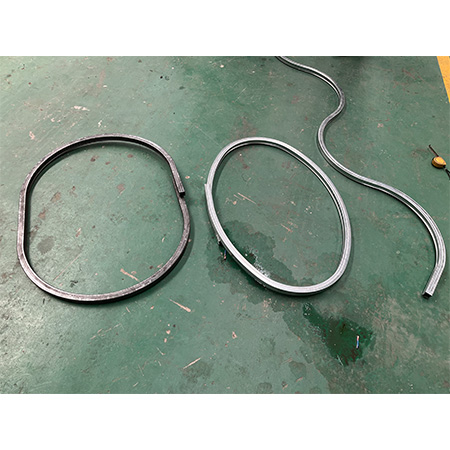

1. Bend the pipe into round or other curved shape, suitable for structures with large bending radius.

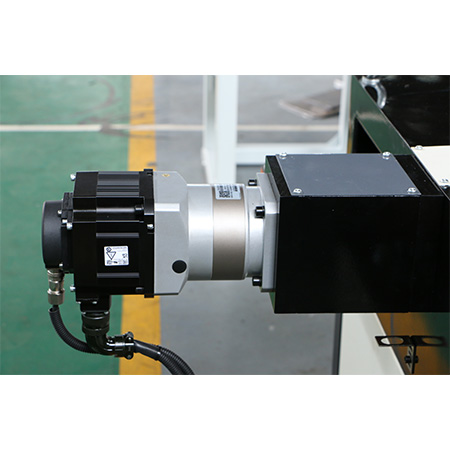

2. Servo motor/hydraulic feeding is optional. Applicable to different precision product requirements to meet a variety of customers.

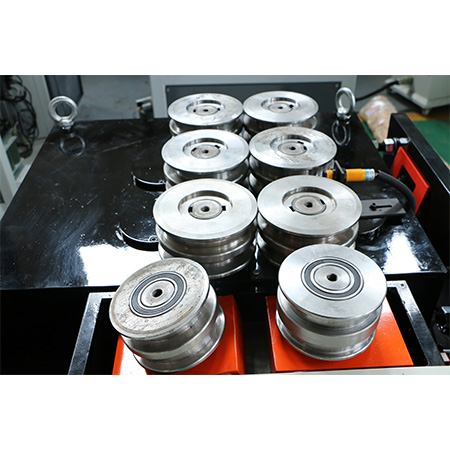

3. Customised moulds are available for different materials, such as stainless steel pipe, aluminium alloy pipe, copper pipe, etc.

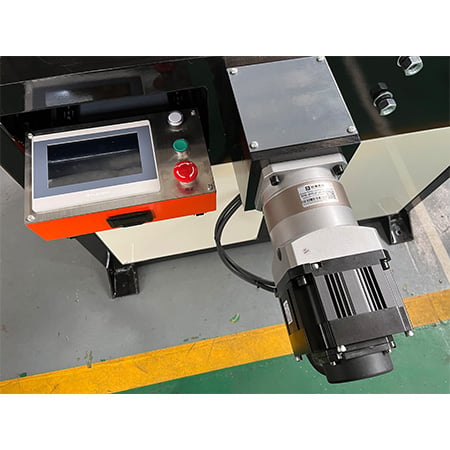

4. Simple operation, no need for operation experience, support multi-language display.
