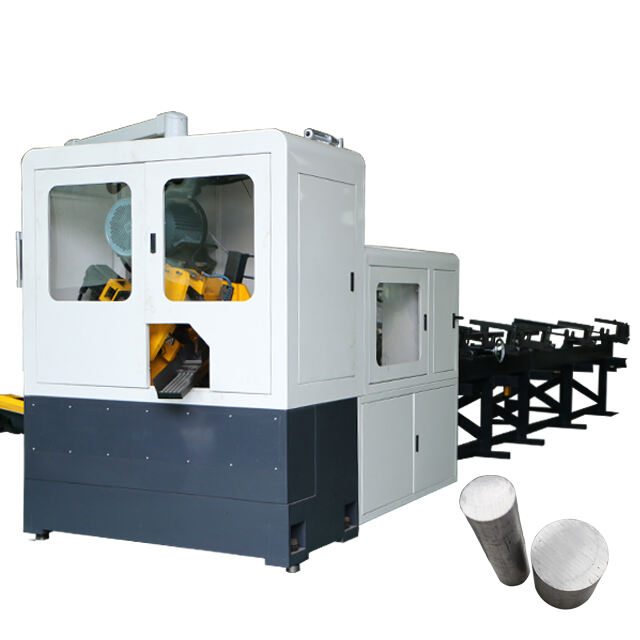

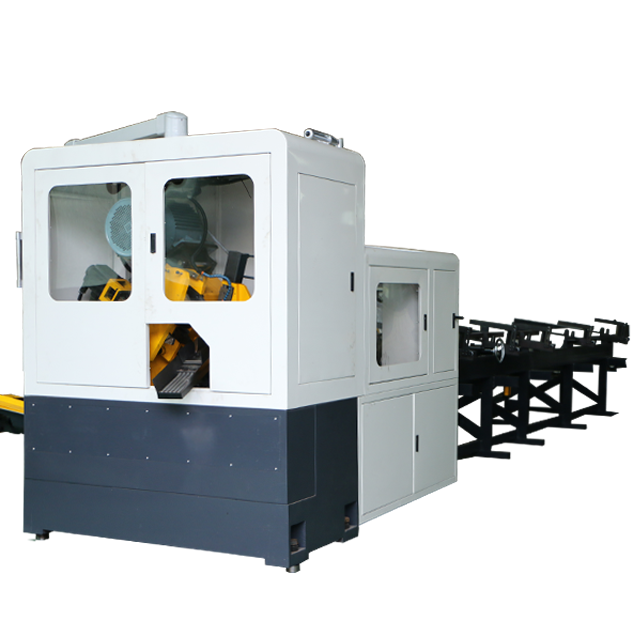

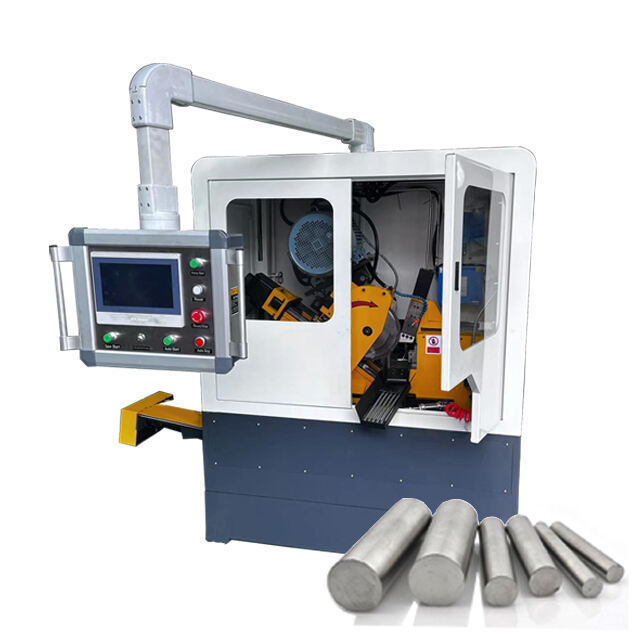

Pipe Cutting\Automatic high-speed MC-70CNC metal circular sawing machine

Product Description
Item Name Data
1 Max Cutting diameter 70mm
2 Min Cutting thickness 10mm
3 TCT saw blade 250mm×2.0;285mm×2.0;
4 Machine head motor 7.5KW(4P)
5 Shaft rotary speed 30-150RPM
6 Knife feeding Servo motor
7 Knife feedding speed 0-80mm/s
8 Knife return speed 100mm/s
9 Feeding speed 300-500mm/s
10 Cutting length 8-600mm
11 Feeding rack 3500~600mm
12 Control PLC
13 Rack bearing weight 3500kgs
14 Machine weight 4500kgs

Performance features
High quality castings are used on the bed to improve the accuracy and smoothness and durability of the equipment.
Innovative gearbox design, so that the gearbox can reach zero clearance transmission and improve saw blade life.
The equipment has automatic feeding, feeding and separating, saving labor.
The equipment has manual, semi-automatic and fulling automatic operation modes.
The accuracy of sawing length is controlled around ±005mm.
