| Item | Name | Unit | Data | Remark | ||
| 1 | Max bending capacity | mm | Round pipe | Φ63×3 | ||
| Square pipe | Φ44×44×3 | |||||
| 2 | Max bending radius | mm | 250 | Can according to customer’s requirement | ||
| 3 | Min bending radius | mm | Depend on the pipe diameter | |||
| 4 | Max feeding length | mm | 3200 | Can according to customer’s requirement | ||
| 5 | Max bending degree | Degree | 190 | |||
| 6 | Control Panel | touch screen | ||||
| 7 | Bending unit | piece | 16 | |||
| 8 | Working speed | bending speed | Deg/sec | 85 | ||
| Rotary speed | Deg/sec | 200 | Rotary fast will be dangerous | |||
| Feeding speed | mm/sec | 1000 | ||||
| 9 | Accuracy | feeding | mm | ±0.1 | ||
| rotary | Degree | ±0.1 | ||||
| bending | Degree | ±0.1 | ||||
| 10 | Rotary servo motor power | W | 750 | Japan Mitsubishi | ||

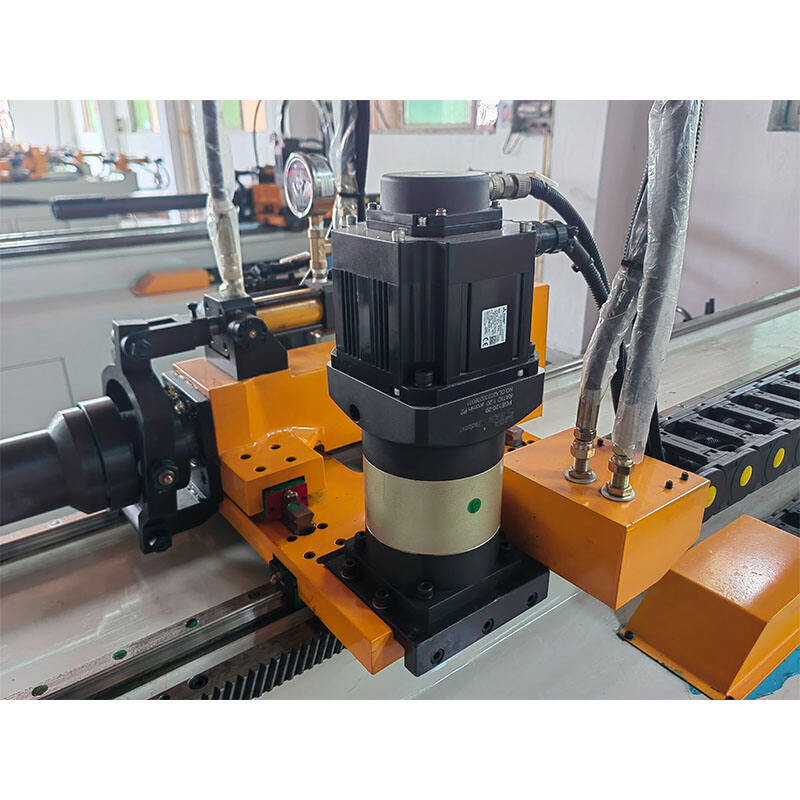

| 11 | Feeding servo motor power | Kw | 1 | Japan Mitsubishi | ||
| 12 | Bending servo motor power | Kw | 7 | Japan Mitsubishi | ||
| 13 | The accuracy of roller | mm | Max 70 | Can according to customer's requirement | ||
| 14 | Oil motor power | Kw | 5.5 | |||
| 15 | Max storage units | group | 1000 | Can enlarge according to requirement | ||
| 16 | Max pressure | MPa | 12 | Adjustable | ||
| 17 | Hydraulic control system | Magnetic exchange valve | Japan Yuken | |||
| 18 | Oil tank | L | 250 | |||
| 21 | Machine weight | Kg | 3000 | |||
| 22 | Machine size | mm | 5200×1350×1560 | |||
| 24 | Delivery time | days | 30 days | |||
| 25 | Warranty time | month | 14 | |||

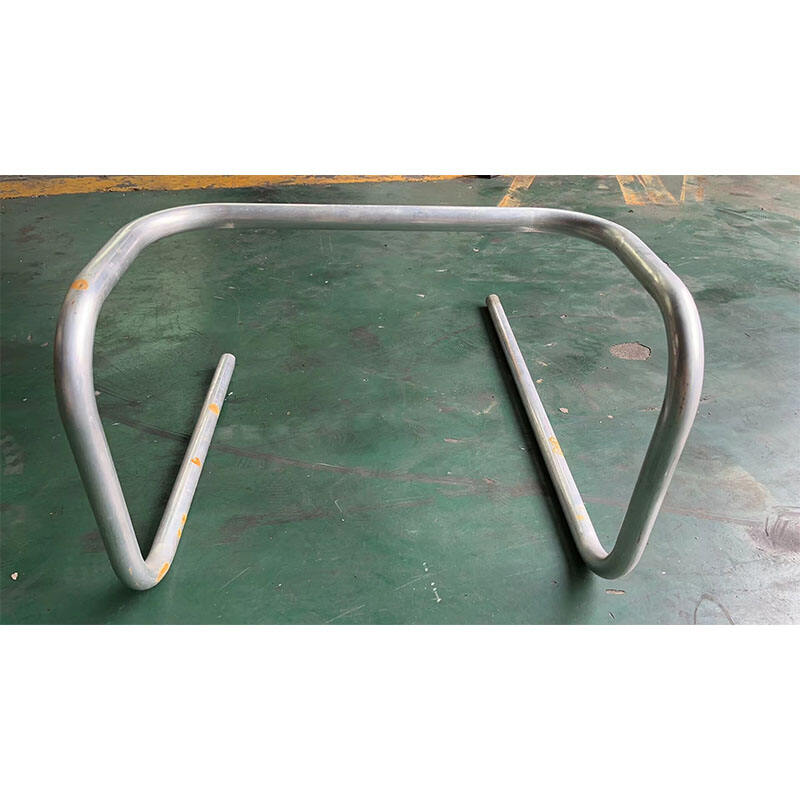

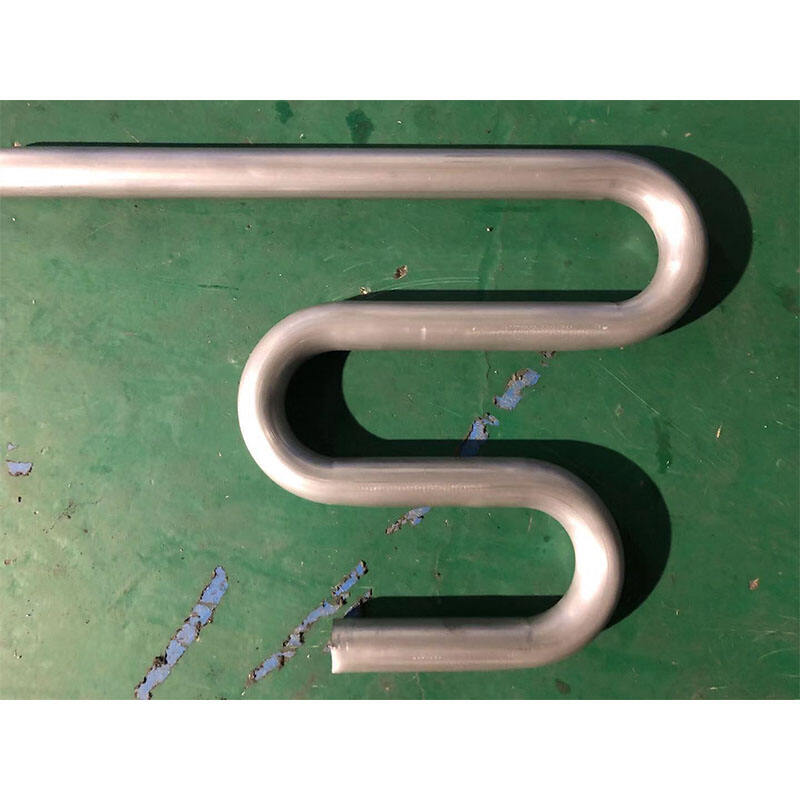

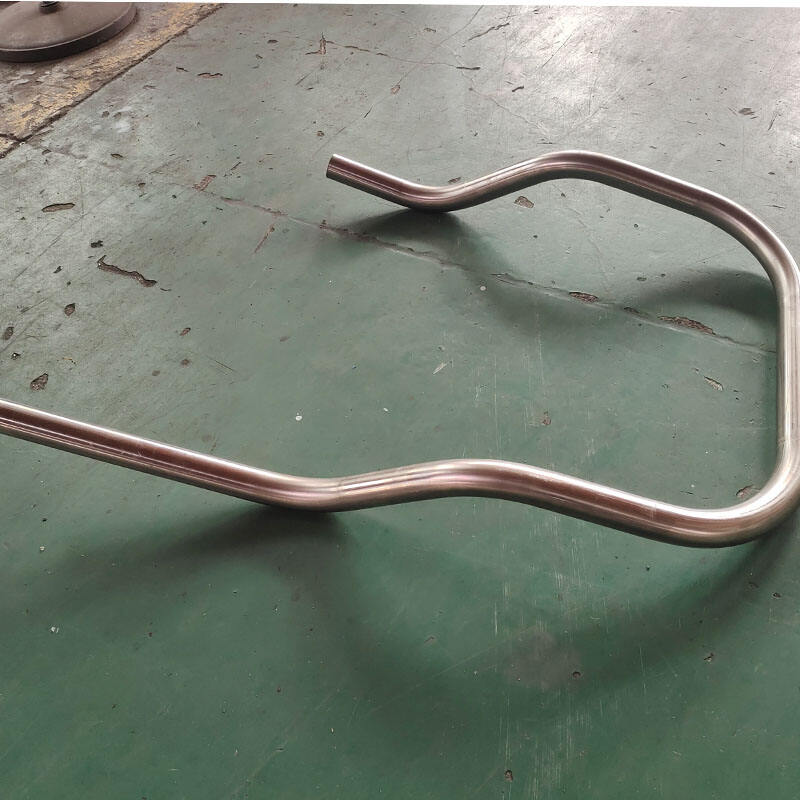

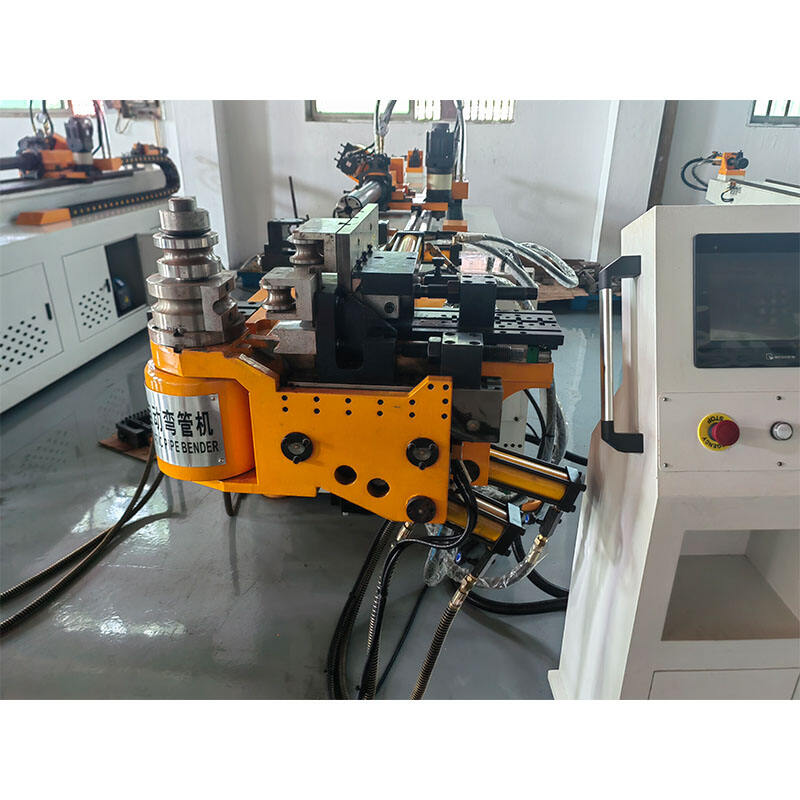

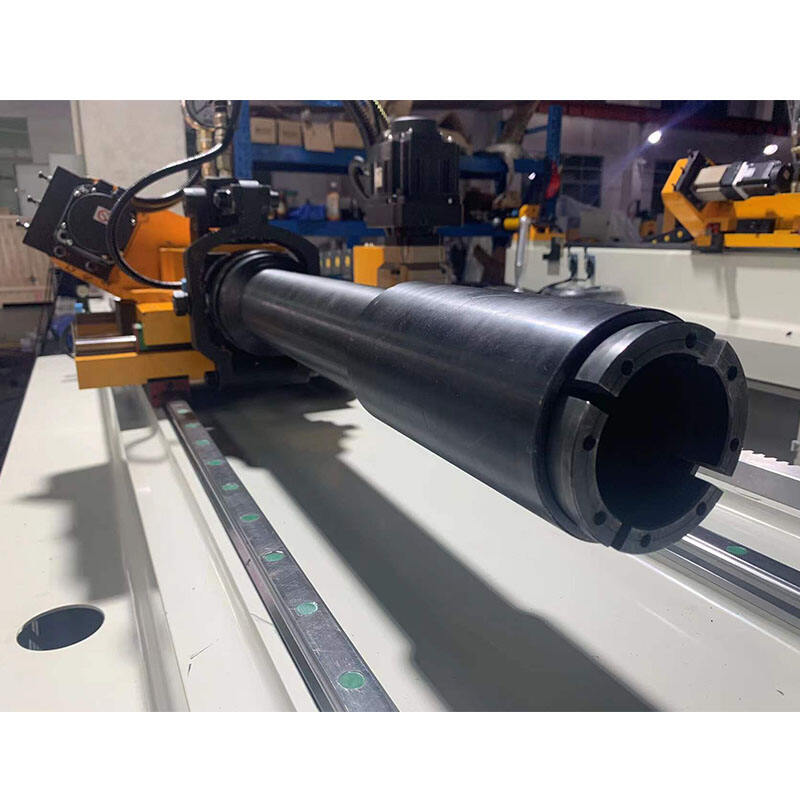

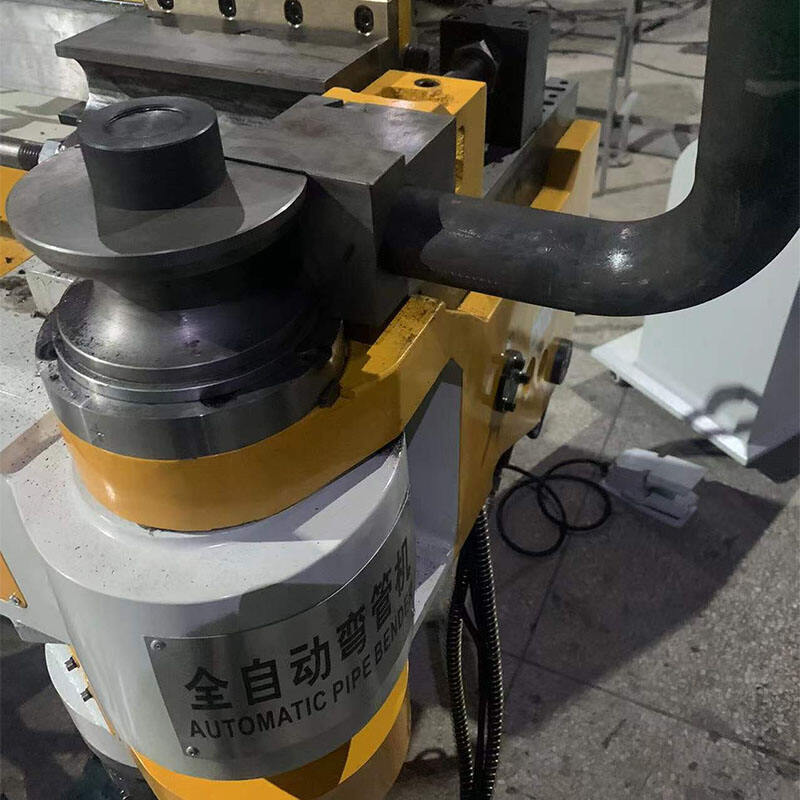

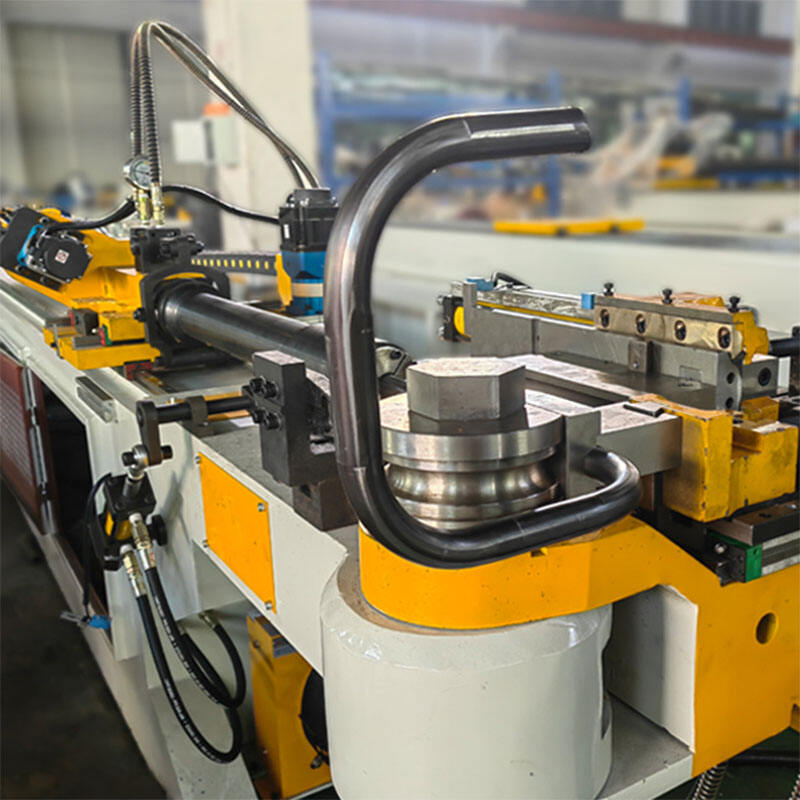

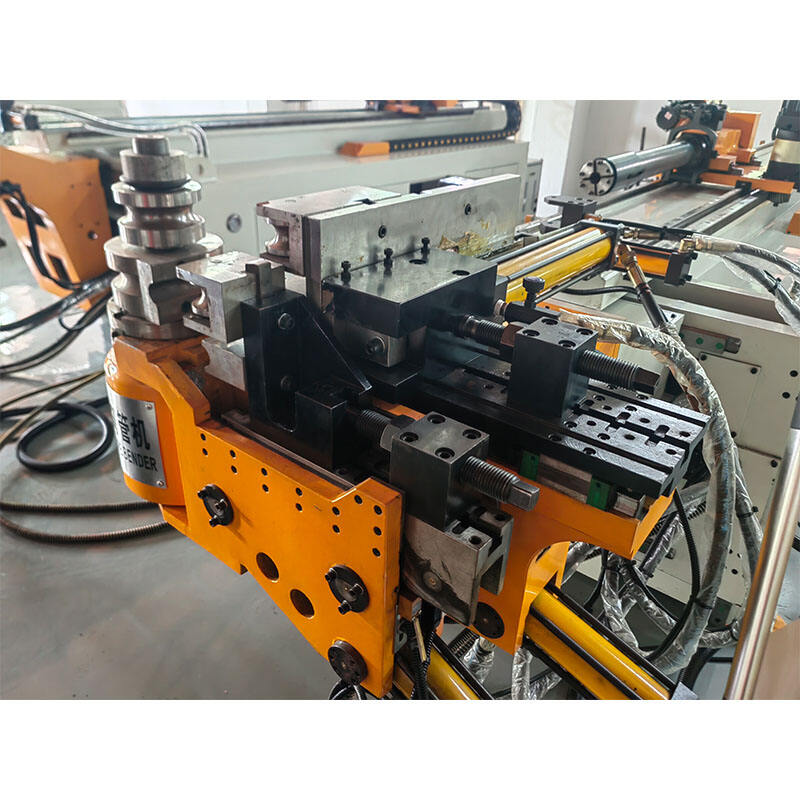

1.Fully automatic CNC tube bending machine, with PLC control system
2.servo for rotary, feeding, hydraulic bending. Touch screen panel display English and other language, have different bending degree prefabricate,dialogue operation, can choose manual , semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.
2.Multi axles working simultaneously.
3.One key back up of programs for USB or disk storage.
4.Security code for the protection the data setting and selected operation features.
5.Manual step by step teach code for interference solution
6.Diagnosis error immediately
7.To access to the history bending setting data to the facilitate study of malfunction with one set of tooling
8. All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
9. CNC fully automatic, have cubical space bending equipment, loading the whole bending process is automatic. The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
